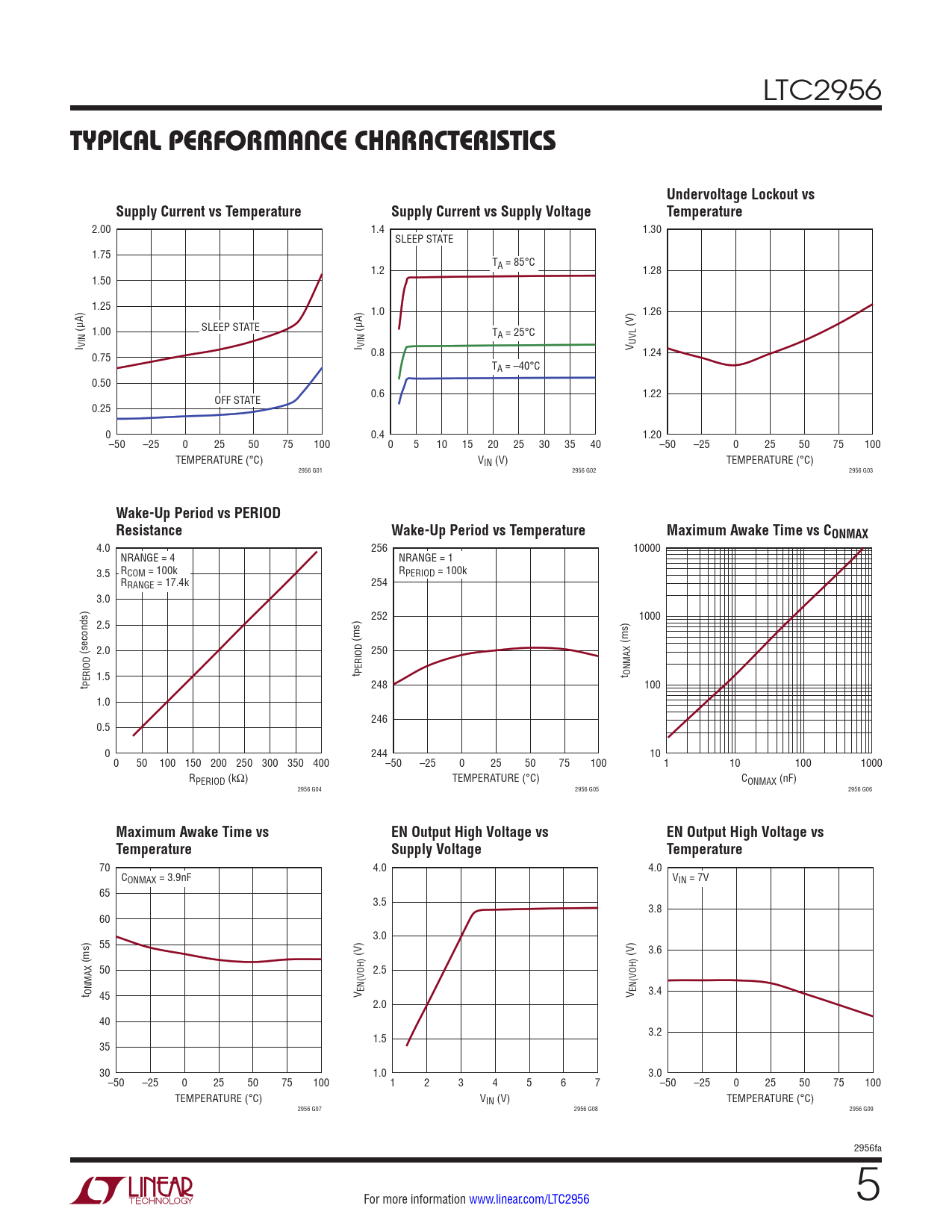

TYPICAL PERFORMANCE CHARACTERISTICS. Undervoltage Lockout vs. Supply Current vs Temperature. Supply Current vs Supply Voltage
