ADA4870-KGD. Known Good Die. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document

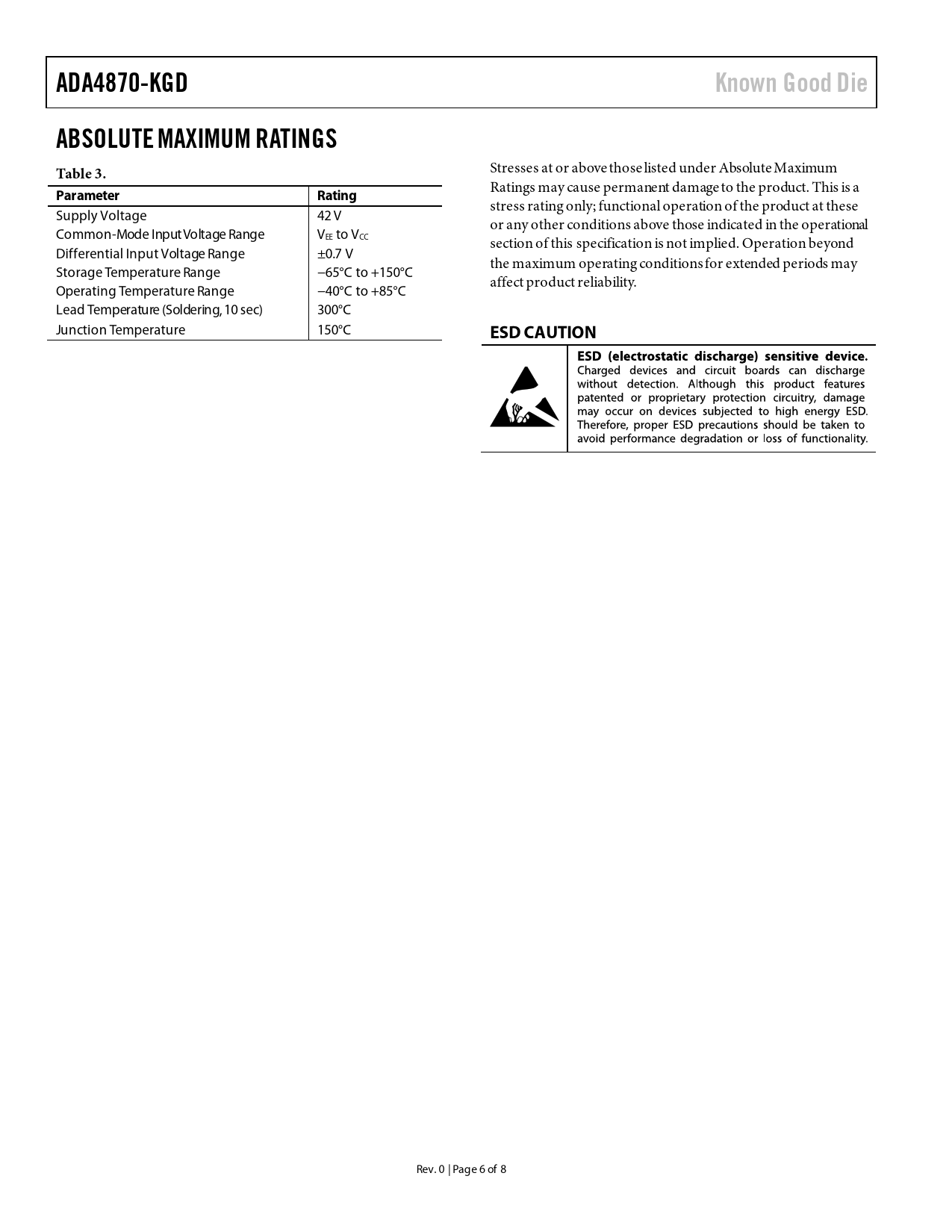

ADA4870-KGD Known Good Die ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Supply Voltage 42 V or any other conditions above those indicated in the operational Common-Mode Input Voltage Range VEE to VCC section of this specification is not implied. Operation beyond Differential Input Voltage Range ±0.7 V the maximum operating conditions for extended periods may Storage Temperature Range −65°C to +150°C affect product reliability. Operating Temperature Range −40°C to +85°C Lead Temperature (Soldering, 10 sec) 300°C Junction Temperature 150°C
ESD CAUTION
Rev. 0 | Page 6 of 8 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±20 V SUPPLY ±5 V SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
