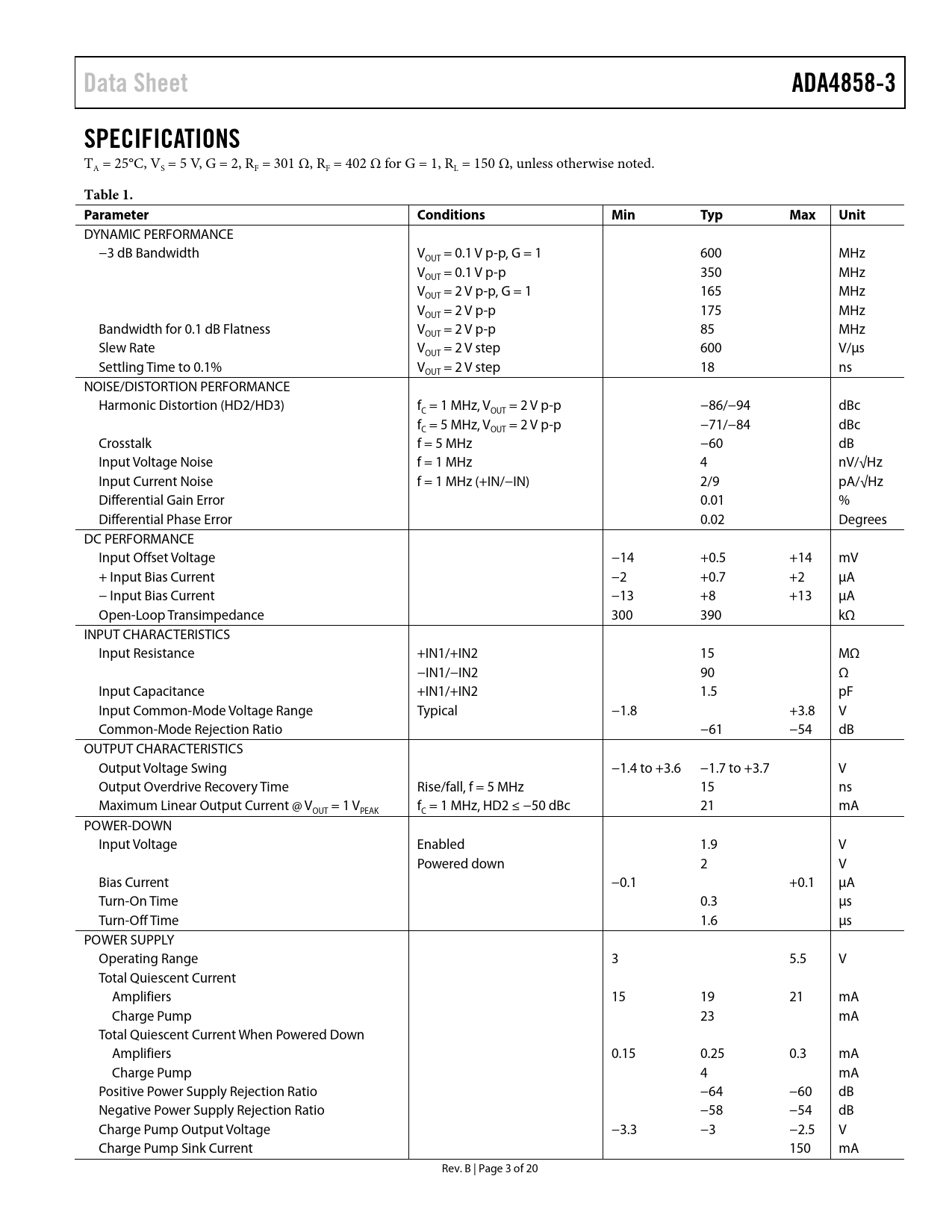

Data Sheet. ADA4858-3. SPECIFICATIONS. Table 1. Parameter. Conditions. Min. Typ. Max. Unit
Text Version of Document
Data Sheet ADA4858-3 SPECIFICATIONS
TA = 25°C, VS = 5 V, G = 2, RF = 301 Ω, RF = 402 Ω for G = 1, RL = 150 Ω, unless otherwise noted.
Table 1. Parameter Conditions Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Bandwidth V = 0.1 V p-p, G = 1 600 MHz OUT V = 0.1 V p-p 350 MHz OUT V = 2 V p-p, G = 1 165 MHz OUT V = 2 V p-p 175 MHz OUT Bandwidth for 0.1 dB Flatness V = 2 V p-p 85 MHz OUT Slew Rate V = 2 V step 600 V/µs OUT Settling Time to 0.1% V = 2 V step 18 ns OUT NOISE/DISTORTION PERFORMANCE Harmonic Distortion (HD2/HD3) f = 1 MHz, V = 2 V p-p −86/−94 dBc C OUT f = 5 MHz, V = 2 V p-p −71/−84 dBc C OUT Crosstalk f = 5 MHz −60 dB Input Voltage Noise f = 1 MHz 4 nV/√Hz Input Current Noise f = 1 MHz (+IN/−IN) 2/9 pA/√Hz Differential Gain Error 0.01 % Differential Phase Error 0.02 Degrees DC PERFORMANCE Input Offset Voltage −14 +0.5 +14 mV + Input Bias Current −2 +0.7 +2 µA − Input Bias Current −13 +8 +13 µA Open-Loop Transimpedance 300 390 kΩ INPUT CHARACTERISTICS Input Resistance +IN1/+IN2 15 MΩ −IN1/−IN2 90 Ω Input Capacitance +IN1/+IN2 1.5 pF Input Common-Mode Voltage Range Typical −1.8 +3.8 V Common-Mode Rejection Ratio −61 −54 dB OUTPUT CHARACTERISTICS Output Voltage Swing −1.4 to +3.6 −1.7 to +3.7 V Output Overdrive Recovery Time Rise/fall, f = 5 MHz 15 ns Maximum Linear Output Current @ V = 1 V f = 1 MHz, HD2 ≤ −50 dBc 21 mA OUT PEAK C POWER-DOWN Input Voltage Enabled 1.9 V Powered down 2 V Bias Current −0.1 +0.1 µA Turn-On Time 0.3 µs Turn-Off Time 1.6 µs POWER SUPPLY Operating Range 3 5.5 V Total Quiescent Current Amplifiers 15 19 21 mA Charge Pump 23 mA Total Quiescent Current When Powered Down Amplifiers 0.15 0.25 0.3 mA Charge Pump 4 mA Positive Power Supply Rejection Ratio −64 −60 dB Negative Power Supply Rejection Ratio −58 −54 dB Charge Pump Output Voltage −3.3 −3 −2.5 V Charge Pump Sink Current 150 mA Rev. B | Page 3 of 20 Document Outline Features Applications General Description Connection Diagram Table of Contents Revision History Specifications Absolute Maximum Ratings Maximum Power Dissipation ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Overview Charge Pump Operation Applications Information Gain Configurations DC-Coupled Video Signal Multiple Video Driver DC Restore Function Clamp Amplifier PD (Power-Down) Pin Power Supply Bypassing Layout Outline Dimensions Ordering Guide
