Datasheet ISL28130, ISL28230, ISL28430 (Intersil) - 3

Manufacturer	Intersil
Description	Single, Dual, and Quad Micropower, Low Drift, RRIO Operational Amplifiers
Pages / Page	19 / 3 — OUT 1. 5 V+. V- 2. IN-. IN+ 3. 4 IN-. IN+. OUT. IN+ 1. OUT_A. IN-_A. …
Revision	2017-11-07
File Format / Size	PDF / 1.3 Mb
Document Language	English

OUT 1. 5 V+. V- 2. IN-. IN+ 3. 4 IN-. IN+. OUT. IN+ 1. OUT_A. IN-_A. OUT_B. IN- 3. 4 OUT. IN+_A. IN-_B. IN+_B. OUT_A 1. 8 V+. 14 OUT_D. IN-_A 2. 7 OUT_B. 13 IN-_D

1 2

4 5

...

1 2

4 5

...

Model Line for this Datasheet

ISL28130

ISL28130CEZ-T7 ISL28130CEZ-T7A ISL28130CHZ-T7 ISL28130CHZ-T7A ISL28130FEZ-T7 ISL28130FEZ-T7A ISL28130FHZ-T7 ISL28130FHZ-T7A

ISL28230

ISL28230CBZ ISL28230CBZ-T7 ISL28230CBZ-T7A ISL28230CRZ ISL28230CRZ-T13 ISL28230CRZ-T7 ISL28230CRZ-T7A ISL28230CUZ ISL28230CUZ-T7 ISL28230CUZ-T7A ISL28230FBZ ISL28230FBZ-T13 ISL28230FBZ-T7 ISL28230FBZ-T7A ISL28230FRZ ISL28230FRZ-T13 ISL28230FRZ-T7 ISL28230FRZ-T7A ISL28230FUZ ISL28230FUZ-T7 ISL28230FUZ-T7A

ISL28430

ISL28430CBZ ISL28430CBZ-T7 ISL28430CBZ-T7A ISL28430CVZ ISL28430CVZ-T13 ISL28430CVZ-T7A ISL28430FBZ ISL28430FBZ-T13 ISL28430FBZ-T7 ISL28430FVZ ISL28430FVZ-T13 ISL28430FVZ-T7 ISL28430FVZ-T7A

Text Version of Document

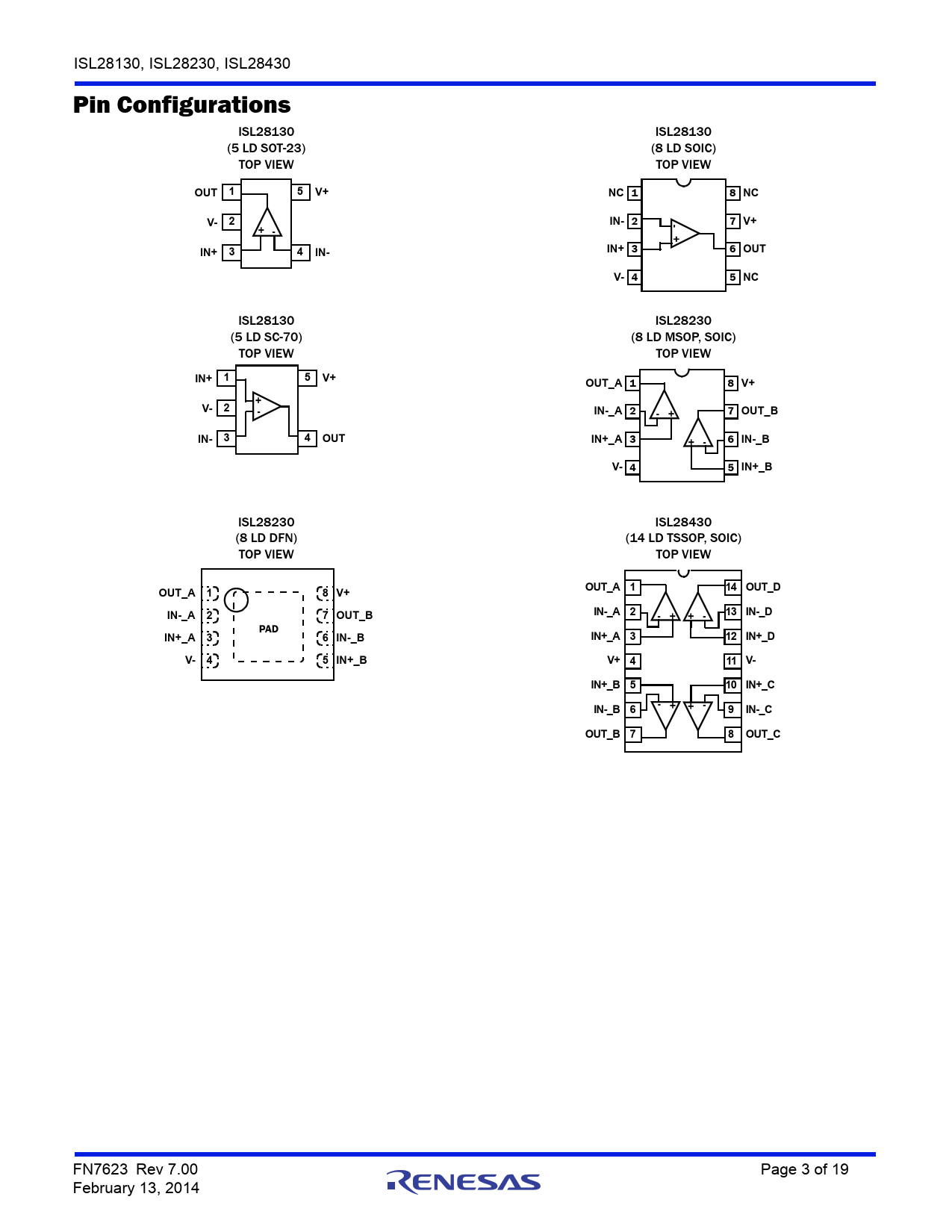

ISL28130, ISL28230, ISL28430 Pin Configurations ISL28130 ISL28130 (5 LD SOT-23) (8 LD SOIC) TOP VIEW TOP VIEW
OUT 1 5 V+ NC
1 8
NC V- 2 IN-
2 - 7
V+
+ - +
IN+ 3 4 IN- IN+
3 6
OUT V-
4 5
NC
ISL28130 ISL28230 (5 LD SC-70) (8 LD MSOP, SOIC) TOP VIEW TOP VIEW
IN+ 1 5 V+ OUT_A
1 8
V+
+
V- 2
-
IN-_A
2 7
OUT_B
- +
IN- 3 4 OUT IN+_A
3 6
IN-_B
+ -
V-
4 5
IN+_B
ISL28230 ISL28430 (8 LD DFN) (14 LD TSSOP, SOIC) TOP VIEW TOP VIEW
OUT_A 1 8 V+ OUT_A 1 14 OUT_D IN-_A 2 7 OUT_B IN-_A 2 13 IN-_D
- + + - PAD
IN+_A 3 6 IN-_B IN+_A 3 12 IN+_D V- 4 5 IN+_B V+ 4 11 V- IN+_B 5 10 IN+_C
- + + -
IN-_B 6 9 IN-_C OUT_B 7 8 OUT_C
FN7623 Rev 7.00 Page 3 of 19 February 13, 2014
