Datasheet ADXL377 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Small, Low Power, 3-Axis ±200 g Accelerometer |
| Pages / Page | 13 / 5 — ADXL377. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. ESD CAUTION. … |
| Revision | B |
| File Format / Size | PDF / 317 Kb |
| Document Language | English |

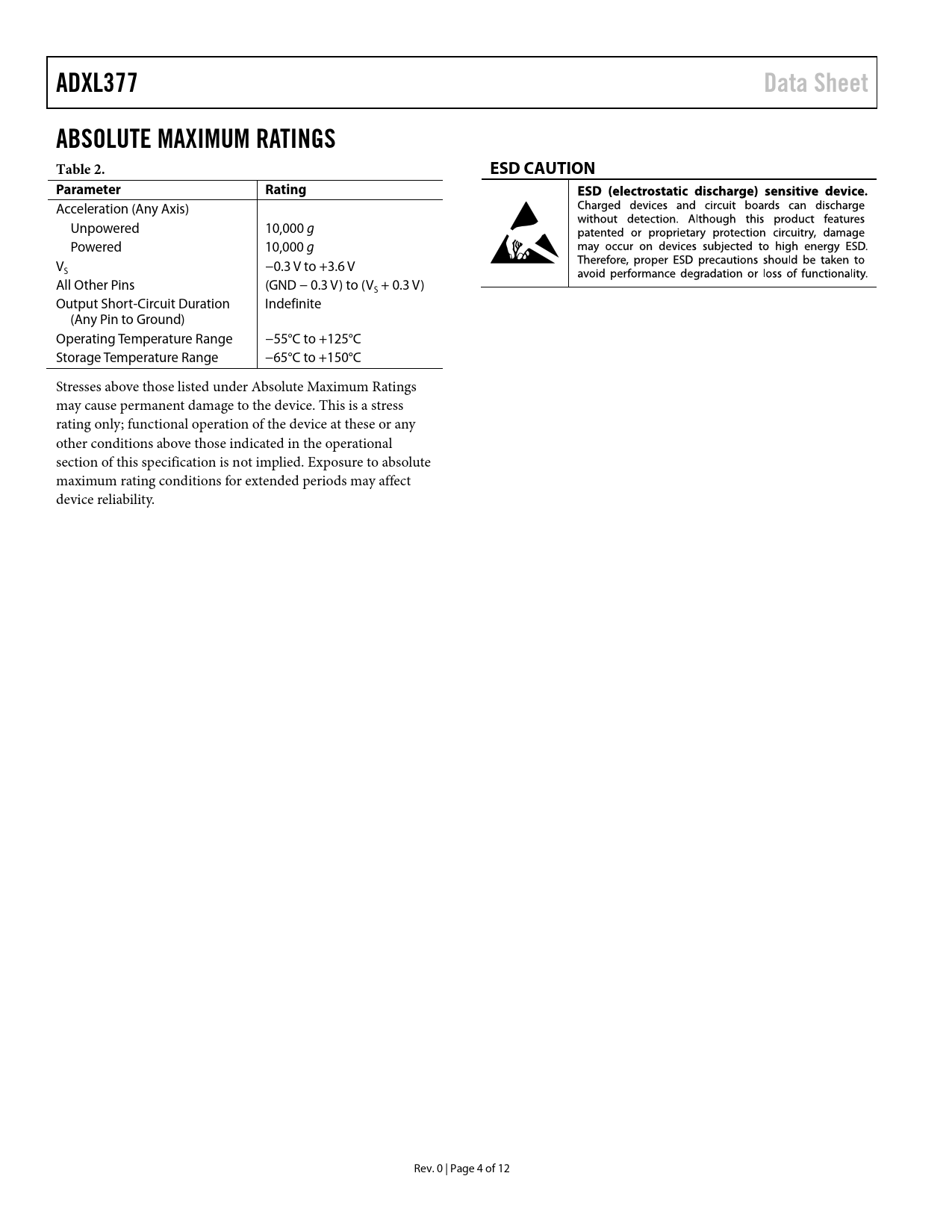

ADXL377. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. ESD CAUTION. Parameter. Rating
Model Line for this Datasheet
Text Version of Document
ADXL377 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2. ESD CAUTION Parameter Rating
Acceleration (Any Axis) Unpowered 10,000 g Powered 10,000 g V −0.3 V to +3.6 V S All Other Pins (GND − 0.3 V) to (V + 0.3 V) S Output Short-Circuit Duration Indefinite (Any Pin to Ground) Operating Temperature Range −55°C to +125°C Storage Temperature Range −65°C to +150°C Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. 0 | Page 4 of 12 Document Outline Features Applications General Description Functional Block Diagram Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Mechanical Sensor Performance Applications Information Power Supply Decoupling Setting the Bandwidth Using CX, CY, and CZ Self-Test Selecting Filter Characteristics: Noise/Bandwidth Trade-Off Axes of Acceleration Sensitivity Layout and Design Recommendations Outline Dimensions Ordering Guide
