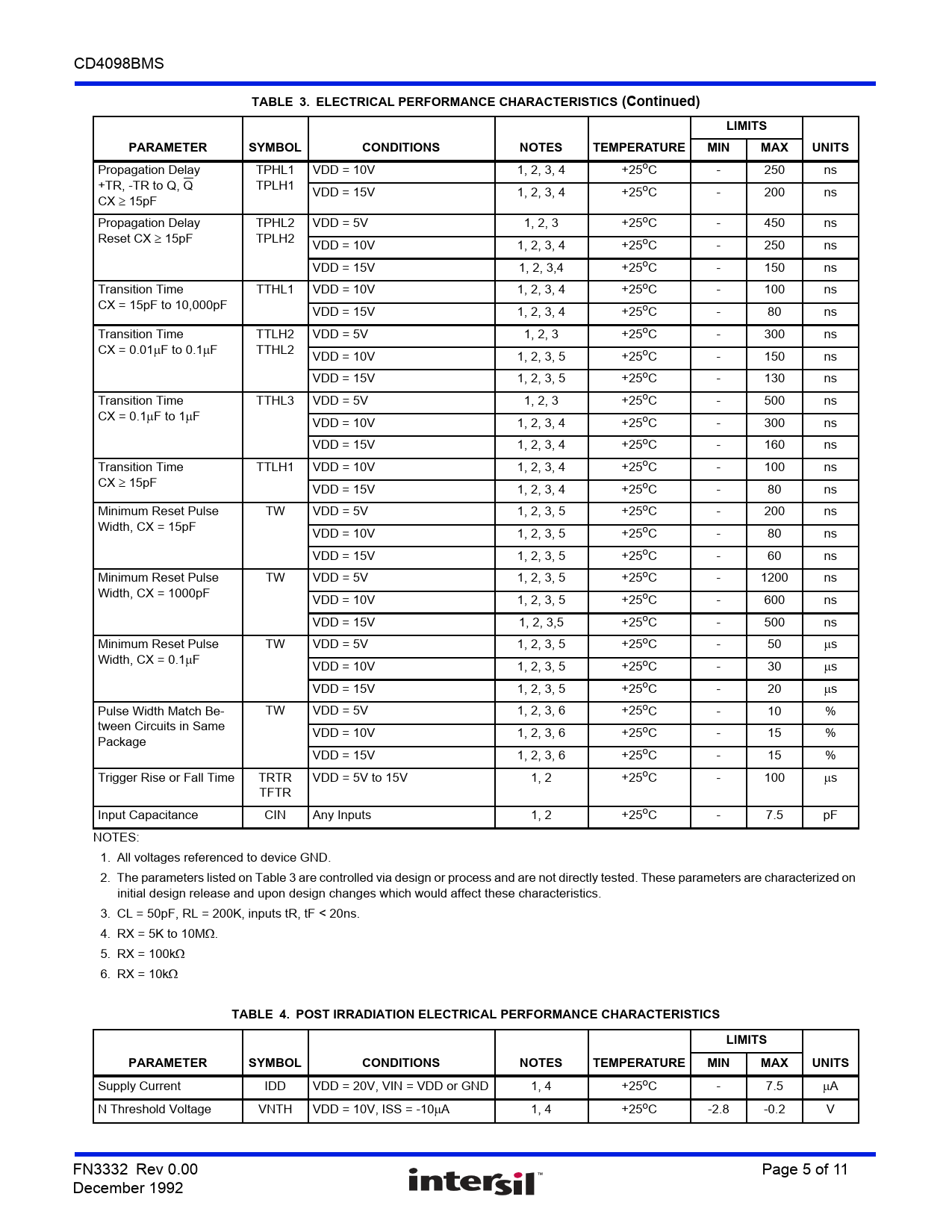

TABLE 3. ELECTRICAL PERFORMANCE CHARACTERISTICS (Continued). LIMITS. PARAMETER. SYMBOL. CONDITIONS. NOTES. TEMPERATURE. MIN. MAX. UNITS
Model Line for this Datasheet
Text Version of Document
CD4098BMS
TABLE 3. ELECTRICAL PERFORMANCE CHARACTERISTICS (Continued) LIMITS PARAMETER SYMBOL CONDITIONS NOTES TEMPERATURE MIN MAX UNITS
Propagation Delay TPHL1 VDD = 10V 1, 2, 3, 4 +25oC - 250 ns +TR, -TR to Q, Q TPLH1 VDD = 15V 1, 2, 3, 4 +25oC - 200 ns CX 15pF Propagation Delay TPHL2 VDD = 5V 1, 2, 3 +25oC - 450 ns Reset CX 15pF TPLH2 VDD = 10V 1, 2, 3, 4 +25oC - 250 ns VDD = 15V 1, 2, 3,4 +25oC - 150 ns Transition Time TTHL1 VDD = 10V 1, 2, 3, 4 +25oC - 100 ns CX = 15pF to 10,000pF VDD = 15V 1, 2, 3, 4 +25oC - 80 ns Transition Time TTLH2 VDD = 5V 1, 2, 3 +25oC - 300 ns CX = 0.01F to 0.1F TTHL2 VDD = 10V 1, 2, 3, 5 +25oC - 150 ns VDD = 15V 1, 2, 3, 5 +25oC - 130 ns Transition Time TTHL3 VDD = 5V 1, 2, 3 +25oC - 500 ns CX = 0.1F to 1F VDD = 10V 1, 2, 3, 4 +25oC - 300 ns VDD = 15V 1, 2, 3, 4 +25oC - 160 ns Transition Time TTLH1 VDD = 10V 1, 2, 3, 4 +25oC - 100 ns CX 15pF VDD = 15V 1, 2, 3, 4 +25oC - 80 ns Minimum Reset Pulse TW VDD = 5V 1, 2, 3, 5 +25oC - 200 ns Width, CX = 15pF VDD = 10V 1, 2, 3, 5 +25oC - 80 ns VDD = 15V 1, 2, 3, 5 +25oC - 60 ns Minimum Reset Pulse TW VDD = 5V 1, 2, 3, 5 +25oC - 1200 ns Width, CX = 1000pF VDD = 10V 1, 2, 3, 5 +25oC - 600 ns VDD = 15V 1, 2, 3,5 +25oC - 500 ns Minimum Reset Pulse TW VDD = 5V 1, 2, 3, 5 +25oC - 50 s Width, CX = 0.1F VDD = 10V 1, 2, 3, 5 +25oC - 30 s VDD = 15V 1, 2, 3, 5 +25oC - 20 s Pulse Width Match Be- TW VDD = 5V 1, 2, 3, 6 +25oC - 10 % tween Circuits in Same VDD = 10V 1, 2, 3, 6 +25oC - 15 % Package VDD = 15V 1, 2, 3, 6 +25oC - 15 % Trigger Rise or Fall Time TRTR VDD = 5V to 15V 1, 2 +25oC - 100 s TFTR Input Capacitance CIN Any Inputs 1, 2 +25oC - 7.5 pF NOTES: 1. All voltages referenced to device GND. 2. The parameters listed on Table 3 are controlled via design or process and are not directly tested. These parameters are characterized on initial design release and upon design changes which would affect these characteristics. 3. CL = 50pF, RL = 200K, inputs tR, tF < 20ns. 4. RX = 5K to 10M. 5. RX = 100k 6. RX = 10k
TABLE 4. POST IRRADIATION ELECTRICAL PERFORMANCE CHARACTERISTICS LIMITS PARAMETER SYMBOL CONDITIONS NOTES TEMPERATURE MIN MAX UNITS
Supply Current IDD VDD = 20V, VIN = VDD or GND 1, 4 +25oC - 7.5 A N Threshold Voltage VNTH VDD = 10V, ISS = -10A 1, 4 +25oC -2.8 -0.2 V FN3332 Rev 0.00 Page 5 of 11 December 1992
TABLE 3. ELECTRICAL PERFORMANCE CHARACTERISTICS (Continued) LIMITS PARAMETER SYMBOL CONDITIONS NOTES TEMPERATURE MIN MAX UNITS
Propagation Delay TPHL1 VDD = 10V 1, 2, 3, 4 +25oC - 250 ns +TR, -TR to Q, Q TPLH1 VDD = 15V 1, 2, 3, 4 +25oC - 200 ns CX 15pF Propagation Delay TPHL2 VDD = 5V 1, 2, 3 +25oC - 450 ns Reset CX 15pF TPLH2 VDD = 10V 1, 2, 3, 4 +25oC - 250 ns VDD = 15V 1, 2, 3,4 +25oC - 150 ns Transition Time TTHL1 VDD = 10V 1, 2, 3, 4 +25oC - 100 ns CX = 15pF to 10,000pF VDD = 15V 1, 2, 3, 4 +25oC - 80 ns Transition Time TTLH2 VDD = 5V 1, 2, 3 +25oC - 300 ns CX = 0.01F to 0.1F TTHL2 VDD = 10V 1, 2, 3, 5 +25oC - 150 ns VDD = 15V 1, 2, 3, 5 +25oC - 130 ns Transition Time TTHL3 VDD = 5V 1, 2, 3 +25oC - 500 ns CX = 0.1F to 1F VDD = 10V 1, 2, 3, 4 +25oC - 300 ns VDD = 15V 1, 2, 3, 4 +25oC - 160 ns Transition Time TTLH1 VDD = 10V 1, 2, 3, 4 +25oC - 100 ns CX 15pF VDD = 15V 1, 2, 3, 4 +25oC - 80 ns Minimum Reset Pulse TW VDD = 5V 1, 2, 3, 5 +25oC - 200 ns Width, CX = 15pF VDD = 10V 1, 2, 3, 5 +25oC - 80 ns VDD = 15V 1, 2, 3, 5 +25oC - 60 ns Minimum Reset Pulse TW VDD = 5V 1, 2, 3, 5 +25oC - 1200 ns Width, CX = 1000pF VDD = 10V 1, 2, 3, 5 +25oC - 600 ns VDD = 15V 1, 2, 3,5 +25oC - 500 ns Minimum Reset Pulse TW VDD = 5V 1, 2, 3, 5 +25oC - 50 s Width, CX = 0.1F VDD = 10V 1, 2, 3, 5 +25oC - 30 s VDD = 15V 1, 2, 3, 5 +25oC - 20 s Pulse Width Match Be- TW VDD = 5V 1, 2, 3, 6 +25oC - 10 % tween Circuits in Same VDD = 10V 1, 2, 3, 6 +25oC - 15 % Package VDD = 15V 1, 2, 3, 6 +25oC - 15 % Trigger Rise or Fall Time TRTR VDD = 5V to 15V 1, 2 +25oC - 100 s TFTR Input Capacitance CIN Any Inputs 1, 2 +25oC - 7.5 pF NOTES: 1. All voltages referenced to device GND. 2. The parameters listed on Table 3 are controlled via design or process and are not directly tested. These parameters are characterized on initial design release and upon design changes which would affect these characteristics. 3. CL = 50pF, RL = 200K, inputs tR, tF < 20ns. 4. RX = 5K to 10M. 5. RX = 100k 6. RX = 10k
TABLE 4. POST IRRADIATION ELECTRICAL PERFORMANCE CHARACTERISTICS LIMITS PARAMETER SYMBOL CONDITIONS NOTES TEMPERATURE MIN MAX UNITS
Supply Current IDD VDD = 20V, VIN = VDD or GND 1, 4 +25oC - 7.5 A N Threshold Voltage VNTH VDD = 10V, ISS = -10A 1, 4 +25oC -2.8 -0.2 V FN3332 Rev 0.00 Page 5 of 11 December 1992
