Datasheet AD712-EP (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | Dual Precision, Low Cost, High Speed BiFET Op Amp |
| Pages / Page | 12 / 3 — Table 1. Parameter Min. Typ. Max. Unit |
| File Format / Size | PDF / 206 Kb |
| Document Language | English |
Table 1. Parameter Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document

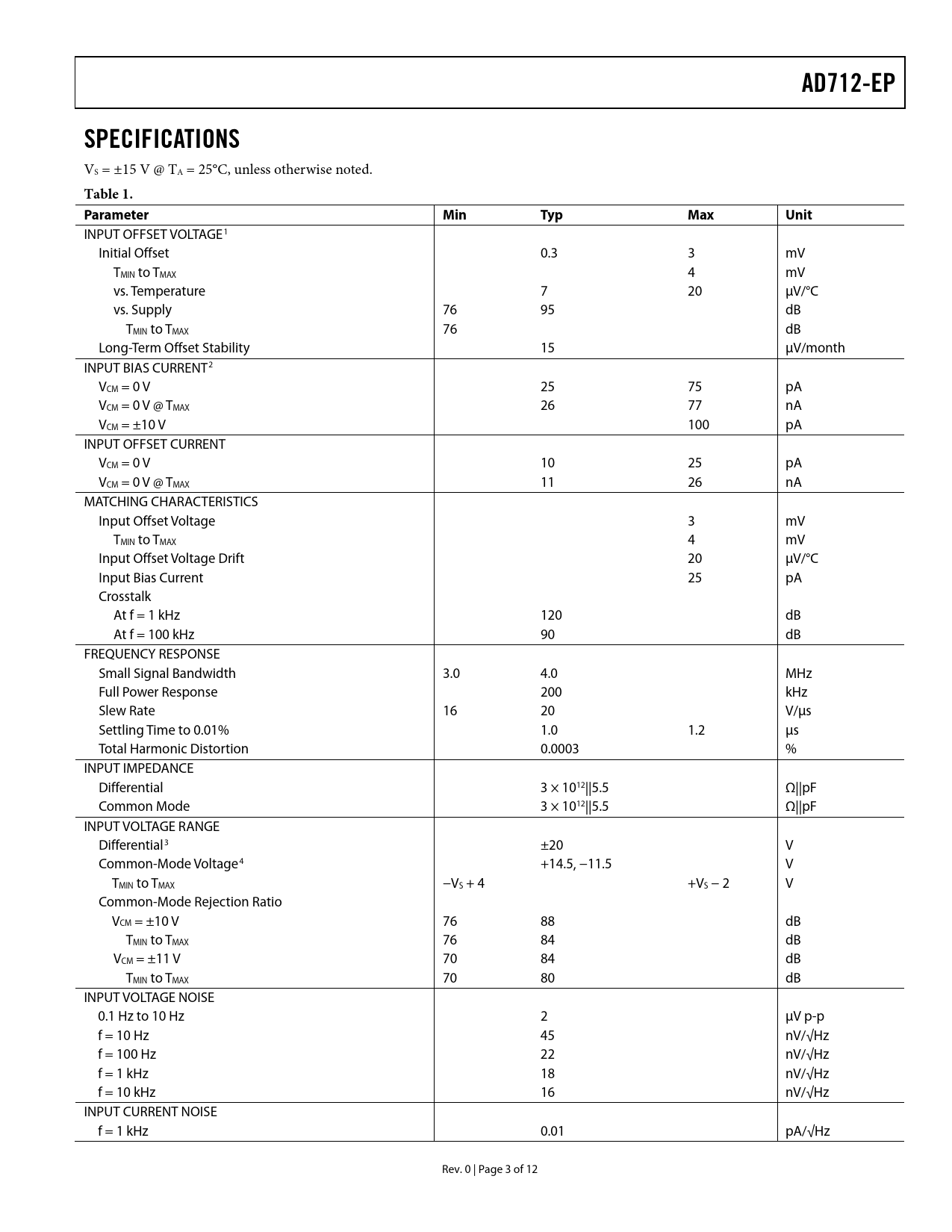

link to page 4 link to page 4 link to page 4 link to page 4 AD712-EP SPECIFICATIONS VS = ±15 V @ TA = 25°C, unless otherwise noted.
Table 1. Parameter Min Typ Max Unit
INPUT OFFSET VOLTAGE1 Initial Offset 0.3 3 mV TMIN to TMAX 4 mV vs. Temperature 7 20 μV/°C vs. Supply 76 95 dB TMIN to TMAX 76 dB Long-Term Offset Stability 15 μV/month INPUT BIAS CURRENT2 VCM = 0 V 25 75 pA VCM = 0 V @ TMAX 26 77 nA VCM = ±10 V 100 pA INPUT OFFSET CURRENT VCM = 0 V 10 25 pA VCM = 0 V @ TMAX 11 26 nA MATCHING CHARACTERISTICS Input Offset Voltage 3 mV TMIN to TMAX 4 mV Input Offset Voltage Drift 20 μV/°C Input Bias Current 25 pA Crosstalk At f = 1 kHz 120 dB At f = 100 kHz 90 dB FREQUENCY RESPONSE Small Signal Bandwidth 3.0 4.0 MHz Full Power Response 200 kHz Slew Rate 16 20 V/μs Settling Time to 0.01% 1.0 1.2 μs Total Harmonic Distortion 0.0003 % INPUT IMPEDANCE Differential 3 × 1012||5.5 Ω||pF Common Mode 3 × 1012||5.5 Ω||pF INPUT VOLTAGE RANGE Differential3 ±20 V Common-Mode Voltage4 +14.5, −11.5 V TMIN to TMAX −VS + 4 +VS − 2 V Common-Mode Rejection Ratio VCM = ±10 V 76 88 dB TMIN to TMAX 76 84 dB VCM = ±11 V 70 84 dB TMIN to TMAX 70 80 dB INPUT VOLTAGE NOISE 0.1 Hz to 10 Hz 2 μV p-p f = 10 Hz 45 nV/√Hz f = 100 Hz 22 nV/√Hz f = 1 kHz 18 nV/√Hz f = 10 kHz 16 nV/√Hz INPUT CURRENT NOISE f = 1 kHz 0.01 pA/√Hz Rev. 0 | Page 3 of 12 Document Outline FEATURES GENERAL DESCRIPTION CONNECTION DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
Table 1. Parameter Min Typ Max Unit
INPUT OFFSET VOLTAGE1 Initial Offset 0.3 3 mV TMIN to TMAX 4 mV vs. Temperature 7 20 μV/°C vs. Supply 76 95 dB TMIN to TMAX 76 dB Long-Term Offset Stability 15 μV/month INPUT BIAS CURRENT2 VCM = 0 V 25 75 pA VCM = 0 V @ TMAX 26 77 nA VCM = ±10 V 100 pA INPUT OFFSET CURRENT VCM = 0 V 10 25 pA VCM = 0 V @ TMAX 11 26 nA MATCHING CHARACTERISTICS Input Offset Voltage 3 mV TMIN to TMAX 4 mV Input Offset Voltage Drift 20 μV/°C Input Bias Current 25 pA Crosstalk At f = 1 kHz 120 dB At f = 100 kHz 90 dB FREQUENCY RESPONSE Small Signal Bandwidth 3.0 4.0 MHz Full Power Response 200 kHz Slew Rate 16 20 V/μs Settling Time to 0.01% 1.0 1.2 μs Total Harmonic Distortion 0.0003 % INPUT IMPEDANCE Differential 3 × 1012||5.5 Ω||pF Common Mode 3 × 1012||5.5 Ω||pF INPUT VOLTAGE RANGE Differential3 ±20 V Common-Mode Voltage4 +14.5, −11.5 V TMIN to TMAX −VS + 4 +VS − 2 V Common-Mode Rejection Ratio VCM = ±10 V 76 88 dB TMIN to TMAX 76 84 dB VCM = ±11 V 70 84 dB TMIN to TMAX 70 80 dB INPUT VOLTAGE NOISE 0.1 Hz to 10 Hz 2 μV p-p f = 10 Hz 45 nV/√Hz f = 100 Hz 22 nV/√Hz f = 1 kHz 18 nV/√Hz f = 10 kHz 16 nV/√Hz INPUT CURRENT NOISE f = 1 kHz 0.01 pA/√Hz Rev. 0 | Page 3 of 12 Document Outline FEATURES GENERAL DESCRIPTION CONNECTION DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
