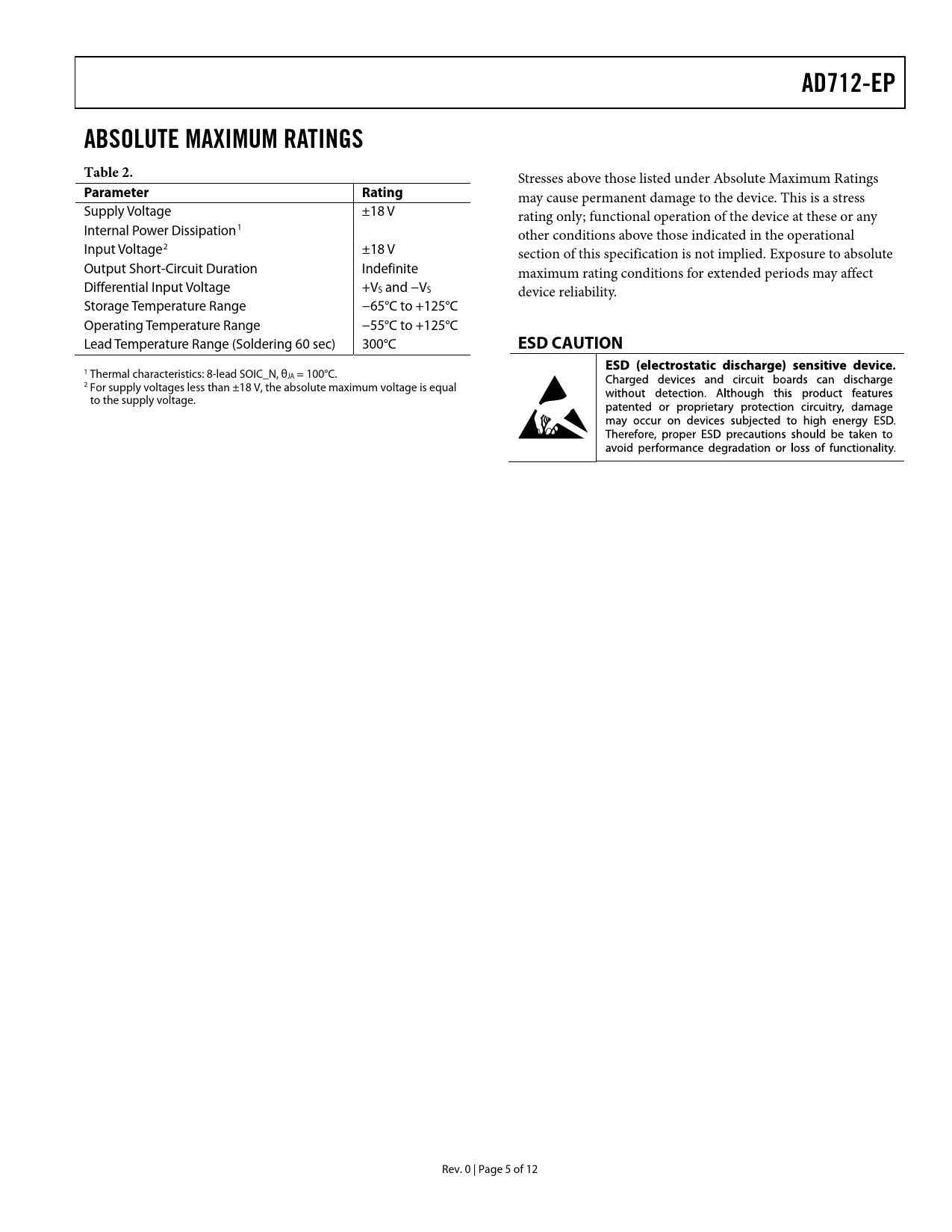

link to page 5 link to page 5 AD712-EP ABSOLUTE MAXIMUM RATINGS
Table 2.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage ±18 V rating only; functional operation of the device at these or any Internal Power Dissipation1 other conditions above those indicated in the operational Input Voltage2 ±18 V section of this specification is not implied. Exposure to absolute Output Short-Circuit Duration Indefinite maximum rating conditions for extended periods may affect Differential Input Voltage +VS and −VS device reliability. Storage Temperature Range −65°C to +125°C Operating Temperature Range −55°C to +125°C Lead Temperature Range (Soldering 60 sec) 300°C
ESD CAUTION
1 Thermal characteristics: 8-lead SOIC_N, θJA = 100°C. 2 For supply voltages less than ±18 V, the absolute maximum voltage is equal to the supply voltage. Rev. 0 | Page 5 of 12 Document Outline FEATURES GENERAL DESCRIPTION CONNECTION DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
