Datasheet AD712 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | Precision, Low Cost, High Speed, BiFET Dual Op Amp |
| Pages / Page | 11 / 2 — DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236. V62/11603 |
| Revision | A |
| File Format / Size | PDF / 76 Kb |
| Document Language | English |
DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236. V62/11603
Model Line for this Datasheet
Text Version of Document

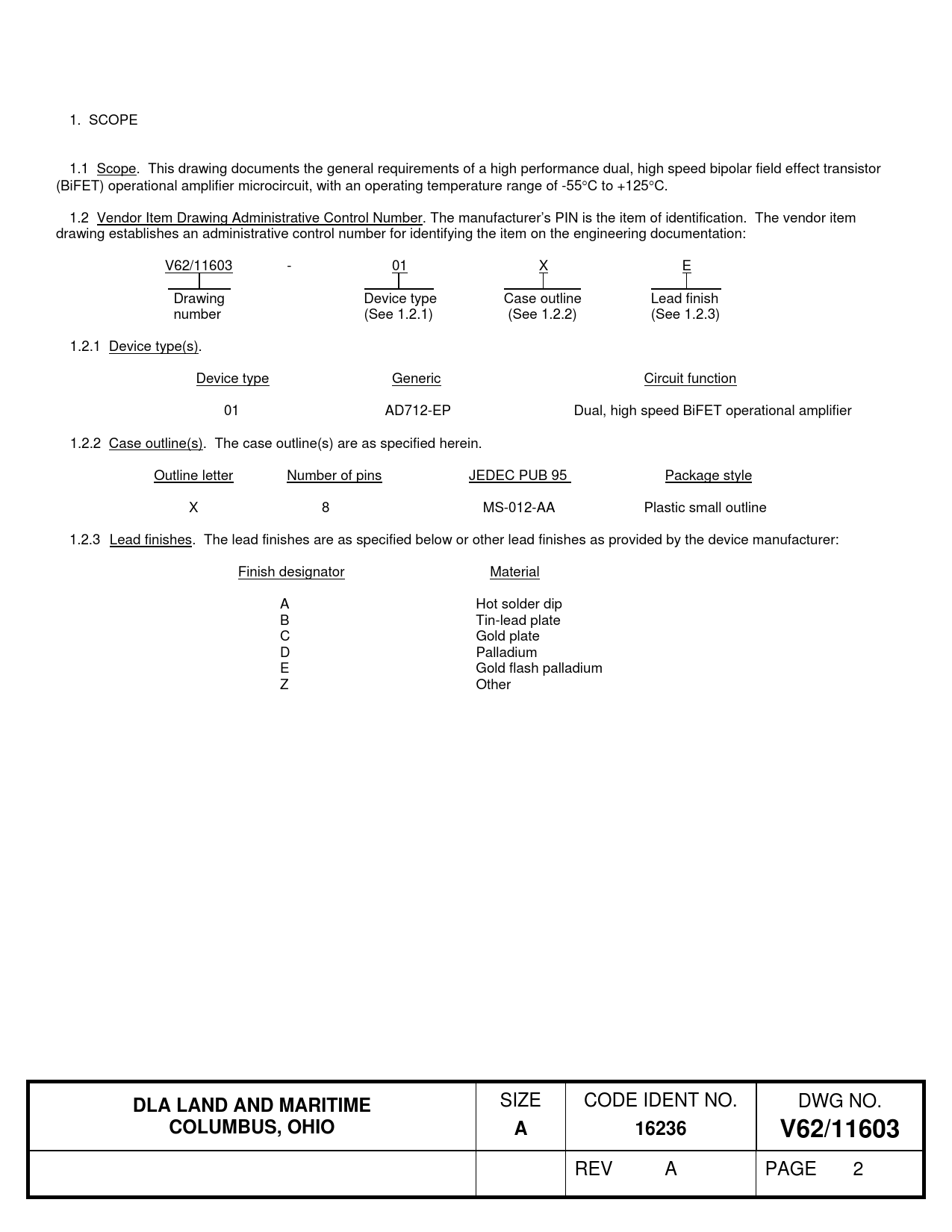

1. SCOPE
1.1 Scope. This drawing documents the general requirements of a high performance dual, high speed bipolar field effect transistor (BiFET) operational amplifier microcircuit, with an operating temperature range of -55C to +125C. 1.2 Vendor Item Drawing Administrative Control Number. The manufacturer’s PIN is the item of identification. The vendor item drawing establishes an administrative control number for identifying the item on the engineering documentation: V62/11603 - 01 X E Drawing Device type Case outline Lead finish number (See 1.2.1) (See 1.2.2) (See 1.2.3) 1.2.1 Device type(s).
Device type Generic Circuit function 01 AD712-EP Dual, high speed BiFET operational amplifier 1.2.2 Case outline(s). The case outline(s) are as specified herein. Outline letter Number of pins JEDEC PUB 95 Package style X 8 MS-012-AA Plastic small outline 1.2.3 Lead finishes. The lead finishes are as specified below or other lead finishes as provided by the device manufacturer: Finish designator Material A Hot solder dip B Tin-lead plate C Gold plate D Palladium E Gold flash palladium Z Other
DLA LAND AND MARITIME
SIZE
CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/11603
REV A PAGE 2
1.1 Scope. This drawing documents the general requirements of a high performance dual, high speed bipolar field effect transistor (BiFET) operational amplifier microcircuit, with an operating temperature range of -55C to +125C. 1.2 Vendor Item Drawing Administrative Control Number. The manufacturer’s PIN is the item of identification. The vendor item drawing establishes an administrative control number for identifying the item on the engineering documentation: V62/11603 - 01 X E Drawing Device type Case outline Lead finish number (See 1.2.1) (See 1.2.2) (See 1.2.3) 1.2.1 Device type(s).
Device type Generic Circuit function 01 AD712-EP Dual, high speed BiFET operational amplifier 1.2.2 Case outline(s). The case outline(s) are as specified herein. Outline letter Number of pins JEDEC PUB 95 Package style X 8 MS-012-AA Plastic small outline 1.2.3 Lead finishes. The lead finishes are as specified below or other lead finishes as provided by the device manufacturer: Finish designator Material A Hot solder dip B Tin-lead plate C Gold plate D Palladium E Gold flash palladium Z Other
DLA LAND AND MARITIME
SIZE
CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/11603
REV A PAGE 2
