Datasheet AD712 (Analog Devices) - 3

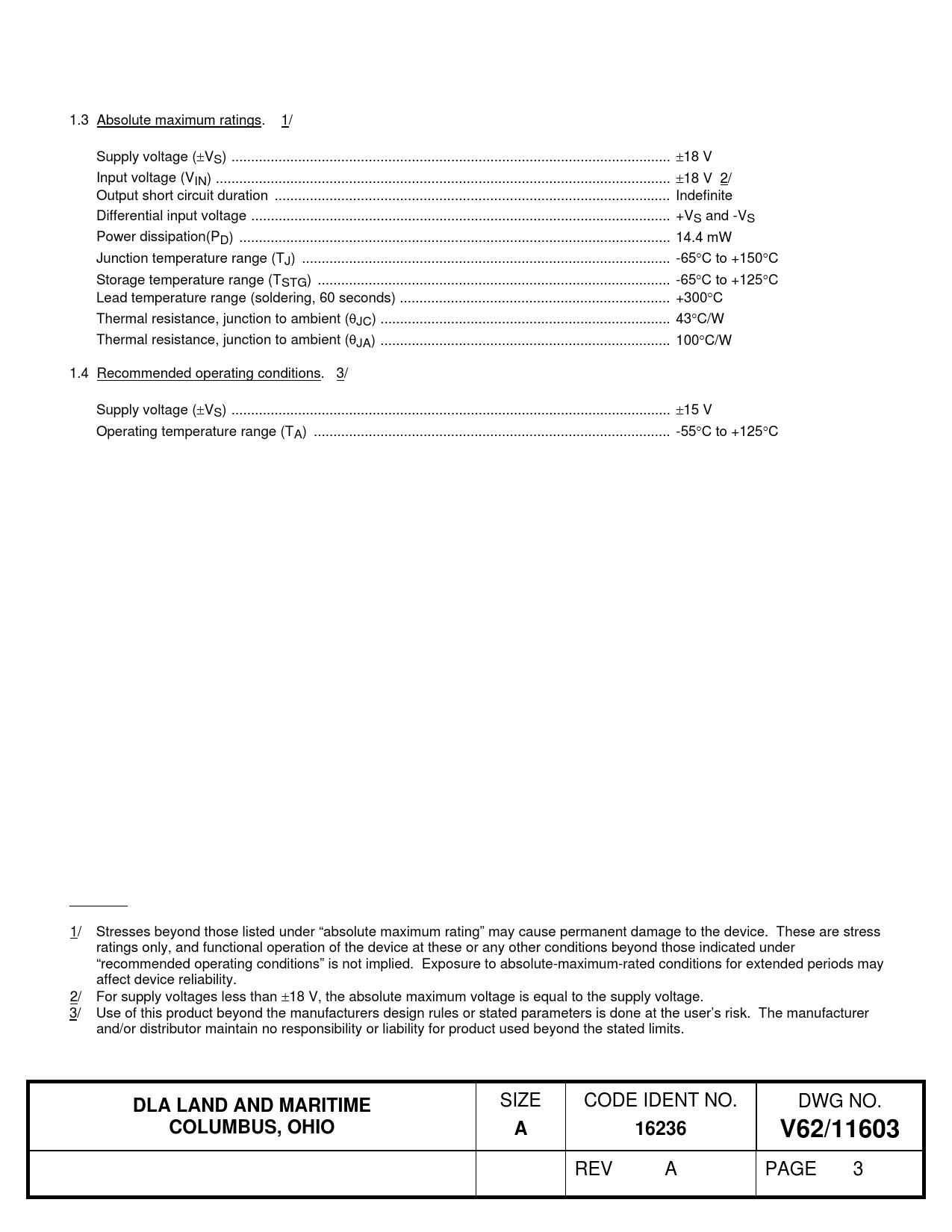

1.3 Absolute maximum ratings. 1/ Supply voltage (VS) .. 18 V Input voltage (VIN) .. 18 V 2/ Output short circuit duration ... Indefinite Differential input voltage ... +VS and -VS Power dissipation(PD) .. 14.4 mW Junction temperature range (TJ) .. -65C to +150C Storage temperature range (TSTG) .. -65C to +125C Lead temperature range (soldering, 60 seconds) ... +300C Thermal resistance, junction to ambient (JC) .. 43C/W Thermal resistance, junction to ambient (JA) .. 100C/W 1.4 Recommended operating conditions. 3/ Supply voltage (VS) .. 15 V Operating temperature range (TA) ... -55C to +125C 1/ Stresses beyond those listed under “absolute maximum rating” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. 2/ For supply voltages less than 18 V, the absolute maximum voltage is equal to the supply voltage. 3/ Use of this product beyond the manufacturers design rules or stated parameters is done at the user’s risk. The manufacturer and/or distributor maintain no responsibility or liability for product used beyond the stated limits.
DLA LAND AND MARITIME
SIZE

CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/11603
REV A PAGE 3
