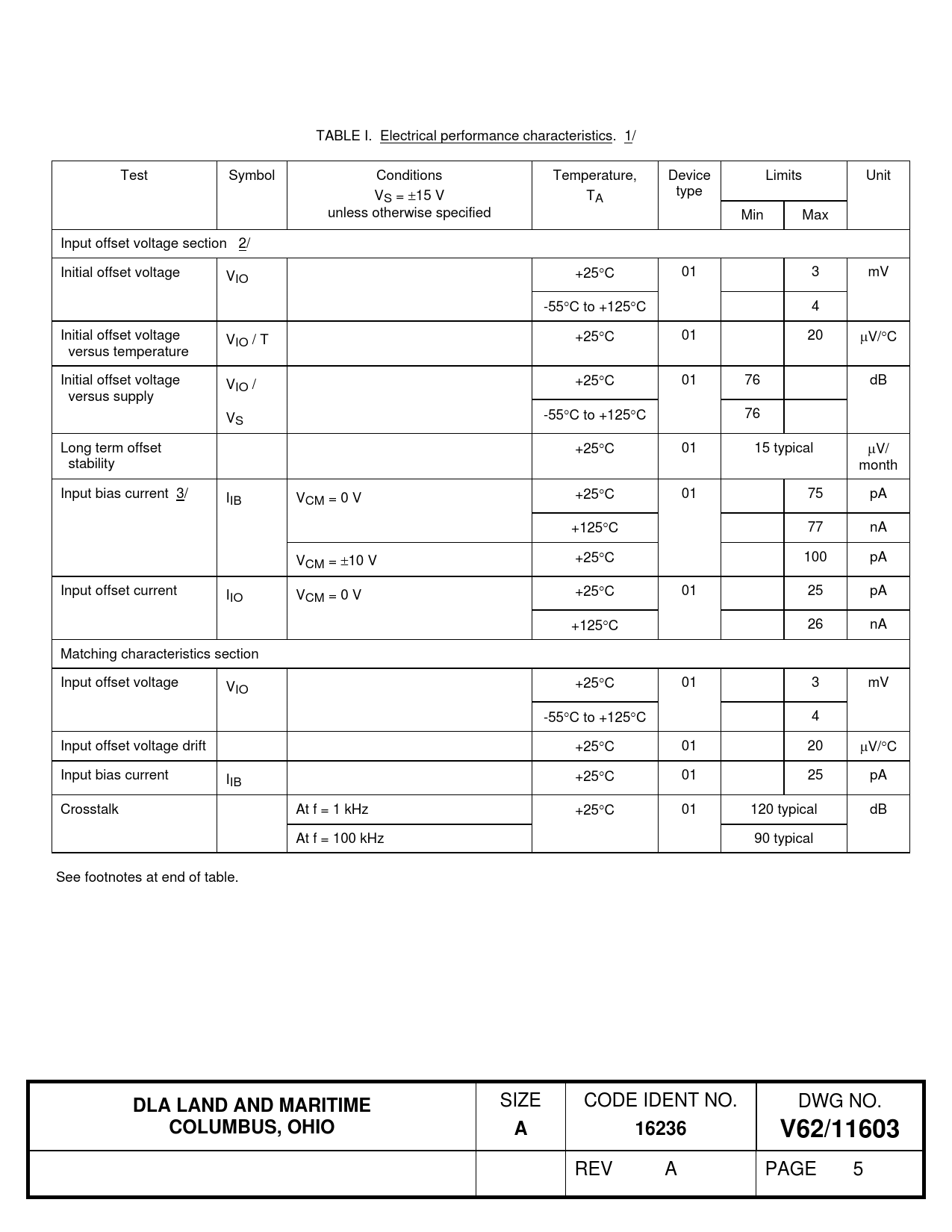

TABLE I. Electrical performance characteristics. 1/ Test Symbol Conditions Temperature, Device Limits Unit V type S = 15 V TA unless otherwise specified Min Max Input offset voltage section 2/ Initial offset voltage VIO +25C 01 3 mV -55C to +125C 4 Initial offset voltage VIO / T +25C 01 20 V/C versus temperature Initial offset voltage VIO / +25C 01 76 dB versus supply VS -55C to +125C 76 Long term offset +25C 01 15 typical V/ stability month Input bias current 3/ IIB VCM = 0 V +25C 01 75 pA +125C 77 nA VCM = 10 V +25C 100 pA Input offset current IIO VCM = 0 V +25C 01 25 pA +125C 26 nA Matching characteristics section Input offset voltage VIO +25C 01 3 mV -55C to +125C 4 Input offset voltage drift +25C 01 20 V/C Input bias current IIB +25C 01 25 pA Crosstalk At f = 1 kHz +25C 01 120 typical dB At f = 100 kHz 90 typical See footnotes at end of table.
