Datasheet KS8995MA, KS8995FQ (Microchip) - 3
| Manufacturer | Microchip |
| Description | Integrated 5-Port 10/100 Managed Switch |
| Pages / Page | 89 / 3 — Ordering Information. Part Number. Temperature Range. Package. Standard … |
| File Format / Size | PDF / 1.1 Mb |
| Document Language | English |
Ordering Information. Part Number. Temperature Range. Package. Standard Pb. (lead)-Free. Revision History. Revision. Date
Model Line for this Datasheet
Text Version of Document

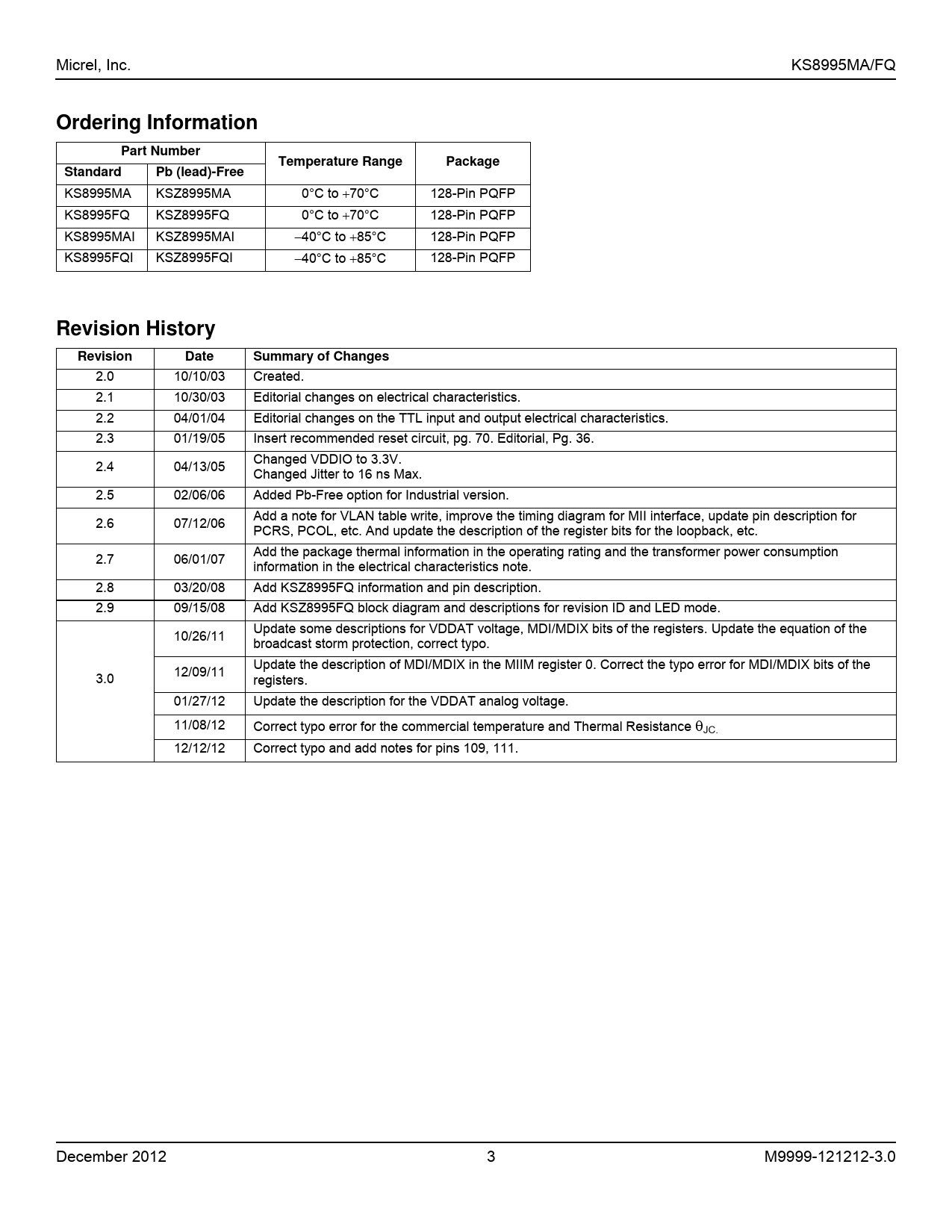

Micrel, Inc. KS8995MA/FQ
Ordering Information Part Number Temperature Range Package Standard Pb (lead)-Free
KS8995MA KSZ8995MA 0°C to +70°C 128-Pin PQFP KS8995FQ KSZ8995FQ 0°C to +70°C 128-Pin PQFP KS8995MAI KSZ8995MAI −40°C to +85°C 128-Pin PQFP KS8995FQI KSZ8995FQI −40°C to +85°C 128-Pin PQFP
Revision History Revision Date Summary of Changes
2.0 10/10/03 Created. 2.1 10/30/03 Editorial changes on electrical characteristics. 2.2 04/01/04 Editorial changes on the TTL input and output electrical characteristics. 2.3 01/19/05 Insert recommended reset circuit, pg. 70. Editorial, Pg. 36. Changed VDDIO to 3.3V. 2.4 04/13/05 Changed Jitter to 16 ns Max. 2.5 02/06/06 Added Pb-Free option for Industrial version. Add a note for VLAN table write, improve the timing diagram for MII interface, update pin description for 2.6 07/12/06 PCRS, PCOL, etc. And update the description of the register bits for the loopback, etc. Add the package thermal information in the operating rating and the transformer power consumption 2.7 06/01/07 information in the electrical characteristics note. 2.8 03/20/08 Add KSZ8995FQ information and pin description. 2.9 09/15/08 Add KSZ8995FQ block diagram and descriptions for revision ID and LED mode. Update some descriptions for VDDAT voltage, MDI/MDIX bits of the registers. Update the equation of the 10/26/11 broadcast storm protection, correct typo. Update the description of MDI/MDIX in the MIIM register 0. Correct the typo error for MDI/MDIX bits of the 3.0 12/09/11 registers. 01/27/12 Update the description for the VDDAT analog voltage. 11/08/12 Correct typo error for the commercial temperature and Thermal Resistance θJC. 12/12/12 Correct typo and add notes for pins 109, 111.
