Datasheet SRU (Songle Relay)

ManufacturerSongle Relay
DescriptionSubminature High Power Relay 7A/10A/15A
Pages / Page2 / 1 — SRU. Series. SUBMINATURE. HIGH. POWER. RELAY. 7A/10A/15A. C. US. 20.5MAX. …
File Format / SizePDF / 3.9 Mb
Document LanguageEnglish

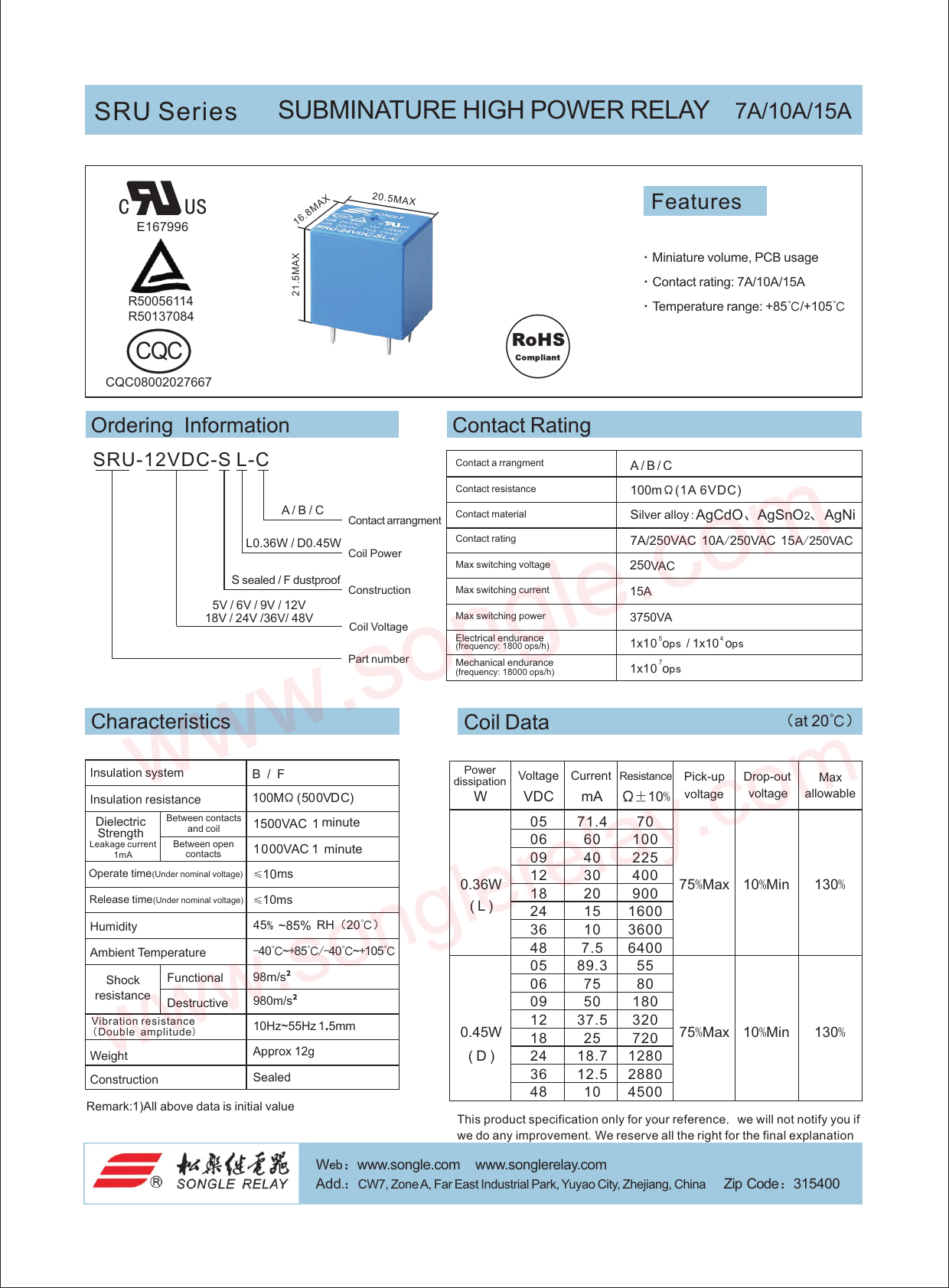

SRU. Series. SUBMINATURE. HIGH. POWER. RELAY. 7A/10A/15A. C. US. 20.5MAX. AX. Features. E167996. 16.8M. X. ·Miniature. volume,. PCB. usage. A. M. .5. ·Contact

Datasheet SRU Songle Relay

Model Line for this Datasheet

Text Version of Document

SRU Series SUBMINATURE HIGH POWER RELAY 7A/10A/15A C US 20.5MAX AX Features E167996 16.8M X ·Miniature volume, PCB usage A M .5 ·Contact rating: 7A/10A/15A 1 2 R50056114 ·Temperature range: +85℃/+105℃ R50137084 CQC CQC08002027667 Ordering Information Contact Rating SRU-12VDC-S L-C Contact a rrangment A / B / C Contact resistance 100mΩ(1A 6VDC) A / B / C Contact material Silver alloy:AgCdO、AgSnO2、AgNi Contact arrangment Contact rating 7A/250VAC 10A/250VAC 15 L0.36W / D0.45W A/250VAC Coil Power Max switching voltage 250VAC S sealed / F dustproof Construction Max switching current 15A 5V / 6V / 9V / 12V 18V / 24V /36V/ 48V Max switching power 3750VA Coil Voltage Electrical endurance (frequency: 1800 ops/h) 1x10 5ops / 1x10 4ops Part number 7 endurance Mechanical 1x10 ops (frequency: 18000 ops/h) Characteristics Coil Data ( 20 at ℃) Insulation system B / F Power Voltage Current Resistance dissipation Pick-up Drop-out Max Insulation resistance 100MΩ (500VDC) W VDC mA ± Ω 10% voltage voltage allowable Dielectric Between contacts 1500VAC 1 minute 05 71.4 70 Strength and coil 06 60 100 Leakage current Between open 1000VAC 1 minute 1mA contacts 09 40 225 Operate time(Under nominal voltage) ≤10ms 12 30 400 0.36W 75%Max 10%Min 130% 18 20 900 Release time(Under nominal voltage) ≤10ms ( L ) 24 15 1600 Humidity 45% ~85% RH(20℃) 36 10 3600 Ambient Temperature -40℃~+85℃/-40℃~+105℃ 48 7.5 6400 05 89.3 55 Functional 98m/s
²
Shock 06 75 80 resistance Destructive 980m/s
²
09 50 180 Vibration resistance 12 37.5 320 10Hz
~
55Hz

1
.
5mm

( Double amplitude) 0.45W 18 75%Max 10%Min 130% 25 720 Approx 12g Weight ( D ) 24 18.7 1280 Sealed 36 12.5 2880 Construction 48 10 4500 Remark:1)All above data is initial value This product specification only for your reference, we will not notify you if we do any improvement.We reserve all the right for the final explanation Web:www.songle.com www.songlerelay.com Email:sale@songle.com Web:www.songle.com www.songlerelay.com Add.:CW7, Zone A, Far East Industrial Park, Yuyao City, Zhejiang, China i Z p Code:315400 Add.:CW7, Zone A, Far East Industrial Park, Yuyao City, Zhejiang, China Zip Code:315400 Tel.: +86 574 62717777 62762658 62721968 a F x:+86 574 62721978 Document Outline 页 1 页 2
