Datasheet LTC2487 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | 16-Bit 2-/4-Channel ∆Σ ADC with PGA, Easy Drive and I2C Interface |
| Pages / Page | 34 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Notes 1, 2). ORDER … |
| File Format / Size | PDF / 883 Kb |
| Document Language | English |
ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Notes 1, 2). ORDER INFORMATION http://www.linear.com/product/LTC2487#orderinfo
Model Line for this Datasheet
Text Version of Document
LTC2487

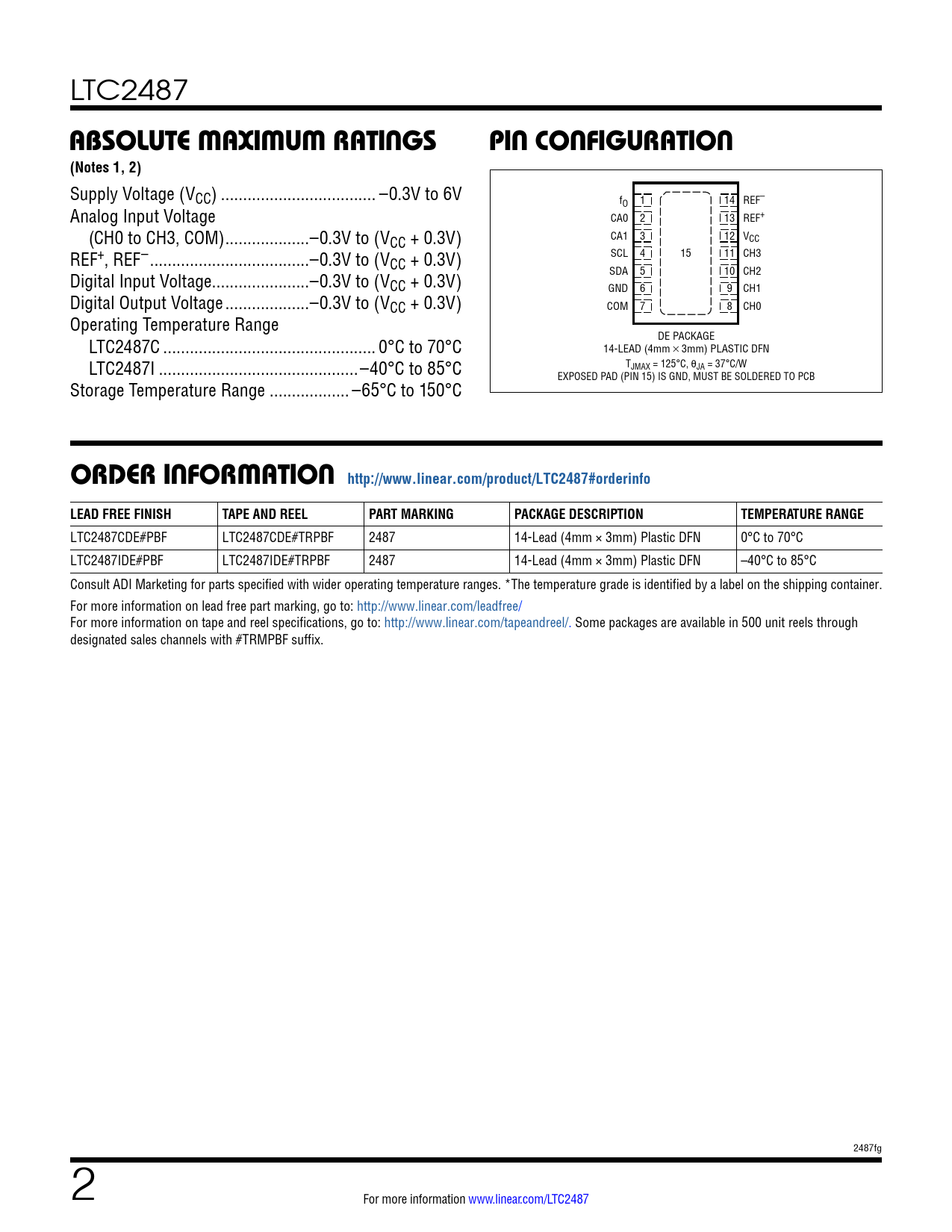

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Notes 1, 2)
Supply Voltage (VCC) ... –0.3V to 6V fO 1 14 REF– Analog Input Voltage CA0 2 13 REF+ (CH0 to CH3, COM) ...–0.3V to (VCC + 0.3V) CA1 3 12 VCC REF+, REF– ..–0.3V to (V SCL 4 15 11 CH3 CC + 0.3V) Digital Input Voltage..–0.3V to (V SDA 5 10 CH2 CC + 0.3V) GND 6 9 CH1 Digital Output Voltage ...–0.3V to (VCC + 0.3V) COM 7 8 CH0 Operating Temperature Range LTC2487C .. 0°C to 70°C DE PACKAGE 14-LEAD (4mm × 3mm) PLASTIC DFN LTC2487I ...–40°C to 85°C TJMAX = 125°C, qJA = 37°C/W EXPOSED PAD (PIN 15) IS GND, MUST BE SOLDERED TO PCB Storage Temperature Range .. –65°C to 150°C
ORDER INFORMATION http://www.linear.com/product/LTC2487#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2487CDE#PBF LTC2487CDE#TRPBF 2487 14-Lead (4mm × 3mm) Plastic DFN 0°C to 70°C LTC2487IDE#PBF LTC2487IDE#TRPBF 2487 14-Lead (4mm × 3mm) Plastic DFN –40°C to 85°C Consult ADI Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 2487fg 2 For more information www.linear.com/LTC2487 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics (Normal Speed) Electrical Characteristics (2x Speed) Converter Characteristics Analog Input and Reference I2C Inputs and Digital Outputs Power Requirements Digital Inputs and Digital Outputs I2C Timing Characteristics Typical Performance Characteristics Functional Block Diagram Applications Information Package Description Revision History Typical Application Related Parts
