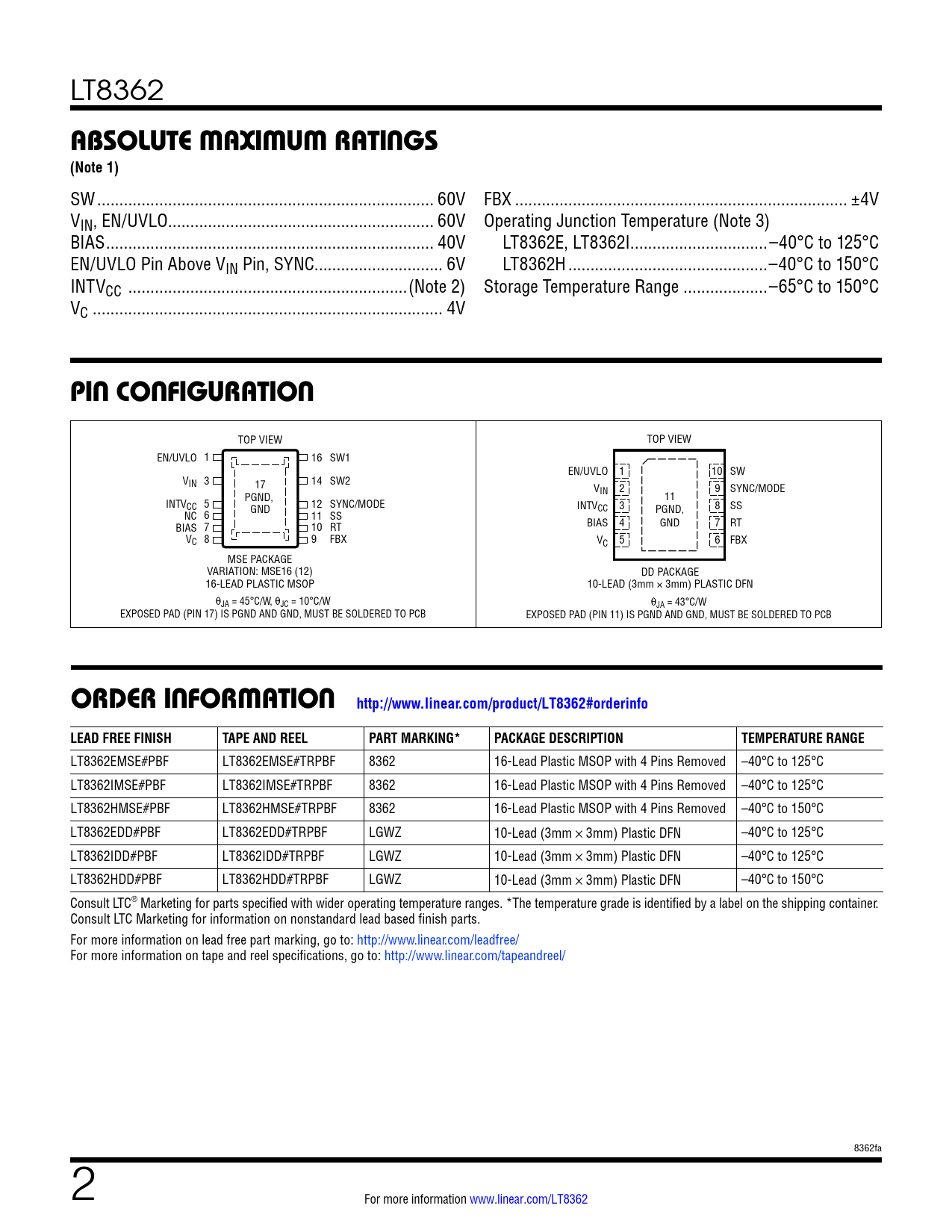

LT8362
ABSOLUTE MAXIMUM RATINGS (Note 1)
SW .. 60V FBX ... ±4V VIN, EN/UVLO .. 60V Operating Junction Temperature (Note 3) BIAS .. 40V LT8362E, LT8362I ...–40°C to 125°C EN/UVLO Pin Above VIN Pin, SYNC... 6V LT8362H ...–40°C to 150°C INTVCC ...(Note 2) Storage Temperature Range ...–65°C to 150°C VC ... 4V
PIN CONFIGURATION
TOP VIEW TOP VIEW EN/UVLO 1 16 SW1 EN/UVLO 1 10 SW V 3 IN 14 SW2 17 VIN 2 9 SYNC/MODE PGND, 11 INTV 5 CC 12 SYNC/MODE INTVCC 3 8 SS NC 6 GND 11 SS PGND, BIAS 7 10 RT BIAS 4 GND 7 RT V 8 C 9 FBX VC 5 6 FBX MSE PACKAGE VARIATION: MSE16 (12) DD PACKAGE 16-LEAD PLASTIC MSOP 10-LEAD (3mm × 3mm) PLASTIC DFN θJA = 45°C/W, θJC = 10°C/W θJA = 43°C/W EXPOSED PAD (PIN 17) IS PGND AND GND, MUST BE SOLDERED TO PCB EXPOSED PAD (PIN 11) IS PGND AND GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION http://www.linear.com/product/LT8362#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT8362EMSE#PBF LT8362EMSE#TRPBF 8362 16-Lead Plastic MSOP with 4 Pins Removed –40°C to 125°C LT8362IMSE#PBF LT8362IMSE#TRPBF 8362 16-Lead Plastic MSOP with 4 Pins Removed –40°C to 125°C LT8362HMSE#PBF LT8362HMSE#TRPBF 8362 16-Lead Plastic MSOP with 4 Pins Removed –40°C to 150°C LT8362EDD#PBF LT8362EDD#TRPBF LGWZ 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT8362IDD#PBF LT8362IDD#TRPBF LGWZ 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT8362HDD#PBF LT8362HDD#TRPBF LGWZ 10-Lead (3mm × 3mm) Plastic DFN –40°C to 150°C Consult LTC® Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on nonstandard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 8362fa 2 For more information www.linear.com/LT8362 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS BLOCK DIAGRAM OPERATION APPLICATIONS INFORMATION TYPICAL APPLICATIONS PACKAGE DESCRIPTION REVISION HISTORY TYPICAL APPLICATION RELATED PARTS
