Datasheet ADF5000 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | 4 GHz TO 18 GHz Divide-by-2 Prescaler |
| Pages / Page | 12 / 1 — 4 GHz to 18 GHz. Divide-by-2 Prescaler. Data Sheet. ADF5000. FEATURES. … |
| Revision | A |
| File Format / Size | PDF / 220 Kb |
| Document Language | English |

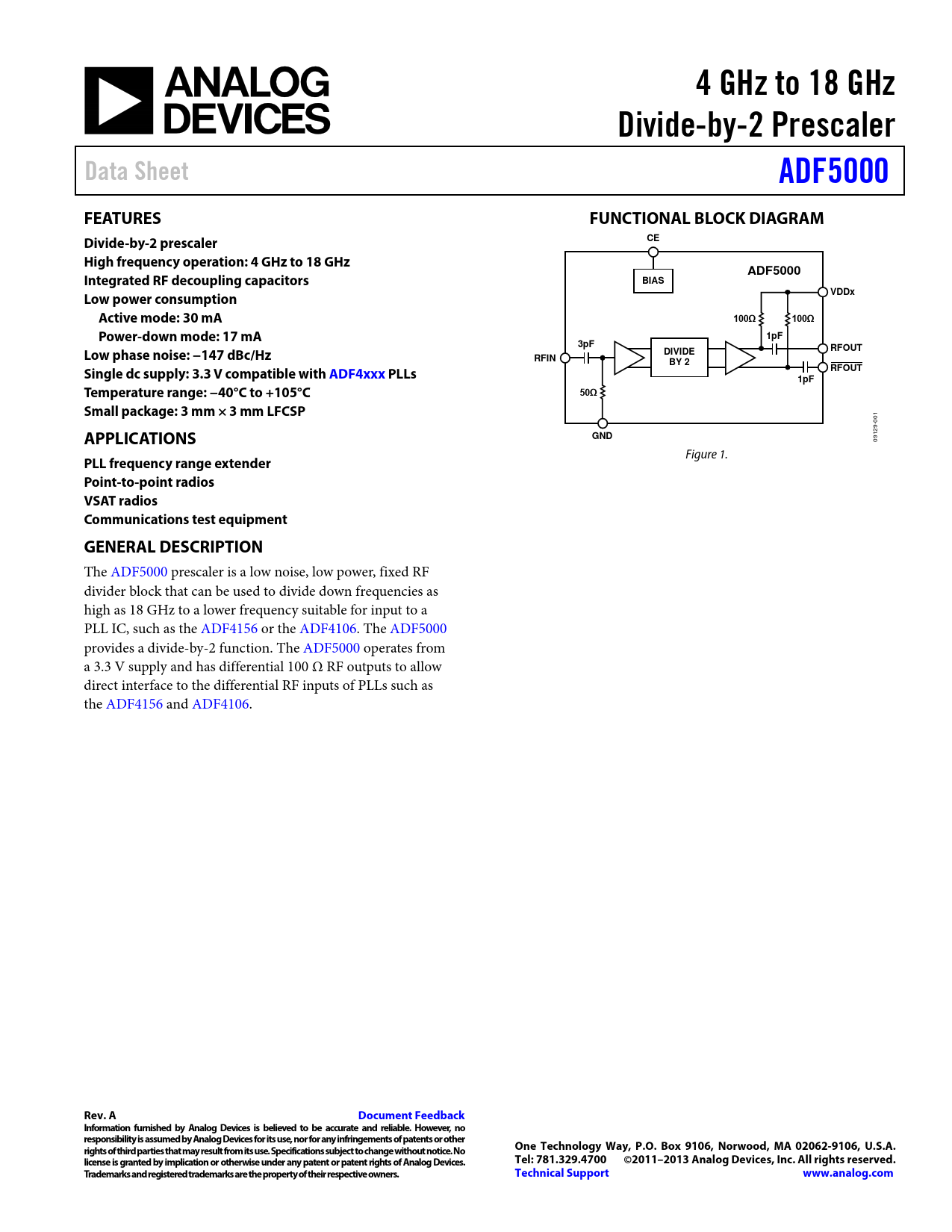

4 GHz to 18 GHz. Divide-by-2 Prescaler. Data Sheet. ADF5000. FEATURES. FUNCTIONAL BLOCK DIAGRAM. Divide-by-2 prescaler
Model Line for this Datasheet
Text Version of Document
4 GHz to 18 GHz Divide-by-2 Prescaler Data Sheet ADF5000 FEATURES FUNCTIONAL BLOCK DIAGRAM Divide-by-2 prescaler CE High frequency operation: 4 GHz to 18 GHz ADF5000 Integrated RF decoupling capacitors BIAS Low power consumption VDDx Active mode: 30 mA 100Ω 100Ω Power-down mode: 17 mA 1pF 3pF Low phase noise: −147 dBc/Hz DIVIDE RFOUT RFIN BY 2 Single dc supply: 3.3 V compatible with ADF4xxx P LLs RFOUT 1pF Temperature range: −40°C to +105°C 50Ω Small package: 3 mm × 3 mm LFCSP
001
APPLICATIONS GND
09129- Figure 1.
PLL frequency range extender Point-to-point radios VSAT radios Communications test equipment GENERAL DESCRIPTION
The ADF5000 prescaler is a low noise, low power, fixed RF divider block that can be used to divide down frequencies as high as 18 GHz to a lower frequency suitable for input to a PLL IC, such as the ADF4156 or the ADF4106. The ADF5000 provides a divide-by-2 function. The ADF5000 operates from a 3.3 V supply and has differential 100 Ω RF outputs to allow direct interface to the differential RF inputs of PLLs such as the ADF4156 and ADF4106.
