Datasheet ADF5001 (Analog Devices)

ManufacturerAnalog Devices
Description4 GHz TO 18 GHz Divide-by-4 Prescaler
Pages / Page12 / 1 — 4 GHz to 18 GHz Divide-by-4 Prescaler. ADF5001. FEATURES. FUNCTIONAL …
RevisionA
File Format / SizePDF / 181 Kb
Document LanguageEnglish

4 GHz to 18 GHz Divide-by-4 Prescaler. ADF5001. FEATURES. FUNCTIONAL BLOCK DIAGRAM. Divide-by-4 prescaler

Datasheet ADF5001 Analog Devices, Revision: A

Model Line for this Datasheet

Text Version of Document

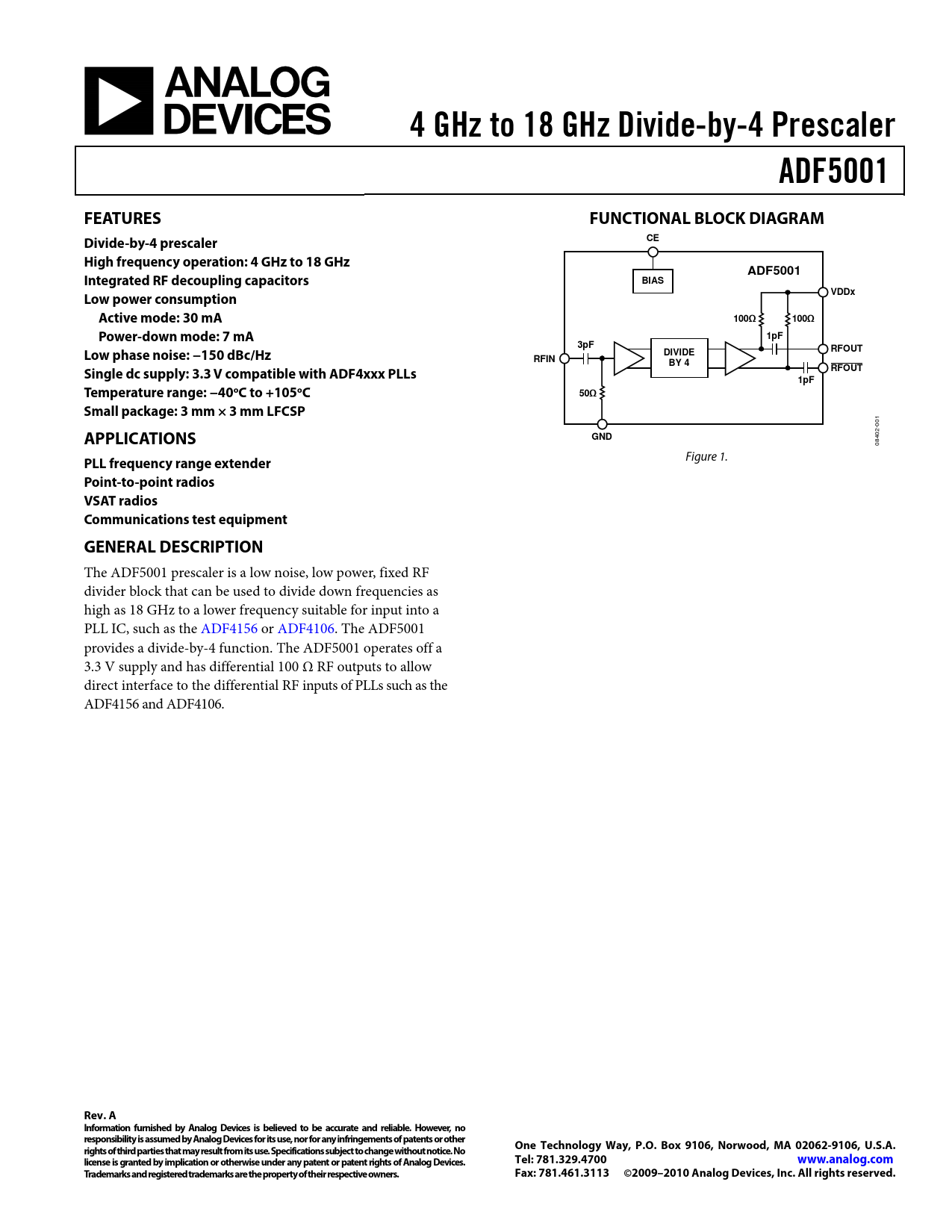

4 GHz to 18 GHz Divide-by-4 Prescaler ADF5001 FEATURES FUNCTIONAL BLOCK DIAGRAM Divide-by-4 prescaler CE High frequency operation: 4 GHz to 18 GHz ADF5001 Integrated RF decoupling capacitors BIAS VDDx Low power consumption Active mode: 30 mA 100Ω 100Ω Power-down mode: 7 mA 1pF 3pF RFOUT Low phase noise: −150 dBc/Hz DIVIDE RFIN BY 4 Single dc supply: 3.3 V compatible with ADF4xxx PLLs RFOUT 1pF Temperature range: −40oC to +105oC 50Ω Small package: 3 mm × 3 mm LFCSP
01 0 2-
APPLICATIONS GND
40 08 Figure 1.
PLL frequency range extender Point-to-point radios VSAT radios Communications test equipment GENERAL DESCRIPTION
The ADF5001 prescaler is a low noise, low power, fixed RF divider block that can be used to divide down frequencies as high as 18 GHz to a lower frequency suitable for input into a PLL IC, such as the ADF4156 or ADF4106. The ADF5001 provides a divide-by-4 function. The ADF5001 operates off a 3.3 V supply and has differential 100 Ω RF outputs to allow direct interface to the differential RF inputs of PLLs such as the ADF4156 and ADF4106.
