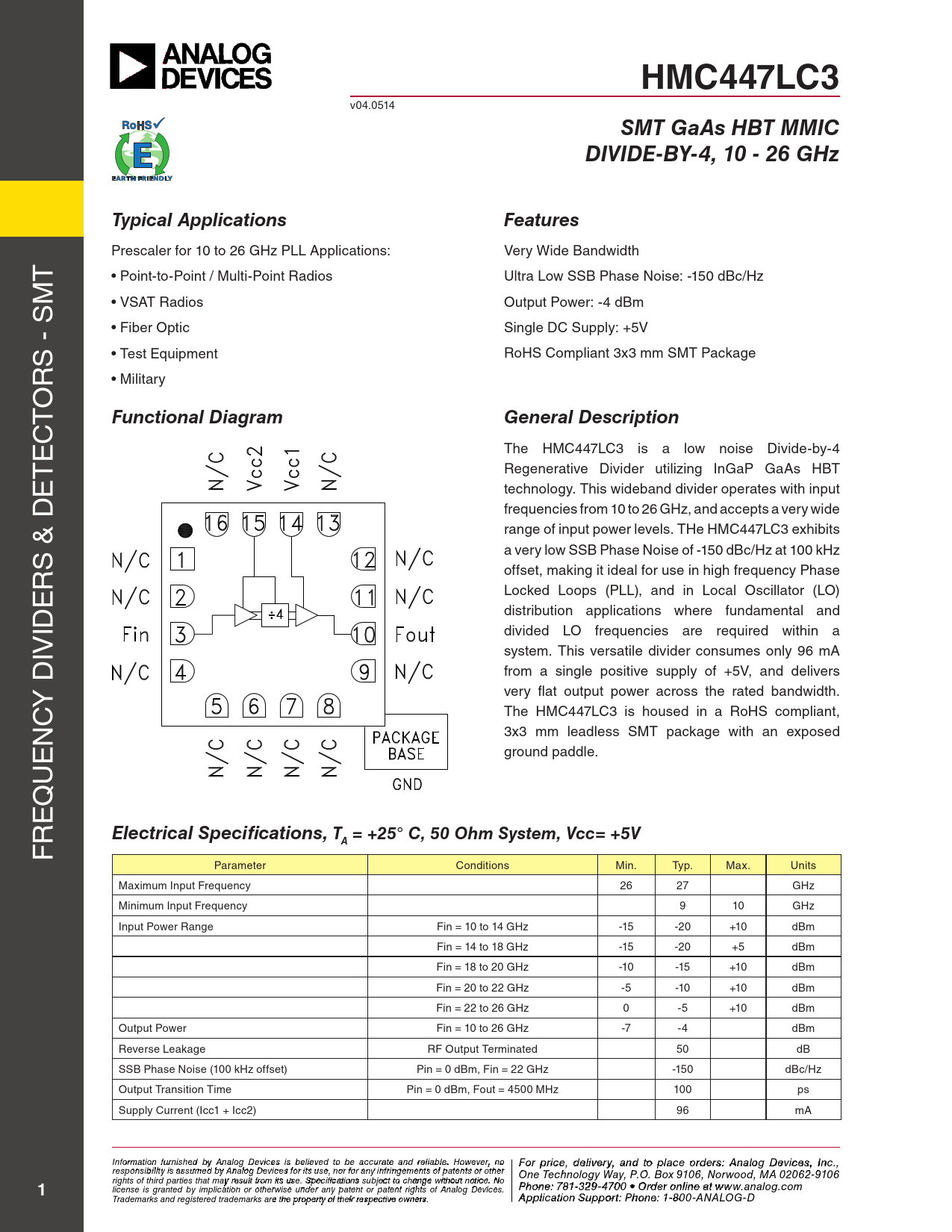

HMC447LC3
v04.0514
SMT GaAs HBT MMIC DIVIDE-BY-4, 10 - 26 GHz Typical Applications Features
Prescaler for 10 to 26 GHz PLL Applications: Very Wide Bandwidth T • Point-to-Point / Multi-Point Radios Ultra Low SSB Phase Noise: -150 dBc/Hz M • VSAT Radios Output Power: -4 dBm • Fiber Optic Single DC Supply: +5V S - S • Test Equipment RoHS Compliant 3x3 mm SMT Package R • Military O T
Functional Diagram General Description
C E The HMC447LC3 is a low noise Divide-by-4 T Regenerative Divider utilizing InGaP GaAs HBT E technology. This wideband divider operates with input frequencies from 10 to 26 GHz, and accepts a very wide range of input power levels. THe HMC447LC3 exhibits S & D a very low SSB Phase Noise of -150 dBc/Hz at 100 kHz R offset, making it ideal for use in high frequency Phase E Locked Loops (PLL), and in Local Oscil ator (LO) ID distribution applications where fundamental and divided LO frequencies are required within a IV system. This versatile divider consumes only 96 mA from a single positive supply of +5V, and delivers Y D very flat output power across the rated bandwidth. C The HMC447LC3 is housed in a RoHS compliant, N 3x3 mm leadless SMT package with an exposed E ground paddle. U Q E R
Electrical Specifications, T = +25° C, 50 Ohm System, Vcc= +5V
F
A
Parameter Conditions Min. Typ. Max. Units Maximum Input Frequency 26 27 GHz Minimum Input Frequency 9 10 GHz Input Power Range Fin = 10 to 14 GHz -15 -20 +10 dBm Fin = 14 to 18 GHz -15 -20 +5 dBm Fin = 18 to 20 GHz -10 -15 +10 dBm Fin = 20 to 22 GHz -5 -10 +10 dBm Fin = 22 to 26 GHz 0 -5 +10 dBm Output Power Fin = 10 to 26 GHz -7 -4 dBm Reverse Leakage RF Output Terminated 50 dB SSB Phase Noise (100 kHz offset) Pin = 0 dBm, Fin = 22 GHz -150 dBc/Hz Output Transition Time Pin = 0 dBm, Fout = 4500 MHz 100 ps Supply Current (Icc1 + Icc2) 96 mA Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e A r n y a alog n D d t evic o p es is la beclie o eved rd to ebre sa: H ccur iattti e tae M nd re ilicarbloew . H a o ve C wever, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd hone e r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o t niltie n .c e ao t m
1
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Application Support: Pho Trademarks and registered trademarks are the property of their respective owners. ne: 978-250-33 A 4 p 3 o plica r a tio p n S p u s p @ po h rt itt : P ite ho . n c e o : 1m -800-ANALOG-D
