HMC493LP3 / 493LP3E
v04.0507
SMT GaAs HBT MMIC DIVIDE-BY-4, DC - 18 GHz
6

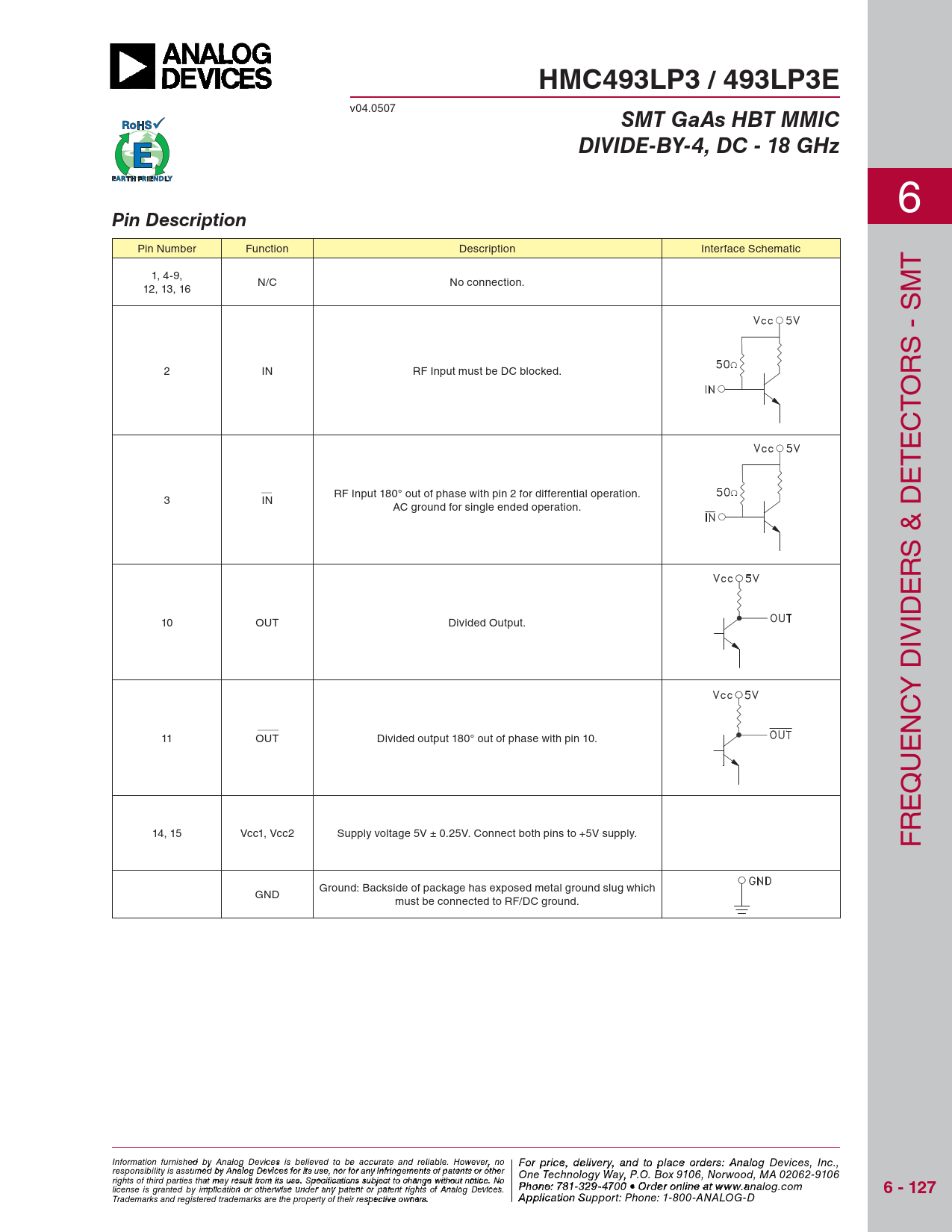

Pin Description
Pin Number Function Description Interface Schematic T 1, 4-9, N/C No connection. 12, 13, 16 S - SM 2 IN RF Input must be DC blocked. R O T C E T E RF Input 180° out of phase with pin 2 for differential operation. 3 IN AC ground for single ended operation. & D S R E 10 OUT Divided Output. ID IV Y D NC 11 OUT Divided output 180° out of phase with pin 10. E U Q E R 14, 15 Vcc1, Vcc2 Supply voltage 5V ± 0.25V. Connect both pins to +5V supply. F Ground: Backside of package has exposed metal ground slug which GND must be connected to RF/DC ground. Information furnish F e o d r pri by An ce, de alog Devic leis vie s rby eli, a eve nd to pla d to be accur ce o ate an r d der relia s ble , pl . Ho ease co wever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road, Chelmsford, MA 01824 Phone rights of third parties that may result from its use. Specifications subject to change without notice. No : 978 Pho - n 25 e: 7 0- 81 3 3 3 2 4 9- 3 F 470 ax: 978 0 • Order o - n 25 lin 0 e a-t 3373 license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com
6 - 127
Order On- Trademarks and registered trademarks are the property of their respective owners. line at www.hi A tptipte.co licatio m n Support: Phone: 1-800-ANALOG-D
