Datasheet LT3957A (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | Boost, Flyback, SEPIC and Inverting Converter with 5A, 40V Switch |
| Pages / Page | 28 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION. … |
| File Format / Size | PDF / 567 Kb |
| Document Language | English |

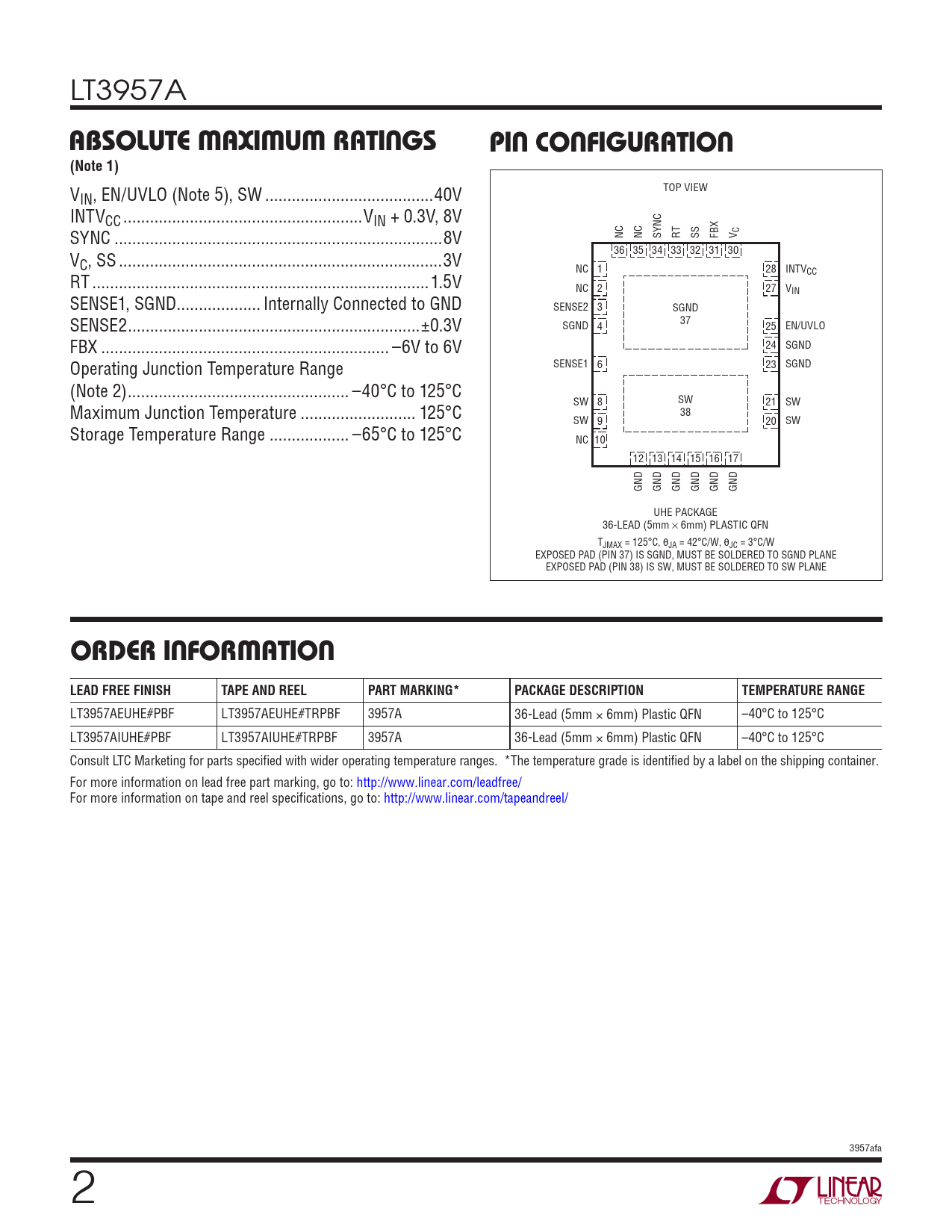

ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Model Line for this Datasheet
Text Version of Document
LT3957A
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
V TOP VIEW IN, EN/UVLO (Note 5), SW ..40V INTVCC ..VIN + 0.3V, 8V C SYNC ..8V NC NC SYNC RT SS FBX V 36 35 34 33 32 31 30 VC, SS ...3V NC 1 28 INTVCC RT ..1.5V NC 2 27 VIN SENSE1, SGND... Internally Connected to GND SENSE2 3 SGND SENSE2 ..±0.3V 37 SGND 4 25 EN/UVLO FBX ... –6V to 6V 24 SGND Operating Junction Temperature Range SENSE1 6 23 SGND (Note 2) .. –40°C to 125°C SW SW 8 21 SW Maximum Junction Temperature .. 125°C 38 SW 9 20 SW Storage Temperature Range .. –65°C to 125°C NC 10 12 13 14 15 16 17 GND GND GND GND GND GND UHE PACKAGE 36-LEAD (5mm w 6mm) PLASTIC QFN TJMAX = 125°C, θJA = 42°C/W, θJC = 3°C/W EXPOSED PAD (PIN 37) IS SGND, MUST BE SOLDERED TO SGND PLANE EXPOSED PAD (PIN 38) IS SW, MUST BE SOLDERED TO SW PLANE
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3957AEUHE#PBF LT3957AEUHE#TRPBF 3957A 36-Lead (5mm × 6mm) Plastic QFN –40°C to 125°C LT3957AIUHE#PBF LT3957AIUHE#TRPBF 3957A 36-Lead (5mm × 6mm) Plastic QFN –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 3957afa 2
