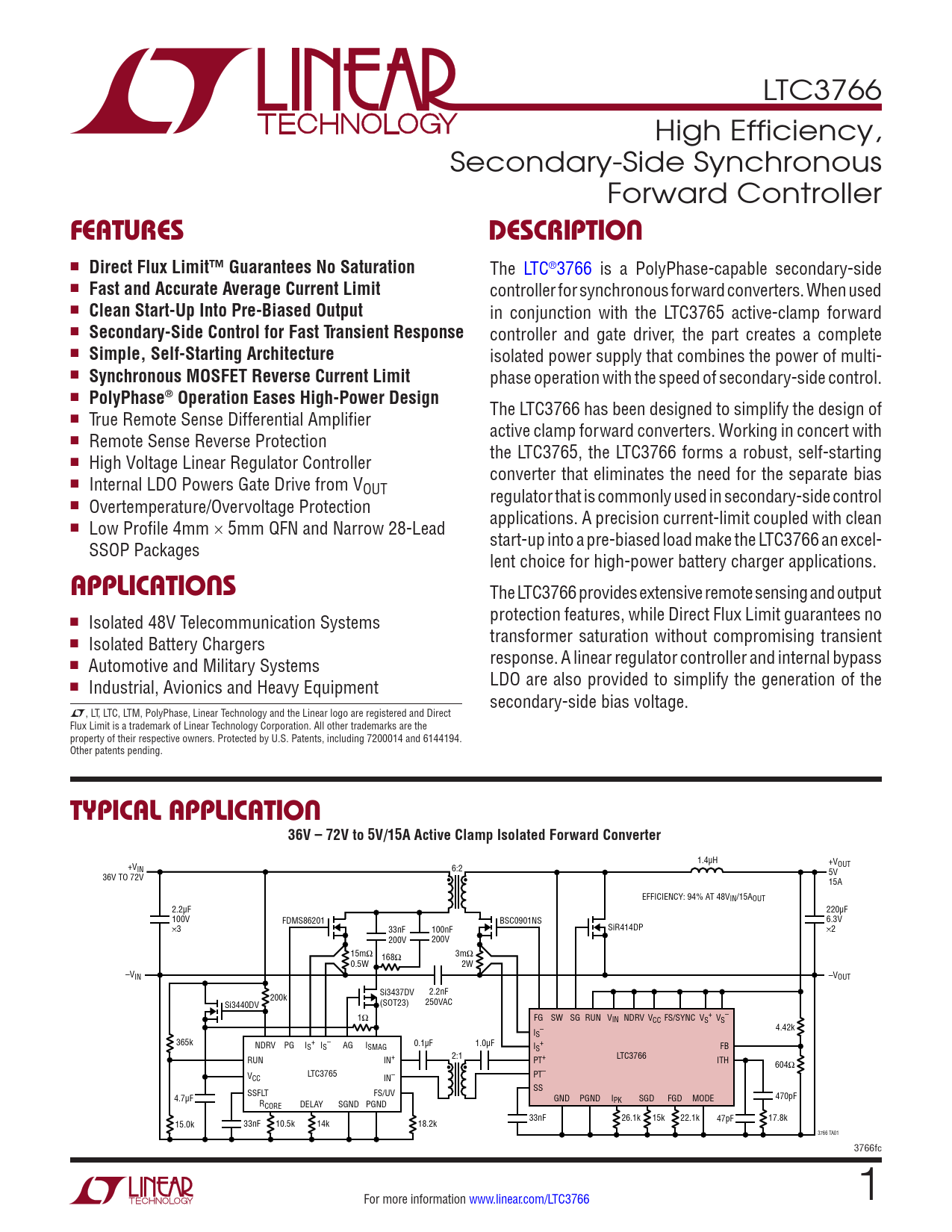

FEATURES. DESCRIPTION. Direct Flux Limit™ Guarantees No Saturation. Fast and Accurate Average Current Limit
Model Line for this Datasheet
Text Version of Document
LTC3766 High Efficiency, Secondary-Side Synchronous Forward Controller
FEATURES DESCRIPTION
n
Direct Flux Limit™ Guarantees No Saturation
The LTC®3766 is a PolyPhase-capable secondary-side n
Fast and Accurate Average Current Limit
controller for synchronous forward converters. When used n
Clean Start-Up Into Pre-Biased Output
in conjunction with the LTC3765 active-clamp forward n
Secondary-Side Control for Fast Transient Response
controller and gate driver, the part creates a complete n
Simple, Self-Starting Architecture
isolated power supply that combines the power of multi- n
Synchronous MOSFET Reverse Current Limit
phase operation with the speed of secondary-side control. n
PolyPhase® Operation Eases High-Power Design
The LTC3766 has been designed to simplify the design of n True Remote Sense Differential Amplifier active clamp forward converters. Working in concert with n Remote Sense Reverse Protection the LTC3765, the LTC3766 forms a robust, self-starting n High Voltage Linear Regulator Controller converter that eliminates the need for the separate bias n Internal LDO Powers Gate Drive from VOUT regulator that is commonly used in secondary-side control n Overtemperature/Overvoltage Protection applications. A precision current-limit coupled with clean n Low Profile 4mm × 5mm QFN and Narrow 28-Lead start-up into a pre-biased load make the LTC3766 an excel- SSOP Packages lent choice for high-power battery charger applications.
APPLICATIONS
The LTC3766 provides extensive remote sensing and output n protection features, while Direct Flux Limit guarantees no Isolated 48V Telecommunication Systems n transformer saturation without compromising transient Isolated Battery Chargers n response. A linear regulator controller and internal bypass Automotive and Military Systems n LDO are also provided to simplify the generation of the Industrial, Avionics and Heavy Equipment secondary-side bias voltage. L, LT, LTC, LTM, PolyPhase, Linear Technology and the Linear logo are registered and Direct Flux Limit is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners. Protected by U.S. Patents, including 7200014 and 6144194. Other patents pending.
TYPICAL APPLICATION 36V – 72V to 5V/15A Active Clamp Isolated Forward Converter
