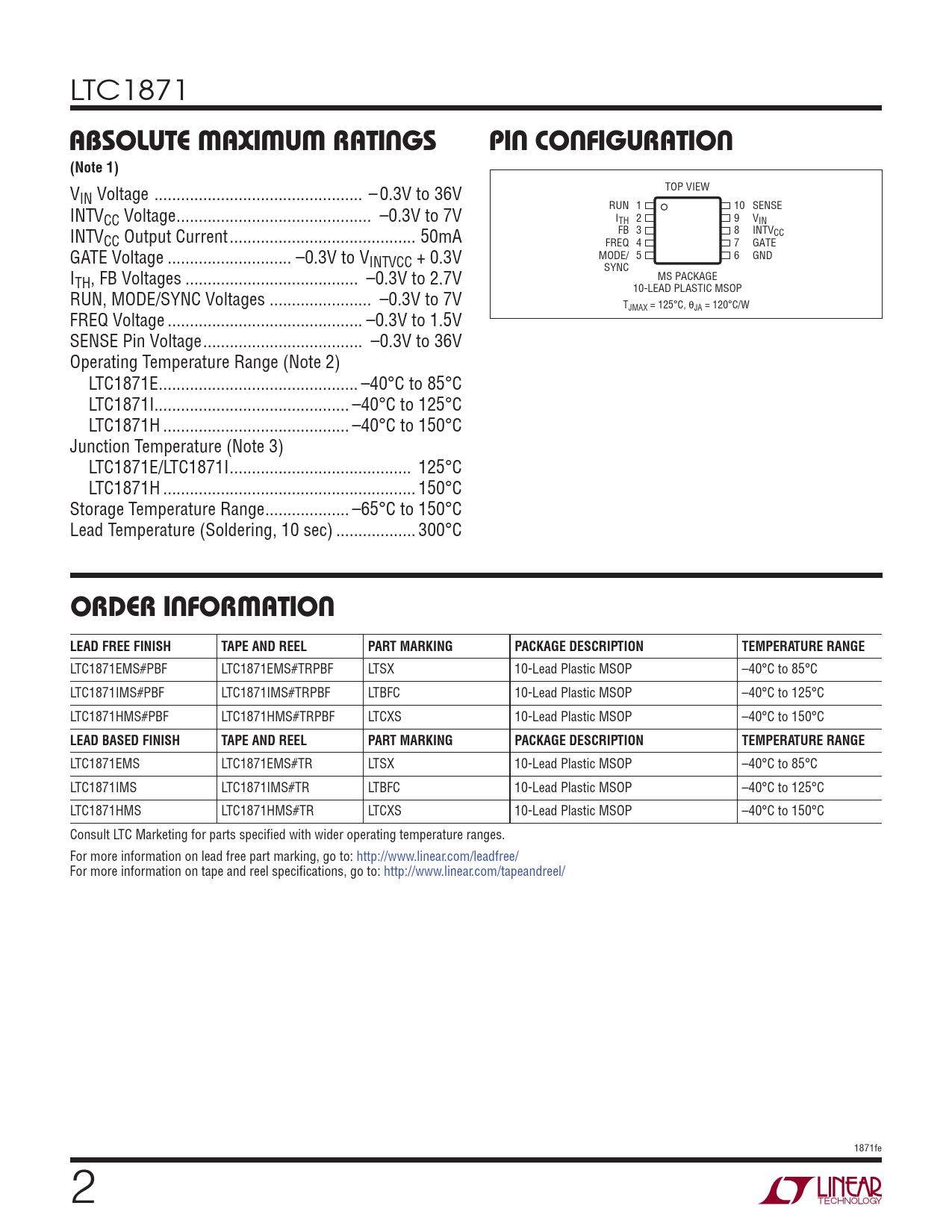

LTC1871
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
V TOP VIEW IN Voltage ... – 0.3V to 36V RUN 1 10 SENSE INTVCC Voltage .. –0.3V to 7V I 2 TH 9 VIN INTV FB 3 8 INTVCC CC Output Current .. 50mA FREQ 4 7 GATE GATE Voltage .. –0.3V to V MODE/ 5 6 GND INTVCC + 0.3V SYNC I MS PACKAGE TH, FB Voltages ... –0.3V to 2.7V 10-LEAD PLASTIC MSOP RUN, MODE/SYNC Voltages ... –0.3V to 7V TJMAX = 125°C, θJA = 120°C/W FREQ Voltage .. –0.3V to 1.5V SENSE Pin Voltage .. –0.3V to 36V Operating Temperature Range (Note 2) LTC1871E ... –40°C to 85°C LTC1871I.. –40°C to 125°C LTC1871H .. –40°C to 150°C Junction Temperature (Note 3) LTC1871E/LTC1871I ... 125°C LTC1871H ... 150°C Storage Temperature Range ... –65°C to 150°C Lead Temperature (Soldering, 10 sec) .. 300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC1871EMS#PBF LTC1871EMS#TRPBF LTSX 10-Lead Plastic MSOP –40°C to 85°C LTC1871IMS#PBF LTC1871IMS#TRPBF LTBFC 10-Lead Plastic MSOP –40°C to 125°C LTC1871HMS#PBF LTC1871HMS#TRPBF LTCXS 10-Lead Plastic MSOP –40°C to 150°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC1871EMS LTC1871EMS#TR LTSX 10-Lead Plastic MSOP –40°C to 85°C LTC1871IMS LTC1871IMS#TR LTBFC 10-Lead Plastic MSOP –40°C to 125°C LTC1871HMS LTC1871HMS#TR LTCXS 10-Lead Plastic MSOP –40°C to 150°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 1871fe 2
