Datasheet SMIH (Songle Relay)
| Manufacturer | Songle Relay |
| Description | Subminature High Power Relay 16A |
| Pages / Page | 2 / 1 — SMIH. Series. SUBMINATURE. HIGH. POWER. RELAY. 16A. C. US. X. 29.5M. … |
| File Format / Size | PDF / 3.7 Mb |
| Document Language | English |

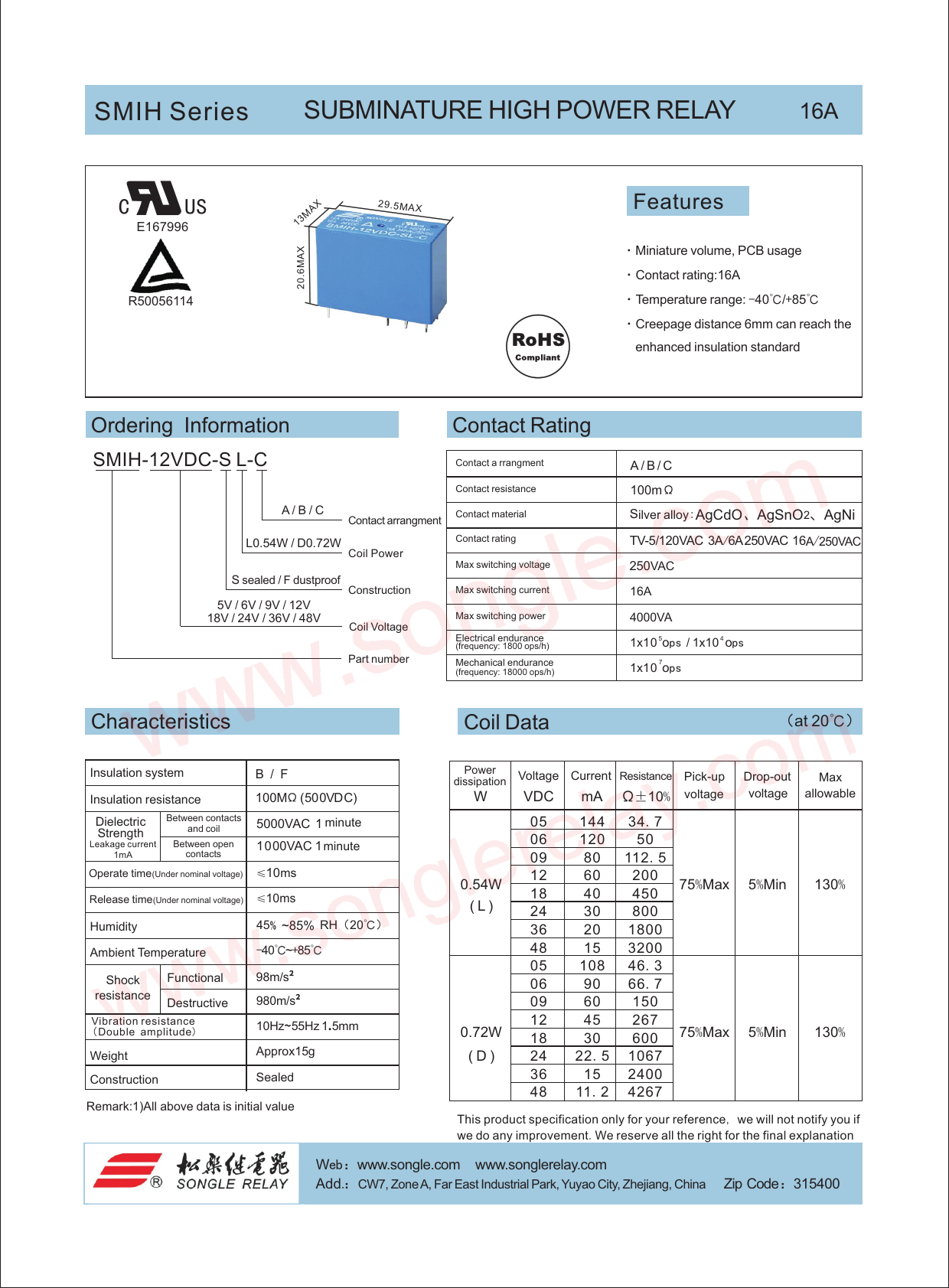

SMIH. Series. SUBMINATURE. HIGH. POWER. RELAY. 16A. C. US. X. 29.5M. Features. A. A. X. E167996. 13M. X. ·Miniature. volume,. PCB. usage. A. M. .6. ·Contact. rating:16A. 0. 2
Model Line for this Datasheet
- SMIH-05VDC-FD-A SMIH-05VDC-FD-B SMIH-05VDC-FD-C SMIH-05VDC-FL-A SMIH-05VDC-FL-B SMIH-05VDC-FL-C SMIH-05VDC-SD-A SMIH-05VDC-SD-B SMIH-05VDC-SD-C SMIH-05VDC-SL-A SMIH-05VDC-SL-B SMIH-05VDC-SL-C SMIH-06VDC-FD-A SMIH-06VDC-FD-B SMIH-06VDC-FD-C SMIH-06VDC-FL-A SMIH-06VDC-FL-B SMIH-06VDC-FL-C SMIH-06VDC-SD-A SMIH-06VDC-SD-B SMIH-06VDC-SD-C SMIH-06VDC-SL-A SMIH-06VDC-SL-B SMIH-06VDC-SL-C SMIH-09VDC-FD-A SMIH-09VDC-FD-B SMIH-09VDC-FD-C SMIH-09VDC-FL-A SMIH-09VDC-FL-B SMIH-09VDC-FL-C SMIH-09VDC-SD-A SMIH-09VDC-SD-B SMIH-09VDC-SD-C SMIH-09VDC-SL-A SMIH-09VDC-SL-B SMIH-09VDC-SL-C SMIH-12VDC-FD-A SMIH-12VDC-FD-B SMIH-12VDC-FD-C SMIH-12VDC-FL-A SMIH-12VDC-FL-B SMIH-12VDC-FL-C SMIH-12VDC-SD-A SMIH-12VDC-SD-B SMIH-12VDC-SD-C SMIH-12VDC-SL-A SMIH-12VDC-SL-B SMIH-12VDC-SL-C SMIH-18VDC-FD-A SMIH-18VDC-FD-B SMIH-18VDC-FD-C SMIH-18VDC-FL-A SMIH-18VDC-FL-B SMIH-18VDC-FL-C SMIH-18VDC-SD-A SMIH-18VDC-SD-B SMIH-18VDC-SD-C SMIH-18VDC-SL-A SMIH-18VDC-SL-B SMIH-18VDC-SL-C SMIH-24VDC-FD-A SMIH-24VDC-FD-B SMIH-24VDC-FD-C SMIH-24VDC-FL-A SMIH-24VDC-FL-B SMIH-24VDC-FL-C SMIH-24VDC-SD-A SMIH-24VDC-SD-B SMIH-24VDC-SD-C SMIH-24VDC-SL-A SMIH-24VDC-SL-B SMIH-24VDC-SL-C SMIH-36VDC-FD-A SMIH-36VDC-FD-B SMIH-36VDC-FD-C SMIH-36VDC-FL-A SMIH-36VDC-FL-B SMIH-36VDC-FL-C SMIH-36VDC-SD-A SMIH-36VDC-SD-B SMIH-36VDC-SD-C SMIH-36VDC-SL-A SMIH-36VDC-SL-B SMIH-36VDC-SL-C SMIH-48VDC-FD-A SMIH-48VDC-FD-B SMIH-48VDC-FD-C SMIH-48VDC-FL-A SMIH-48VDC-FL-B SMIH-48VDC-FL-C SMIH-48VDC-SD-A SMIH-48VDC-SD-B SMIH-48VDC-SD-C SMIH-48VDC-SL-A SMIH-48VDC-SL-B SMIH-48VDC-SL-C
Text Version of Document
SMIH Series SUBMINATURE HIGH POWER RELAY 16A C US X 29.5M Features A A X E167996 13M X ·Miniature volume, PCB usage A M .6 ·Contact rating:16A 0 2 R50056114 ·Temperature range: -40℃/+85℃ ·Creepage distance 6mm can reach the enhanced insulation standard Ordering Information Contact Rating SMIH-12VDC-S L-C Contact a rrangment A / B / C Contact resistance 100mΩ A / B / C Contact material Silver alloy:AgCdO、AgSnO2、AgNi Contact arrangment L0.54W / D0.72W Contact rating TV-5/120VAC 3A/6A 250VAC 16A/250VAC Coil Power Max switching voltage 250VAC S sealed / F dustproof Construction Max switching current 16A 5V / 6V / 9V 12V / 18V / 24V / 36V / 48V Max switching power 4000VA Coil Voltage Electrical endurance (frequency: 1800 ops/h) 1x10 5ops / 1x10 4ops Part number 7 endurance Mechanical 1x10 ops (frequency: 18000 ops/h) Characteristics Coil Data （ 20 at ℃） Insulation system B / F Power Voltage Current Resistance dissipation Pick-up Drop-out Max Insulation resistance 100MΩ (500VDC) W VDC mA ± Ω 10% voltage voltage allowable Dielectric Between contacts 5000VAC 1 minute 05 144 34. 7 Strength and coil 06 120 50 Leakage current Between open 1000VAC 1 minute 1mA contacts 09 80 112. 5 Operate time(Under nominal voltage) ≤10ms 12 60 200 0.54W 75%Max 5%Min 130% Release time(Under nominal voltage) ≤10ms 18 40 450 ( L ) 24 30 800 Humidity 45% ~85% RH（20℃） 36 20 1800 - Ambient Temperature 40℃~+85℃ 48 15 3200 05 108 46. 3 Functional 98m/s
²
Shock 06 90 66. 7 resistance Destructive 980m/s
²
09 60 150 Vibration resistance
12 45 267 10Hz
~
55Hz
1
.
5mm ( Double amplitude) 0.72W 18 75%Max 5%Min 130% 30 600 Approx15g Weight ( D ) 24 22. 5 1067 Construction Sealed 36 15 2400 48 11. 2 4267 Remark:1)All above data is initial value This product specification only for your reference, we will not notify you if we do any improvement.We reserve all the right for the final explanation Web：www.songle.com www.songlerelay.com Email:sale@songle.com Web：www.songle.com www.songlerelay.com Add.：CW7, Zone A, Far East Industrial Park, Yuyao City, Zhejiang, China i Z p Code：315400 Add.：CW7, Zone A, Far East Industrial Park, Yuyao City, Zhejiang, China Zip Code：315400 Tel.： +86 574 62717777 62762658 62721968 a F x：+86 574 62721978 Document Outline 页 1 页 2
