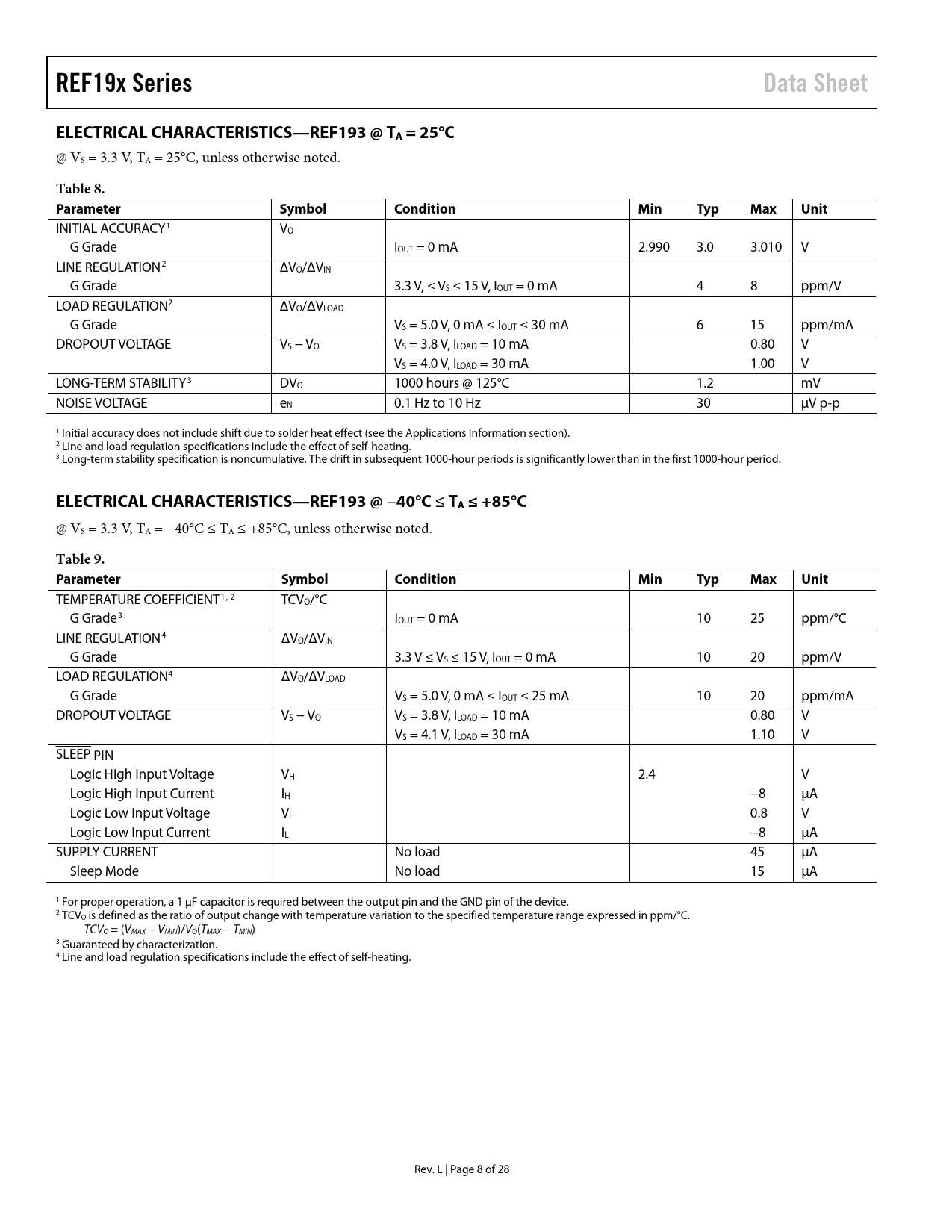

REF19x Series Data Sheet ELECTRICAL CHARACTERISTICS—REF193 @ TA = 25°C
@ VS = 3.3 V, TA = 25°C, unless otherwise noted.
Table 8. Parameter Symbol Condition Min Typ Max Unit
INITIAL ACCURACY1 VO G Grade IOUT = 0 mA 2.990 3.0 3.010 V LINE REGULATION2 ΔVO/ΔVIN G Grade 3.3 V, ≤ VS ≤ 15 V, IOUT = 0 mA 4 8 ppm/V LOAD REGULATION2 ΔVO/ΔVLOAD G Grade VS = 5.0 V, 0 mA ≤ IOUT ≤ 30 mA 6 15 ppm/mA DROPOUT VOLTAGE VS − VO VS = 3.8 V, ILOAD = 10 mA 0.80 V VS = 4.0 V, ILOAD = 30 mA 1.00 V LONG-TERM STABILITY3 DVO 1000 hours @ 125°C 1.2 mV NOISE VOLTAGE eN 0.1 Hz to 10 Hz 30 μV p-p 1 Initial accuracy does not include shift due to solder heat effect (see the Applications Information section). 2 Line and load regulation specifications include the effect of self-heating. 3 Long-term stability specification is noncumulative. The drift in subsequent 1000-hour periods is significantly lower than in the first 1000-hour period.
