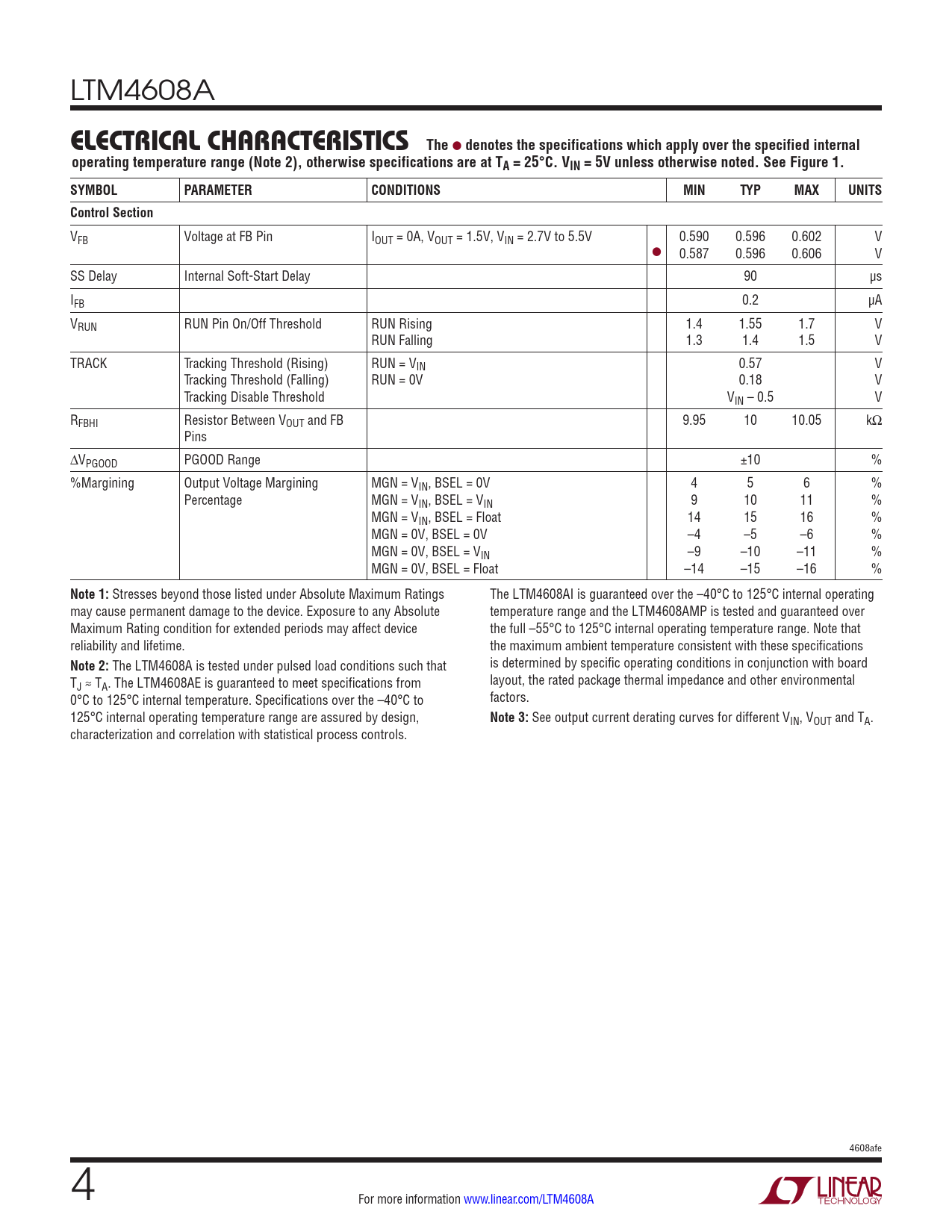

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the specified internal
Model Line for this Datasheet
Text Version of Document
LTM4608A
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the specified internal operating temperature range (Note 2), otherwise specifications are at TA = 25°C. VIN = 5V unless otherwise noted. See Figure 1. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Control Section
VFB Voltage at FB Pin IOUT = 0A, VOUT = 1.5V, VIN = 2.7V to 5.5V 0.590 0.596 0.602 V l 0.587 0.596 0.606 V SS Delay Internal Soft-Start Delay 90 µs IFB 0.2 µA VRUN RUN Pin On/Off Threshold RUN Rising 1.4 1.55 1.7 V RUN Falling 1.3 1.4 1.5 V TRACK Tracking Threshold (Rising) RUN = VIN 0.57 V Tracking Threshold (Falling) RUN = 0V 0.18 V Tracking Disable Threshold VIN – 0.5 V RFBHI Resistor Between VOUT and FB 9.95 10 10.05 kΩ Pins ∆VPGOOD PGOOD Range ±10 % %Margining Output Voltage Margining MGN = VIN, BSEL = 0V 4 5 6 % Percentage MGN = VIN, BSEL = VIN 9 10 11 % MGN = VIN, BSEL = Float 14 15 16 % MGN = 0V, BSEL = 0V –4 –5 –6 % MGN = 0V, BSEL = VIN –9 –10 –11 % MGN = 0V, BSEL = Float –14 –15 –16 %
