LTM4606
elecTrical characTerisTics The
l

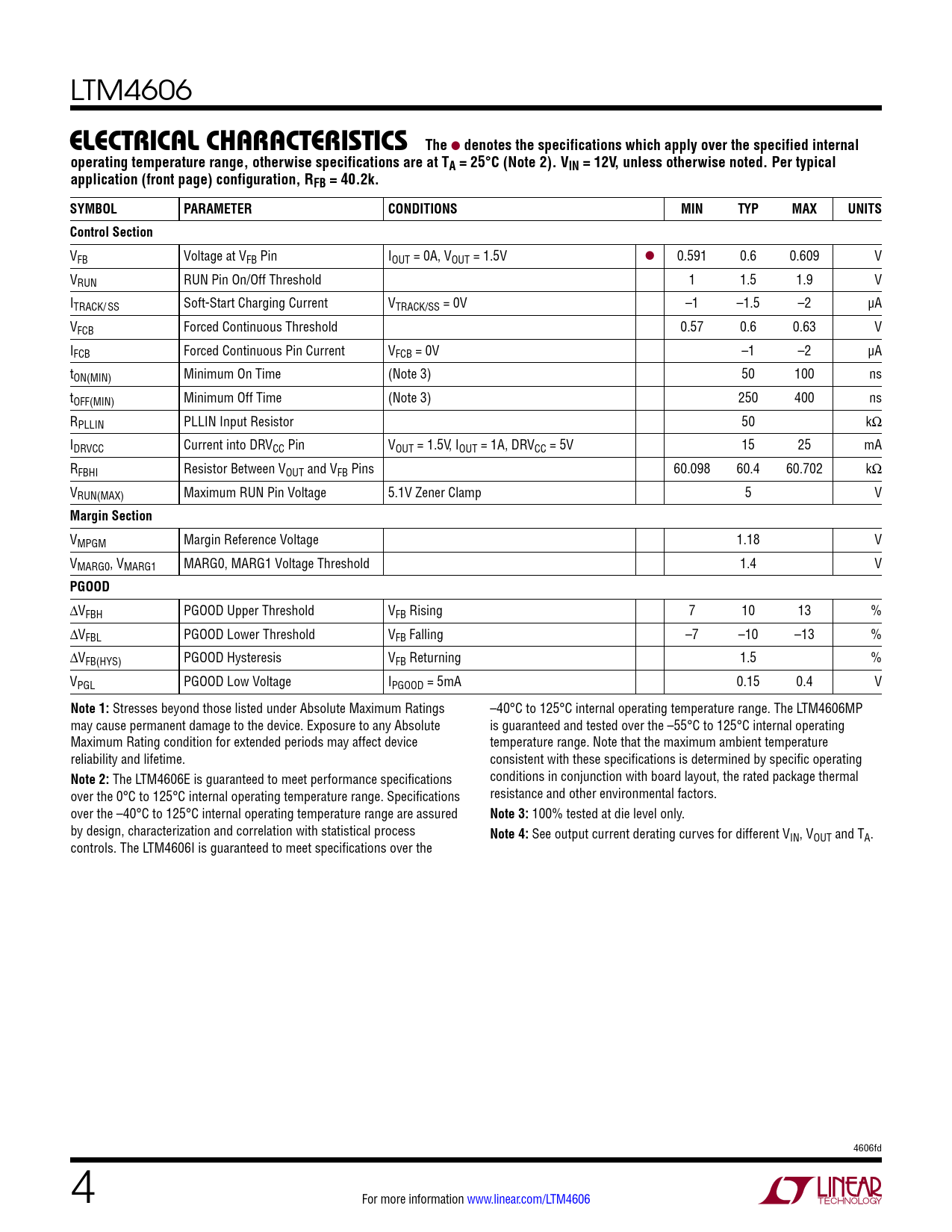

denotes the specifications which apply over the specified internal operating temperature range, otherwise specifications are at TA = 25°C (Note 2). VIN = 12V, unless otherwise noted. Per typical application (front page) configuration, RFB = 40.2k. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Control Section
VFB Voltage at VFB Pin IOUT = 0A, VOUT = 1.5V l 0.591 0.6 0.609 V VRUN RUN Pin On/Off Threshold 1 1.5 1.9 V ITRACK/SS Soft-Start Charging Current VTRACK/SS = 0V –1 –1.5 –2 µA VFCB Forced Continuous Threshold 0.57 0.6 0.63 V IFCB Forced Continuous Pin Current VFCB = 0V –1 –2 µA tON(MIN) Minimum On Time (Note 3) 50 100 ns tOFF(MIN) Minimum Off Time (Note 3) 250 400 ns RPLLIN PLLIN Input Resistor 50 kW IDRVCC Current into DRVCC Pin VOUT = 1.5V, IOUT = 1A, DRVCC = 5V 15 25 mA RFBHI Resistor Between VOUT and VFB Pins 60.098 60.4 60.702 kW VRUN(MAX) Maximum RUN Pin Voltage 5.1V Zener Clamp 5 V
Margin Section
VMPGM Margin Reference Voltage 1.18 V VMARG0, VMARG1 MARG0, MARG1 Voltage Threshold 1.4 V
PGOOD
DVFBH PGOOD Upper Threshold VFB Rising 7 10 13 % DVFBL PGOOD Lower Threshold VFB Falling –7 –10 –13 % DVFB(HYS) PGOOD Hysteresis VFB Returning 1.5 % VPGL PGOOD Low Voltage IPGOOD = 5mA 0.15 0.4 V
