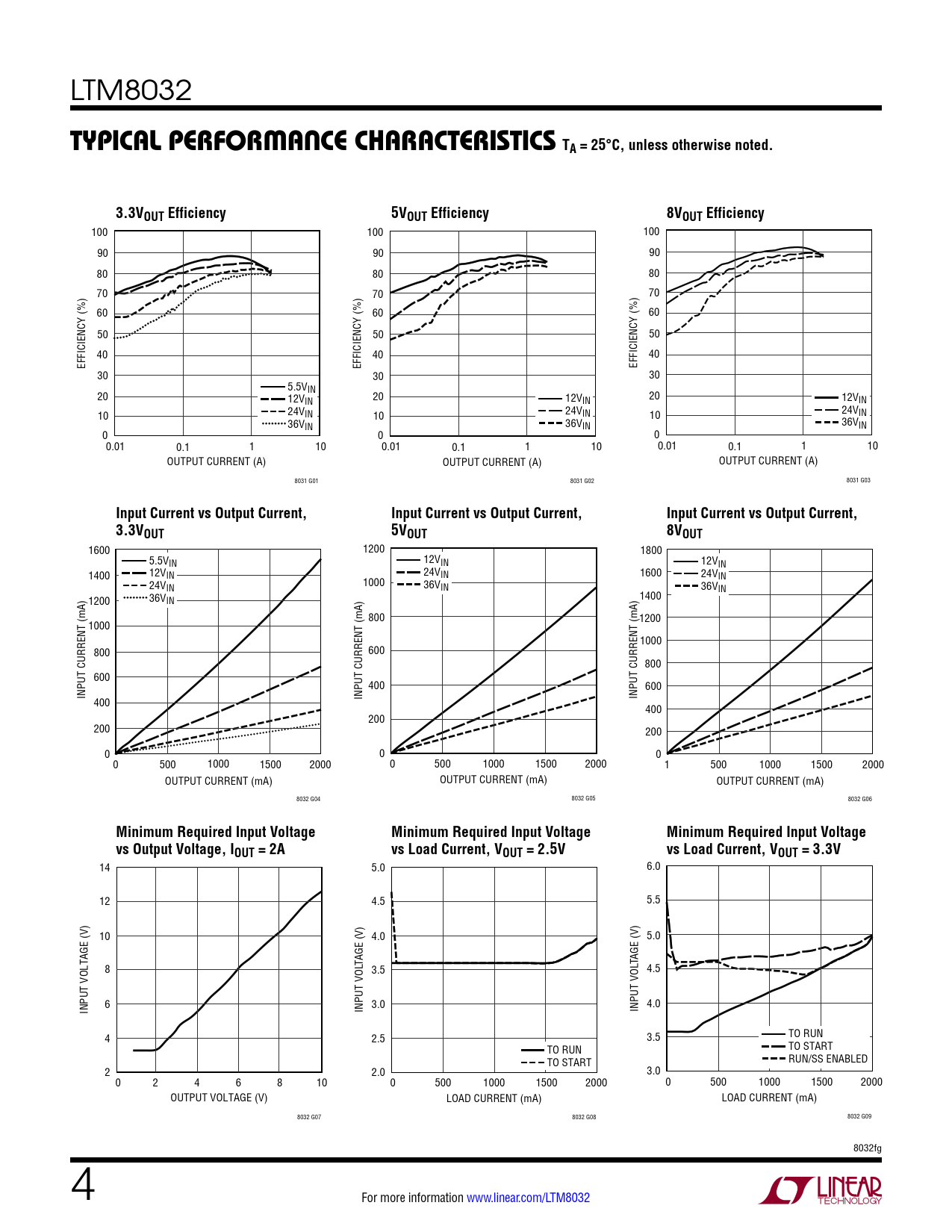

Typical perForMance characTerisTics TA = 25°C, unless otherwise noted. 3.3VOUT Efficiency. 5VOUT Efficiency. 8VOUT Efficiency
Model Line for this Datasheet
Text Version of Document
LTM8032
Typical perForMance characTerisTics TA = 25°C, unless otherwise noted. 3.3VOUT Efficiency 5VOUT Efficiency 8VOUT Efficiency
100 100 100 90 90 90 80 80 80 70 70 70 60 60 60 50 50 50 40 40 40 EFFICIENCY (%) EFFICIENCY (%) EFFICIENCY (%) 30 30 30 5.5VIN 20 12V 20 IN 20 12VIN 12VIN 10 24VIN 10 24VIN 10 24VIN 36VIN 36VIN 36VIN 0 0 0 0.01 0.1 1 10 0.01 0.1 1 10 0.01 0.1 1 10 OUTPUT CURRENT (A) OUTPUT CURRENT (A) OUTPUT CURRENT (A) 8031 G01 8031 G02 8031 G03
Input Current vs Output Current, Input Current vs Output Current, Input Current vs Output Current, 3.3VOUT 5VOUT 8VOUT
1600 1200 1800 5.5VIN 12VIN 12VIN 1400 12VIN 24VIN 1600 24VIN 24V 1000 IN 36VIN 36VIN 1200 36VIN 1400 800 1200 1000 1000 800 600 800 600 400 600 INPUT CURRENT (mA) INPUT CURRENT (mA) INPUT CURRENT (mA) 400 400 200 200 200 0 0 0 0 500 1000 1500 2000 0 500 1000 1500 2000 1 500 1000 1500 2000 OUTPUT CURRENT (mA) OUTPUT CURRENT (mA) OUTPUT CURRENT (mA) 8032 G04 8032 G05 8032 G06
Minimum Required Input Voltage Minimum Required Input Voltage Minimum Required Input Voltage vs Output Voltage, IOUT = 2A vs Load Current, VOUT = 2.5V vs Load Current, VOUT = 3.3V
14 5.0 6.0 12 4.5 5.5 10 4.0 5.0 TAGE (V) TAGE (V) 8 3.5 4.5 INPUT VOLTAGE (V) 6 INPUT VOL 3.0 INPUT VOL 4.0 4 2.5 3.5 TO RUN TO RUN TO START TO START RUN/SS ENABLED 2 2.0 3.0 0 2 4 6 8 10 0 500 1000 1500 2000 0 500 1000 1500 2000 OUTPUT VOLTAGE (V) LOAD CURRENT (mA) LOAD CURRENT (mA) 8032 G07 8032 G08 8032 G09 8032fg 4 For more information www.linear.com/LTM8032 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Package Photographs Related Parts
