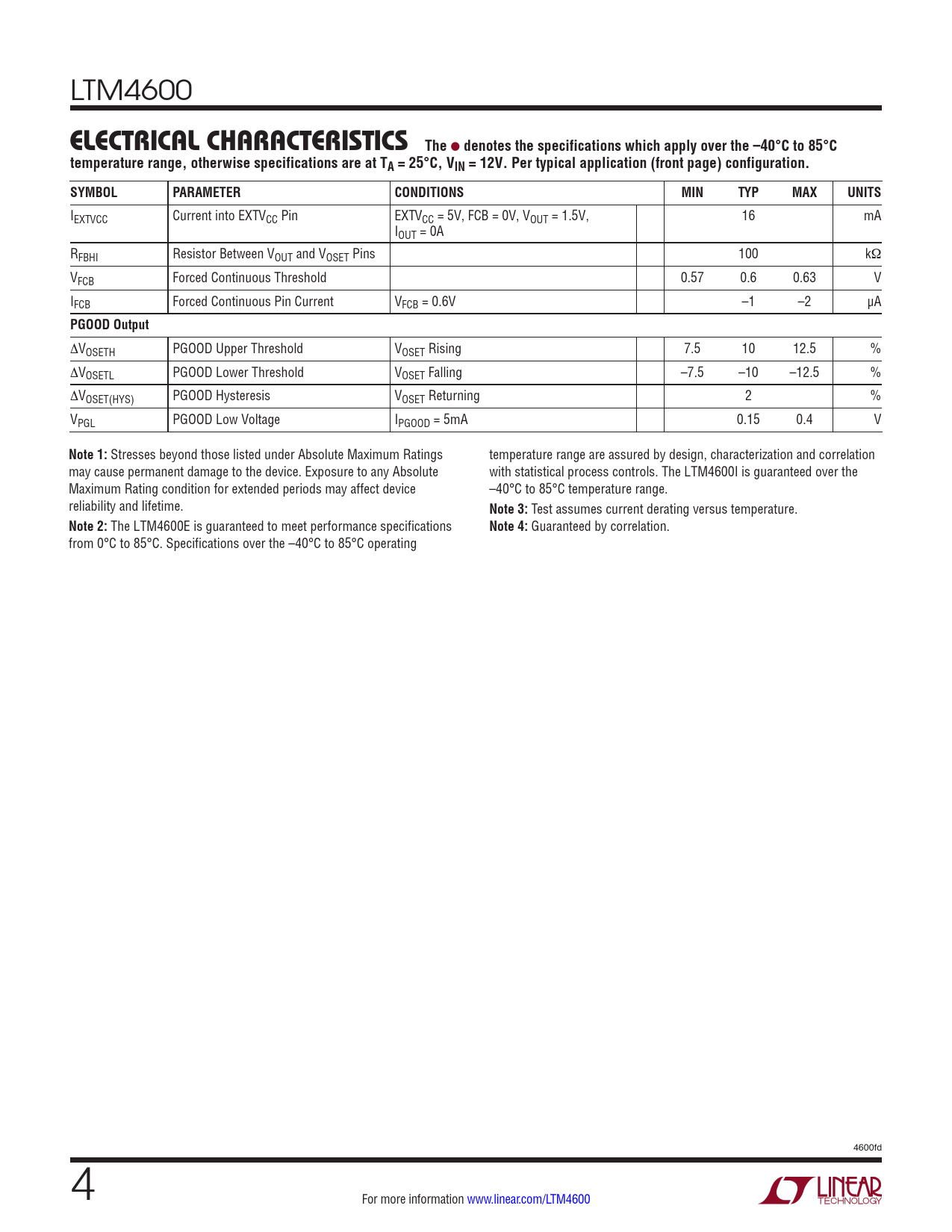

elecTrical characTerisTics The. denotes the specifications which apply over the –40°C to 85°C
Model Line for this Datasheet
Text Version of Document
LTM4600
elecTrical characTerisTics The
l
denotes the specifications which apply over the –40°C to 85°C temperature range, otherwise specifications are at TA = 25°C, VIN = 12V. Per typical application (front page) configuration. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IEXTVCC Current into EXTVCC Pin EXTVCC = 5V, FCB = 0V, VOUT = 1.5V, 16 mA IOUT = 0A RFBHI Resistor Between VOUT and VOSET Pins 100 kΩ VFCB Forced Continuous Threshold 0.57 0.6 0.63 V IFCB Forced Continuous Pin Current VFCB = 0.6V –1 –2 µA
PGOOD Output
ΔVOSETH PGOOD Upper Threshold VOSET Rising 7.5 10 12.5 % ΔVOSETL PGOOD Lower Threshold VOSET Falling –7.5 –10 –12.5 % ΔVOSET(HYS) PGOOD Hysteresis VOSET Returning 2 % VPGL PGOOD Low Voltage IPGOOD = 5mA 0.15 0.4 V
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings temperature range are assured by design, characterization and correlation may cause permanent damage to the device. Exposure to any Absolute with statistical process controls. The LTM4600I is guaranteed over the Maximum Rating condition for extended periods may affect device –40°C to 85°C temperature range. reliability and lifetime.
Note 3:
Test assumes current derating versus temperature.
Note 2:
The LTM4600E is guaranteed to meet performance specifications
Note 4:
Guaranteed by correlation. from 0°C to 85°C. Specifications over the –40°C to 85°C operating 4600fd 4 For more information www.linear.com/LTM4600 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Block Diagram Decoupling Requirements Operation Applications Information Typical Application Package Description Revision History Typical Application Related Parts
