Datasheet SRC (Songle Relay) - 2
| Manufacturer | Songle Relay |
| Description | Double Group Conversion Relay 1A |
| Pages / Page | 2 / 2 — SRC. Series. DOUBLE. GROUP. CONVERSION. RELAY. 1A. Safety. Approval. … |
| File Format / Size | PDF / 3.7 Mb |
| Document Language | English |
SRC. Series. DOUBLE. GROUP. CONVERSION. RELAY. 1A. Safety. Approval. Ratings. C. US. E167996. 1A. 125VAC. OUTLINE. DIMENSIONS. ,WIRING. DIAGRAM. AND. PC. BOARD
Model Line for this Datasheet
- SRC-05VDC-FH SRC-05VDC-FL SRC-05VDC-SH SRC-05VDC-SL SRC-06VDC-FH SRC-06VDC-FL SRC-06VDC-SH SRC-06VDC-SL SRC-09VDC-FH SRC-09VDC-FL SRC-09VDC-SH SRC-09VDC-SL SRC-12VDC-FH SRC-12VDC-FL SRC-12VDC-SH SRC-12VDC-SL SRC-18VDC-FH SRC-18VDC-FL SRC-18VDC-SH SRC-18VDC-SL SRC-24VDC-FH SRC-24VDC-FL SRC-24VDC-SH SRC-24VDC-SL
Text Version of Document

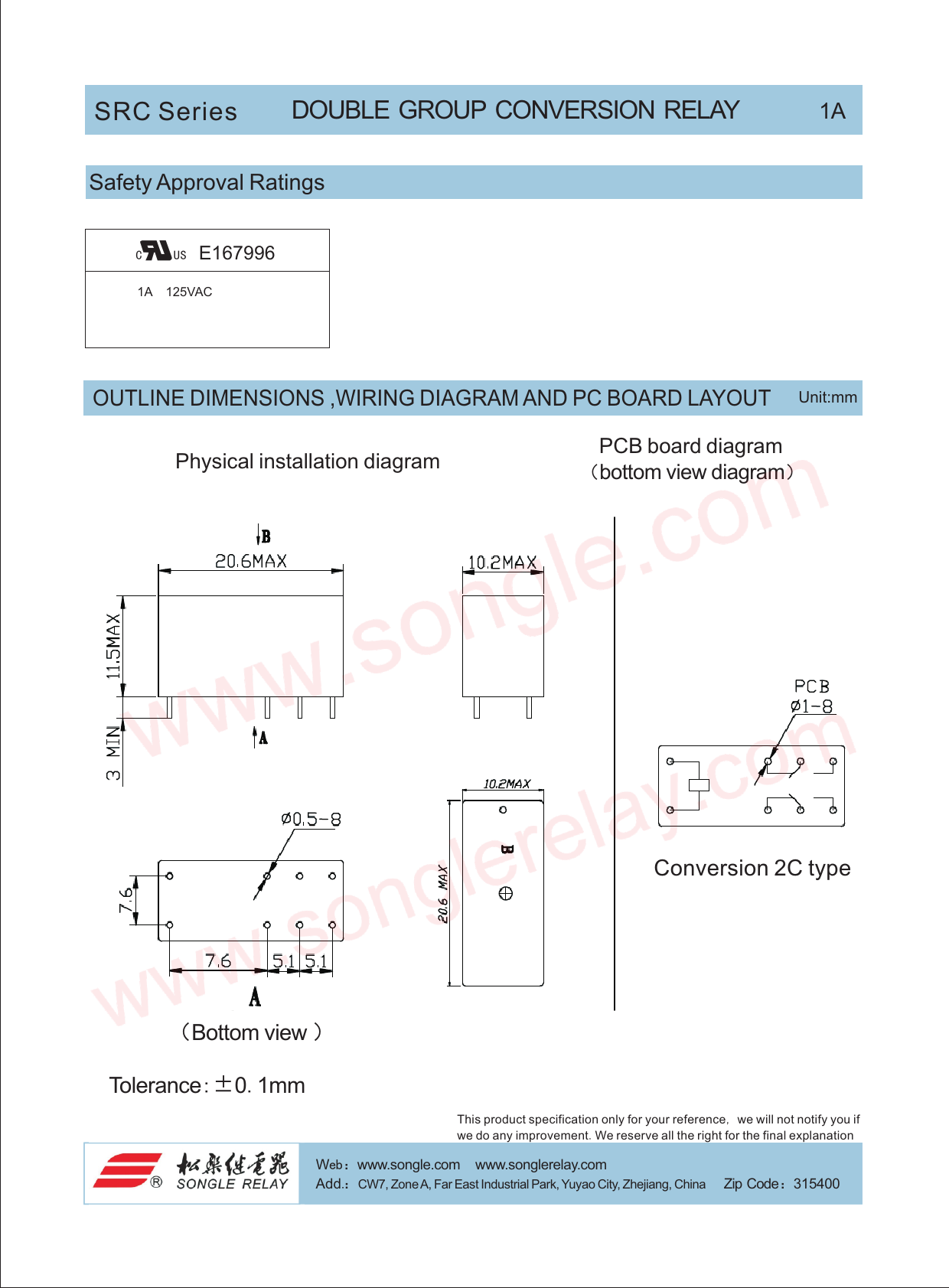

SRC Series DOUBLE GROUP CONVERSION RELAY 1A Safety Approval Ratings C US E167996 1A 125VAC OUTLINE DIMENSIONS ,WIRING DIAGRAM AND PC BOARD LAYOUT Unit:mm PCB board diagram Physical installation diagram （bottom view diagram） Conversion 2C type （Bottom view ） Tolerance:±0.1mm This product specification only for your reference, we will not notify you if we do any improvement.We reserve all the right for the final explanation Web：www.songle.com www.songlerelay.com Email:sale@songle.com Web：www.songle.com www.songlerelay.com Add.：CW7, Zone A, Far East Industrial Park, Yuyao City, Zhejiang, China i Z p Code：315400 Add.：CW7, Zone A, Far East Industrial Park, Yuyao City, Zhejiang, China Zip Code：315400 Tel.： +86 574 62717777 62762658 62721968 a F x：+86 574 62721978 Document Outline 页 1 页 2
