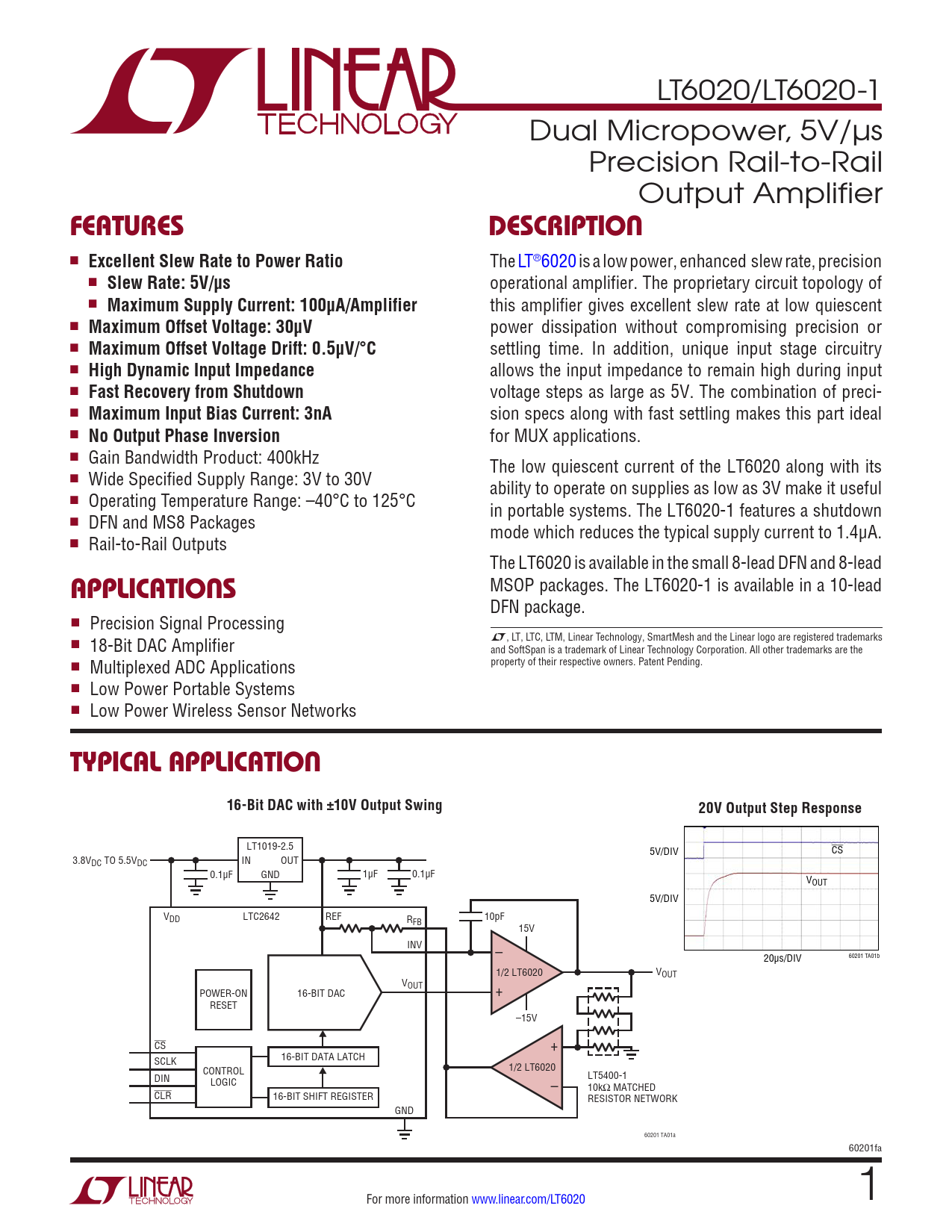

LT6020/LT6020-1 Dual Micropower, 5V/µs Precision Rail-to-Rail Output Amplifier
FeaTures DescripTion
n
Excellent Slew Rate to Power Ratio
The LT®6020 is a low power, enhanced slew rate, precision n
Slew Rate: 5V/μs
operational amplifier. The proprietary circuit topology of n
Maximum Supply Current: 100μA/Amplifier
this amplifier gives excellent slew rate at low quiescent n
Maximum Offset Voltage: 30μV
power dissipation without compromising precision or n
Maximum Offset Voltage Drift: 0.5μV/°C
settling time. In addition, unique input stage circuitry n
High Dynamic Input Impedance
allows the input impedance to remain high during input n
Fast Recovery from Shutdown
voltage steps as large as 5V. The combination of preci- n
Maximum Input Bias Current: 3nA
sion specs along with fast settling makes this part ideal n
No Output Phase Inversion
for MUX applications. n Gain Bandwidth Product: 400kHz The low quiescent current of the LT6020 along with its n Wide Specified Supply Range: 3V to 30V ability to operate on supplies as low as 3V make it useful n Operating Temperature Range: –40°C to 125°C in portable systems. The LT6020-1 features a shutdown n DFN and MS8 Packages mode which reduces the typical supply current to 1.4μA. n Rail-to-Rail Outputs The LT6020 is available in the small 8-lead DFN and 8-lead MSOP packages. The LT6020-1 is available in a 10-lead
applicaTions
DFN package. n Precision Signal Processing L, LT, LTC, LTM, Linear Technology, SmartMesh and the Linear logo are registered trademarks n 18-Bit DAC Amplifier and SoftSpan is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners. Patent Pending. n Multiplexed ADC Applications n Low Power Portable Systems n Low Power Wireless Sensor Networks
Typical applicaTion 16-Bit DAC with ±10V Output Swing 20V Output Step Response
LT1019-2.5 5V/DIV CS 3.8VDC TO 5.5VDC IN OUT 0.1µF GND 1µF 0.1µF VOUT 5V/DIV VDD LTC2642 REF R 10pF FB 15V INV – 60201 TA01b 20µs/DIV 1/2 LT6020 VOUT VOUT POWER-ON 16-BIT DAC + RESET –15V + CS SCLK 16-BIT DATA LATCH CONTROL 1/2 LT6020 DIN LT5400-1 LOGIC – 10kΩ MATCHED CLR 16-BIT SHIFT REGISTER RESISTOR NETWORK GND 60201 TA01a 60201fa For more information www.linear.com/LT6020 1 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Schematic Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
