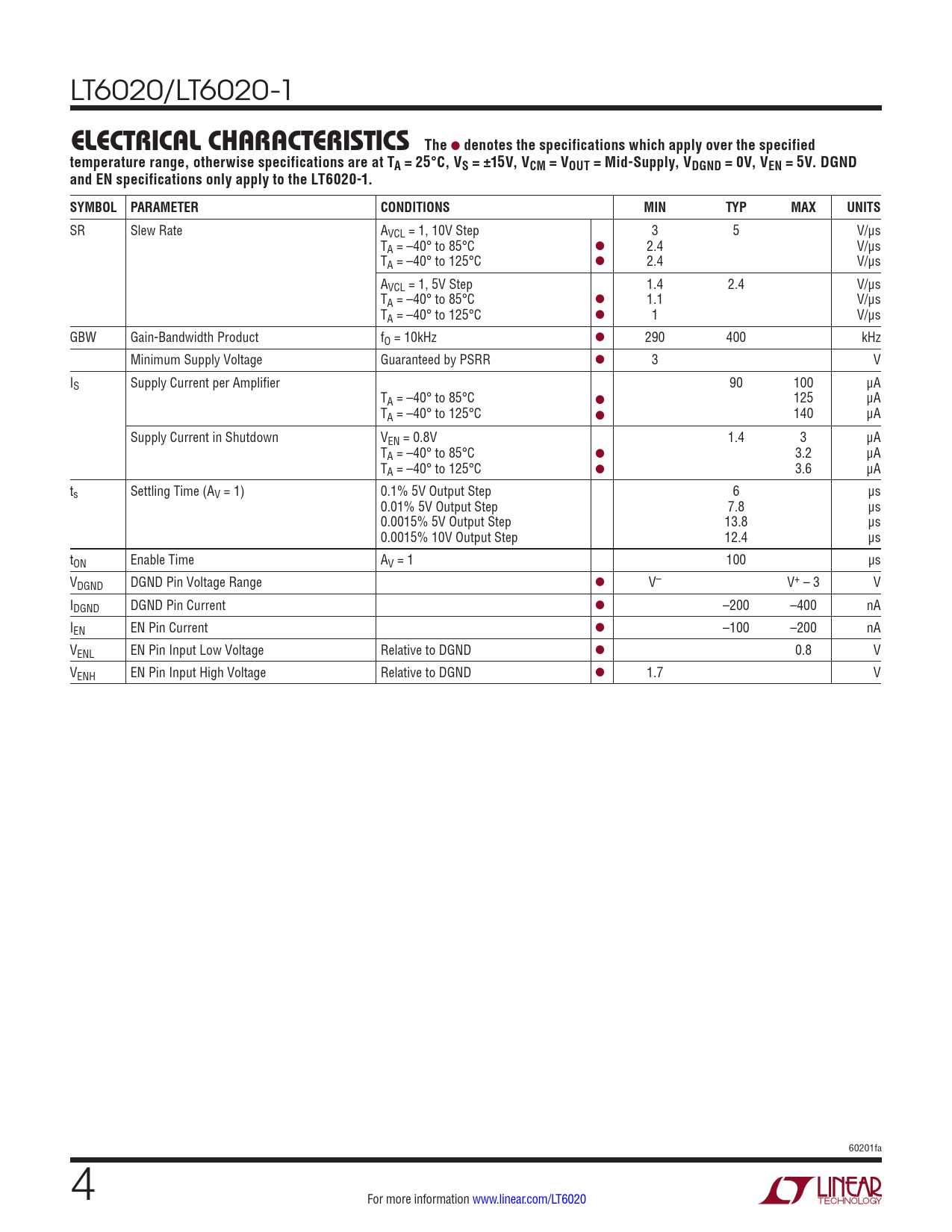

e lecTrical characTerisTics The. denotes the specifications which apply over the specified
Model Line for this Datasheet
Text Version of Document
LT6020/LT6020-1
e lecTrical characTerisTics The
l
denotes the specifications which apply over the specified temperature range, otherwise specifications are at TA = 25°C, VS = ±15V, VCM = VOUT = Mid-Supply, VDGND = 0V, VEN = 5V. DGND and EN specifications only apply to the LT6020-1. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
SR Slew Rate AVCL = 1, 10V Step 3 5 V/μs TA = –40° to 85°C l 2.4 V/μs TA = –40° to 125°C l 2.4 V/μs AVCL = 1, 5V Step 1.4 2.4 V/μs TA = –40° to 85°C l 1.1 V/μs TA = –40° to 125°C l 1 V/μs GBW Gain-Bandwidth Product fO = 10kHz l 290 400 kHz Minimum Supply Voltage Guaranteed by PSRR l 3 V IS Supply Current per Amplifier
90 100 μA TA = –40° to 85°C l 125 μA TA = –40° to 125°C l 140 μA Supply Current in Shutdown VEN = 0.8V 1.4 3 μA TA = –40° to 85°C l 3.2 μA TA = –40° to 125°C l 3.6 μA ts Settling Time (AV = 1) 0.1% 5V Output Step 6 μs 0.01% 5V Output Step 7.8 μs 0.0015% 5V Output Step 13.8 μs 0.0015% 10V Output Step 12.4 μs tON Enable Time AV = 1 100 µs VDGND DGND Pin Voltage Range l V– V+ – 3 V IDGND DGND Pin Current l –200 –400 nA IEN EN Pin Current l –100 –200 nA VENL EN Pin Input Low Voltage Relative to DGND l 0.8 V VENH EN Pin Input High Voltage Relative to DGND l 1.7 V 60201fa 4 For more information www.linear.com/LT6020 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Schematic Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
