Datasheet LTC6084, LTC6085 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Dual/Quad 1.5MHz, Rail-to-Rail, CMOS Amplifiers |
| Pages / Page | 16 / 5 — The. ELECTRICAL CHARACTERISTICS. denotes the specifi cations which apply … |
| File Format / Size | PDF / 247 Kb |
| Document Language | English |

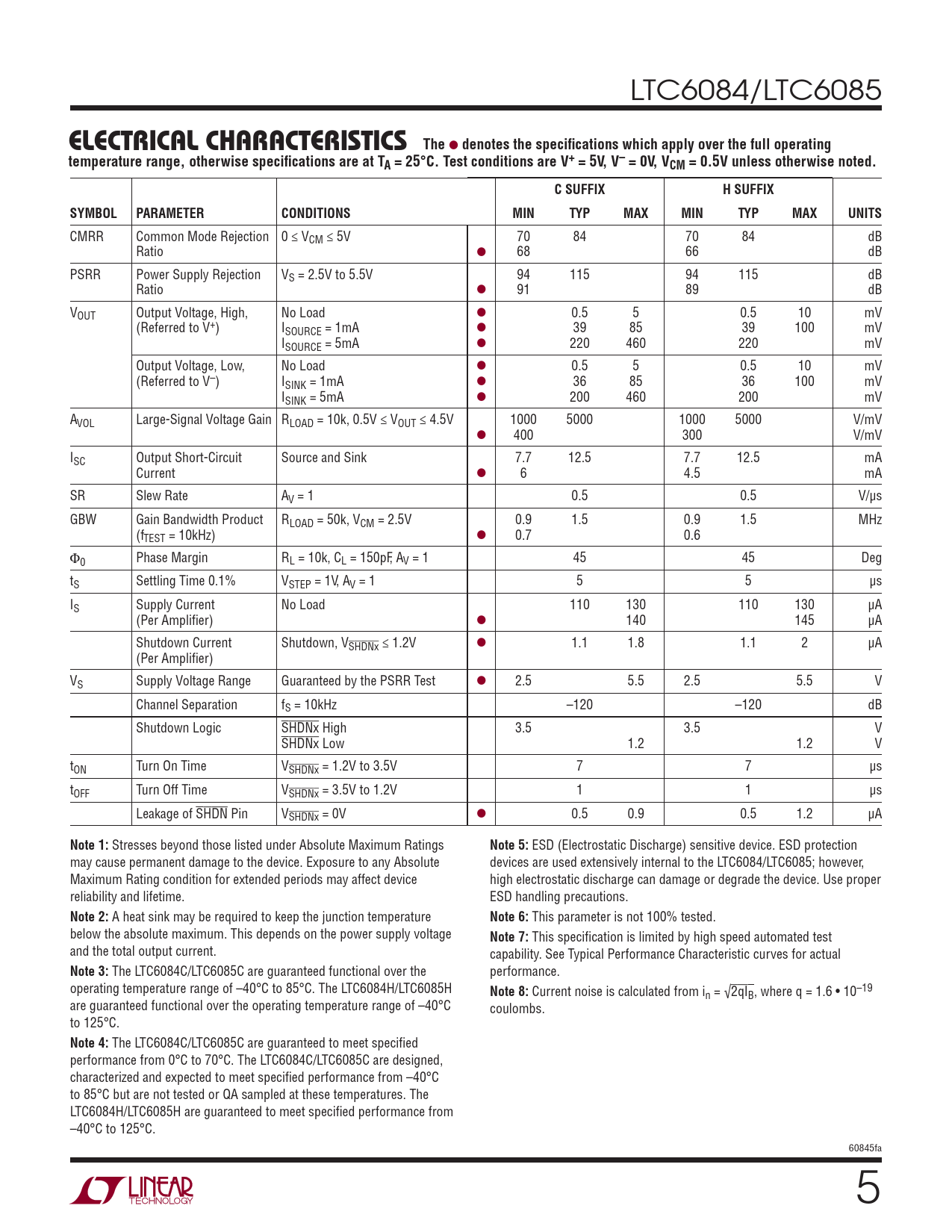

The. ELECTRICAL CHARACTERISTICS. denotes the specifi cations which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LTC6084/LTC6085
The ELECTRICAL CHARACTERISTICS
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. Test conditions are V+ = 5V, V– = 0V, VCM = 0.5V unless otherwise noted. C SUFFIX H SUFFIX SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
CMRR Common Mode Rejection 0 ≤ VCM ≤ 5V 70 84 70 84 dB Ratio l 68 66 dB PSRR Power Supply Rejection VS = 2.5V to 5.5V 94 115 94 115 dB Ratio l 91 89 dB VOUT Output Voltage, High, No Load l 0.5 5 0.5 10 mV (Referred to V+) ISOURCE = 1mA l 39 85 39 100 mV ISOURCE = 5mA l 220 460 220 mV Output Voltage, Low, No Load l 0.5 5 0.5 10 mV (Referred to V–) ISINK = 1mA l 36 85 36 100 mV ISINK = 5mA l 200 460 200 mV AVOL Large-Signal Voltage Gain RLOAD = 10k, 0.5V ≤ VOUT ≤ 4.5V 1000 5000 1000 5000 V/mV l 400 300 V/mV ISC Output Short-Circuit Source and Sink 7.7 12.5 7.7 12.5 mA Current l 6 4.5 mA SR Slew Rate AV = 1 0.5 0.5 V/μs GBW Gain Bandwidth Product RLOAD = 50k, VCM = 2.5V 0.9 1.5 0.9 1.5 MHz (fTEST = 10kHz) l 0.7 0.6 Φ0 Phase Margin RL = 10k, CL = 150pF, AV = 1 45 45 Deg tS Settling Time 0.1% VSTEP = 1V, AV = 1 5 5 μs IS Supply Current No Load 110 130 110 130 μA (Per Amplifi er) l 140 145 μA Shutdown Current Shutdown, VSHDNx ≤ 1.2V l 1.1 1.8 1.1 2 μA (Per Amplifi er) VS Supply Voltage Range Guaranteed by the PSRR Test l 2.5 5.5 2.5 5.5 V Channel Separation fS = 10kHz –120 –120 dB Shutdown Logic SHDNx High 3.5 3.5 V SHDNx Low 1.2 1.2 V tON Turn On Time VSHDNx = 1.2V to 3.5V 7 7 μs tOFF Turn Off Time VSHDNx = 3.5V to 1.2V 1 1 μs Leakage of SHDN Pin VSHDNx = 0V l 0.5 0.9 0.5 1.2 μA
