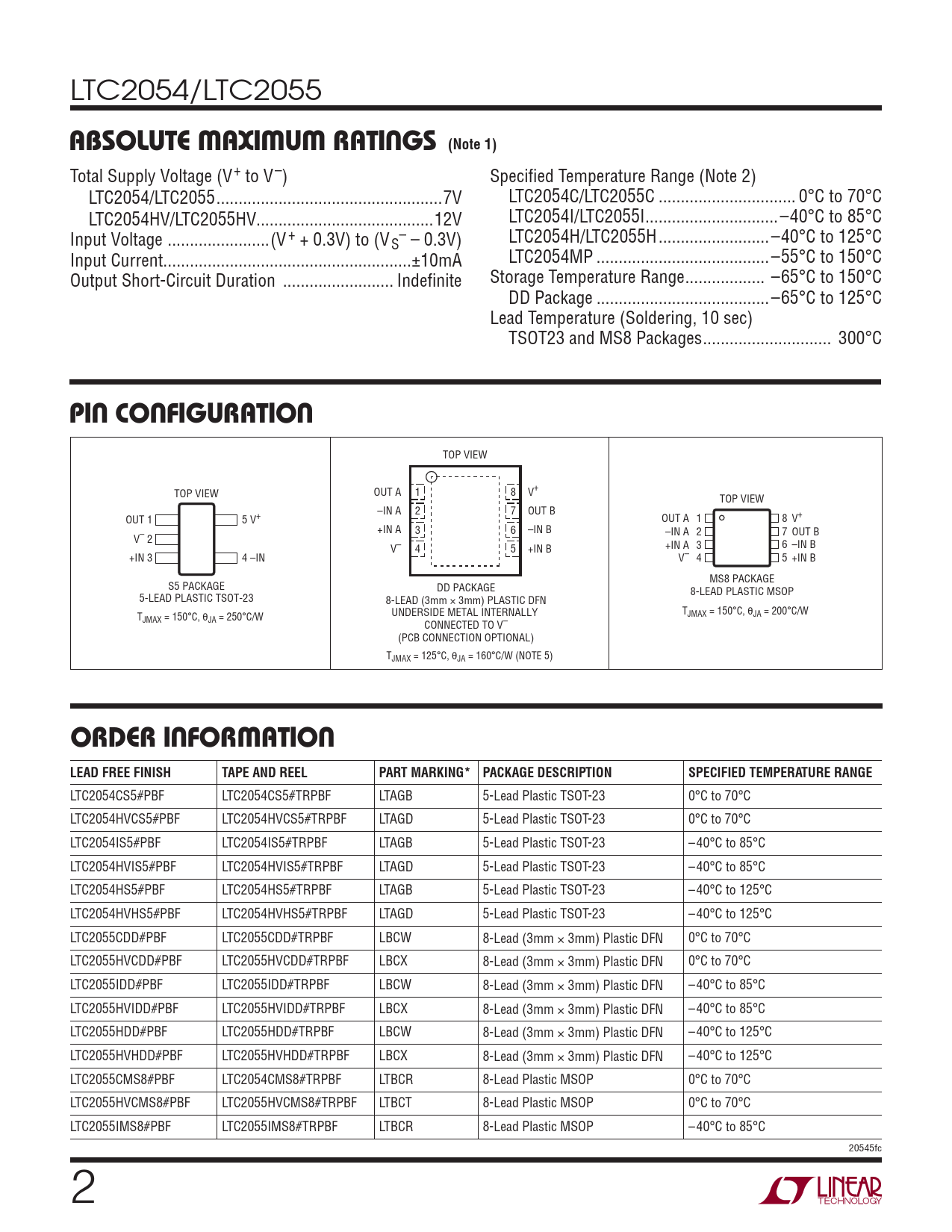

LTC2054/LTC2055
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) Specifi ed Temperature Range (Note 2) LTC2054/LTC2055 ...7V LTC2054C/LTC2055C ... 0°C to 70°C LTC2054HV/LTC2055HV..12V LTC2054I/LTC2055I .. –40°C to 85°C Input Voltage ...(V + + 0.3V) to (V – LTC2054H/LTC2055H ... –40°C to 125°C S – 0.3V) Input Current ..±10mA LTC2054MP ... –55°C to 150°C Output Short-Circuit Duration ... Indefi nite Storage Temperature Range .. –65°C to 150°C DD Package ... –65°C to 125°C Lead Temperature (Soldering, 10 sec) TSOT23 and MS8 Packages ... 300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW OUT A 1 8 V+ TOP VIEW –IN A 2 7 OUT B OUT 1 5 V+ OUT A 1 8 V+ +IN A 3 6 –IN B –IN A 2 7 OUT B V– 2 V– 4 5 +IN B +IN A 3 6 –IN B +IN 3 4 –IN V– 4 5 +IN B MS8 PACKAGE S5 PACKAGE DD PACKAGE 8-LEAD PLASTIC MSOP 5-LEAD PLASTIC TSOT-23 8-LEAD (3mm × 3mm) PLASTIC DFN T T UNDERSIDE METAL INTERNALLY JMAX = 150°C, θJA = 200°C/W JMAX = 150°C, θJA = 250°C/W CONNECTED TO V– (PCB CONNECTION OPTIONAL) TJMAX = 125°C, θJA = 160°C/W (NOTE 5)
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC2054CS5#PBF LTC2054CS5#TRPBF LTAGB 5-Lead Plastic TSOT-23 0°C to 70°C LTC2054HVCS5#PBF LTC2054HVCS5#TRPBF LTAGD 5-Lead Plastic TSOT-23 0°C to 70°C LTC2054IS5#PBF LTC2054IS5#TRPBF LTAGB 5-Lead Plastic TSOT-23 –40°C to 85°C LTC2054HVIS5#PBF LTC2054HVIS5#TRPBF LTAGD 5-Lead Plastic TSOT-23 –40°C to 85°C LTC2054HS5#PBF LTC2054HS5#TRPBF LTAGB 5-Lead Plastic TSOT-23 –40°C to 125°C LTC2054HVHS5#PBF LTC2054HVHS5#TRPBF LTAGD 5-Lead Plastic TSOT-23 –40°C to 125°C LTC2055CDD#PBF LTC2055CDD#TRPBF LBCW 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC2055HVCDD#PBF LTC2055HVCDD#TRPBF LBCX 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC2055IDD#PBF LTC2055IDD#TRPBF LBCW 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC2055HVIDD#PBF LTC2055HVIDD#TRPBF LBCX 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC2055HDD#PBF LTC2055HDD#TRPBF LBCW 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC2055HVHDD#PBF LTC2055HVHDD#TRPBF LBCX 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC2055CMS8#PBF LTC2054CMS8#TRPBF LTBCR 8-Lead Plastic MSOP 0°C to 70°C LTC2055HVCMS8#PBF LTC2055HVCMS8#TRPBF LTBCT 8-Lead Plastic MSOP 0°C to 70°C LTC2055IMS8#PBF LTC2055IMS8#TRPBF LTBCR 8-Lead Plastic MSOP –40°C to 85°C 20545fc 2
