Datasheet LT8601 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | 42V Triple Monolithic Synchronous Step-Down Regulator |
| Pages / Page | 26 / 2 — absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). orDer inForMaTion … |
| File Format / Size | PDF / 1.6 Mb |
| Document Language | English |

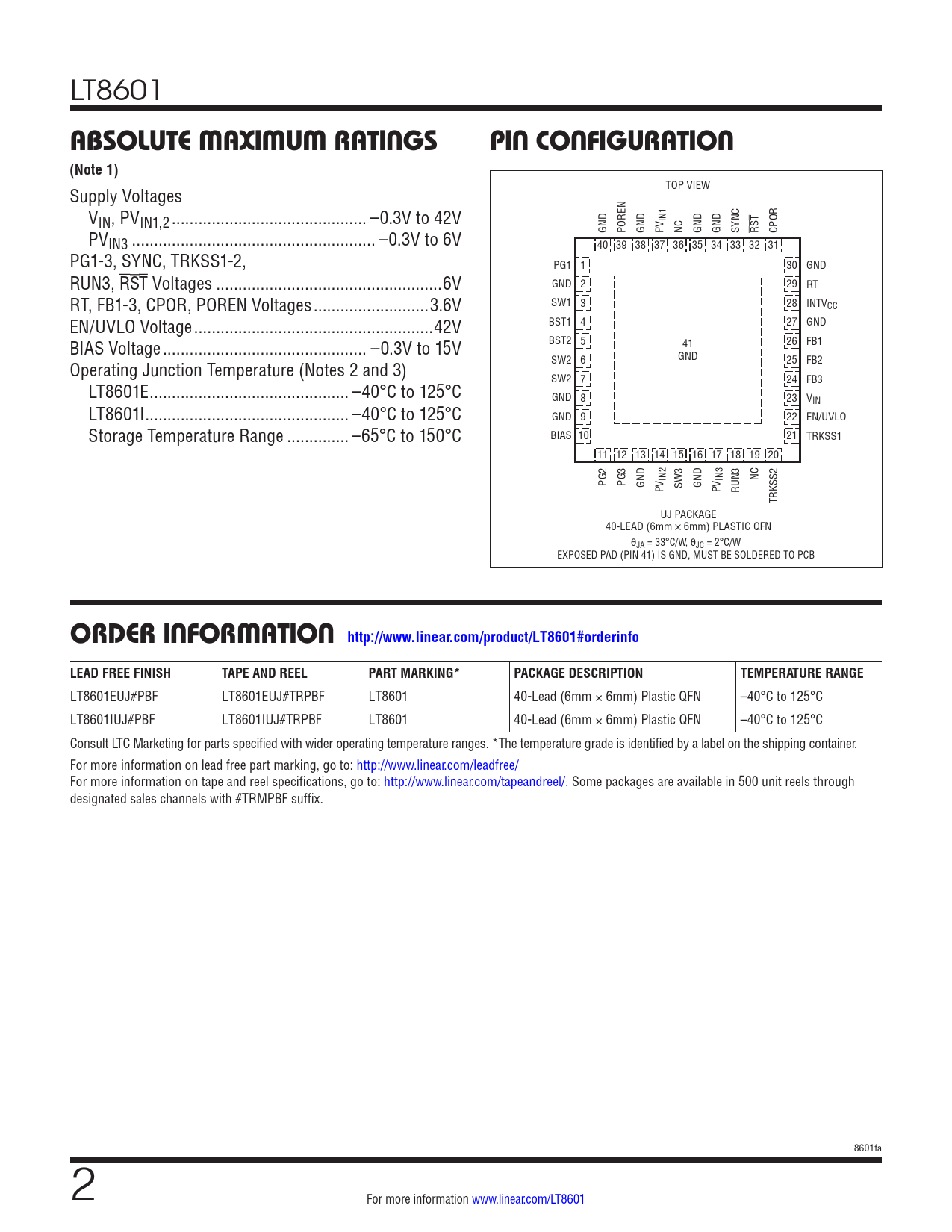

absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). orDer inForMaTion http://www.linear.com/product/LT8601#orderinfo
Text Version of Document
LT8601
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
Supply Voltages TOP VIEW VIN, PVIN1,2 .. –0.3V to 42V IN1 PV GND POREN GND PV NC GND GND SYNC RST CPOR IN3 ... –0.3V to 6V 40 39 38 37 36 35 34 33 32 31 PG1-3, SYNC, TRKSS1-2, PG1 1 30 GND RUN3, RST Voltages ...6V GND 2 29 RT RT, FB1-3, CPOR, POREN Voltages ..3.6V SW1 3 28 INTVCC EN/UVLO Voltage ..42V BST1 4 27 GND BIAS Voltage .. –0.3V to 15V BST2 5 41 26 FB1 GND Operating Junction Temperature (Notes 2 and 3) SW2 6 25 FB2 SW2 7 24 FB3 LT8601E ... –40°C to 125°C GND 8 23 VIN LT8601I .. –40°C to 125°C GND 9 22 EN/UVLO Storage Temperature Range .. –65°C to 150°C BIAS 10 21 TRKSS1 11 12 13 14 15 16 17 18 19 20 PG2 PG3 NC GND IN2 IN3 PV SW3 GND PV RUN3 TRKSS2 UJ PACKAGE 40-LEAD (6mm × 6mm) PLASTIC QFN θJA = 33°C/W, θJC = 2°C/W EXPOSED PAD (PIN 41) IS GND, MUST BE SOLDERED TO PCB
orDer inForMaTion http://www.linear.com/product/LT8601#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT8601EUJ#PBF LT8601EUJ#TRPBF LT8601 40-Lead (6mm × 6mm) Plastic QFN –40°C to 125°C LT8601IUJ#PBF LT8601IUJ#TRPBF LT8601 40-Lead (6mm × 6mm) Plastic QFN –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 8601fa 2 For more information www.linear.com/LT8601 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
