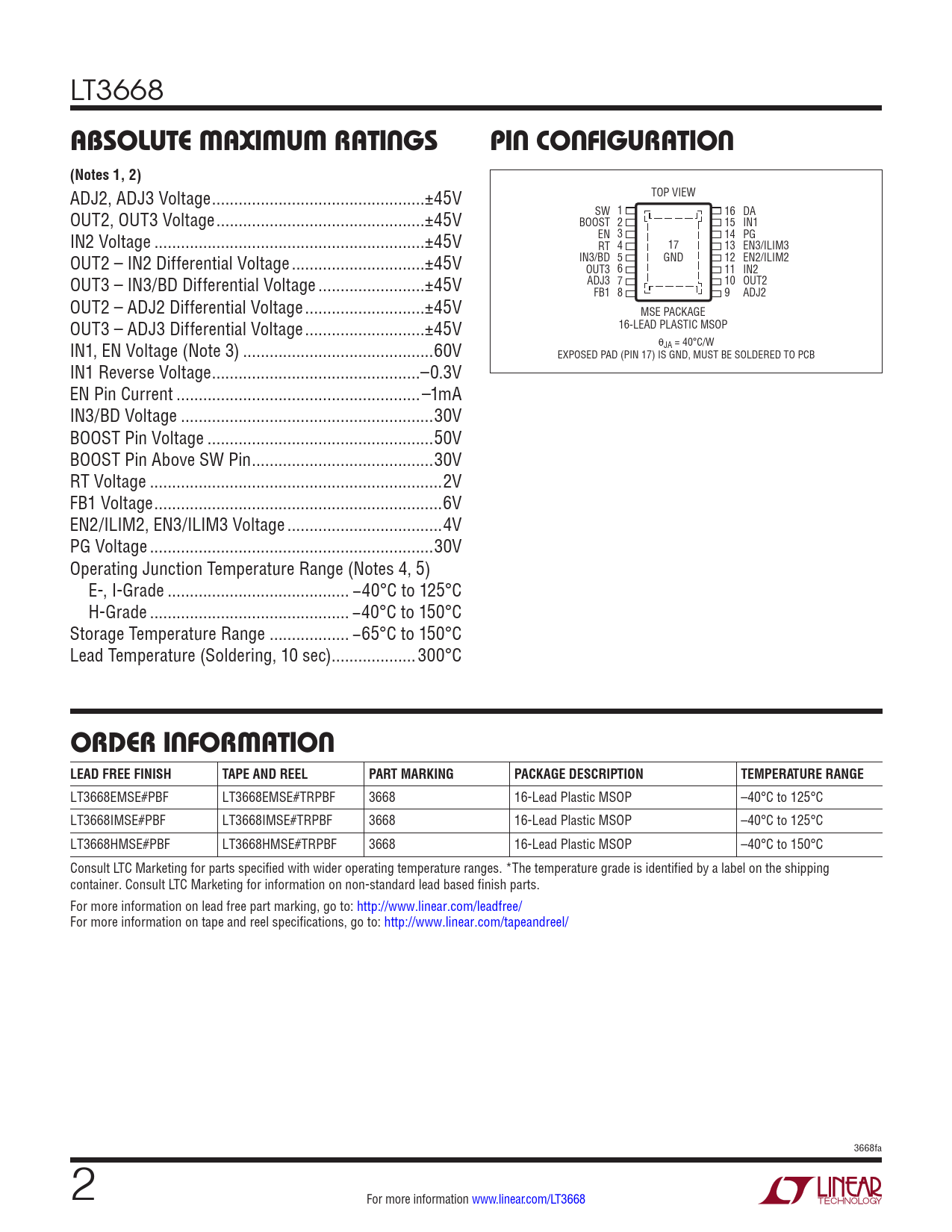

LT3668
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Notes 1, 2)
ADJ2, ADJ3 Voltage ..±45V TOP VIEW OUT2, OUT3 Voltage ...±45V SW 1 16 DA BOOST 2 15 IN1 IN2 Voltage ...±45V EN 3 14 PG RT 4 17 13 EN3/ILIM3 OUT2 – IN2 Differential Voltage ..±45V IN3/BD 5 GND 12 EN2/ILIM2 OUT3 6 11 IN2 OUT3 – IN3/BD Differential Voltage ..±45V ADJ3 7 10 OUT2 FB1 8 9 ADJ2 OUT2 – ADJ2 Differential Voltage ...±45V MSE PACKAGE OUT3 – ADJ3 Differential Voltage ...±45V 16-LEAD PLASTIC MSOP IN1, EN Voltage (Note 3) ...60V θJA = 40°C/W EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB IN1 Reverse Voltage ...–0.3V EN Pin Current ...–1mA IN3/BD Voltage ...30V BOOST Pin Voltage ...50V BOOST Pin Above SW Pin ...30V RT Voltage ..2V FB1 Voltage ...6V EN2/ILIM2, EN3/ILIM3 Voltage ...4V PG Voltage ..30V Operating Junction Temperature Range (Notes 4, 5) E-, I-Grade ... −40°C to 125°C H-Grade ... −40°C to 150°C Storage Temperature Range .. −65°C to 150°C Lead Temperature (Soldering, 10 sec) ...300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3668EMSE#PBF LT3668EMSE#TRPBF 3668 16-Lead Plastic MSOP –40°C to 125°C LT3668IMSE#PBF LT3668IMSE#TRPBF 3668 16-Lead Plastic MSOP –40°C to 125°C LT3668HMSE#PBF LT3668HMSE#TRPBF 3668 16-Lead Plastic MSOP –40°C to 150°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 3668fa 2 For more information www.linear.com/LT3668 Document Outline Features Applications Description Typical Application Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Application Related Parts
