Datasheet LT3971, LT3971-3.3, LT3971-5 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 38V, 1.2A, 2MHz Step-Down Regulator with 2.8μA Quiescent Current |
| Pages / Page | 28 / 5 — TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. … |
| File Format / Size | PDF / 643 Kb |
| Document Language | English |

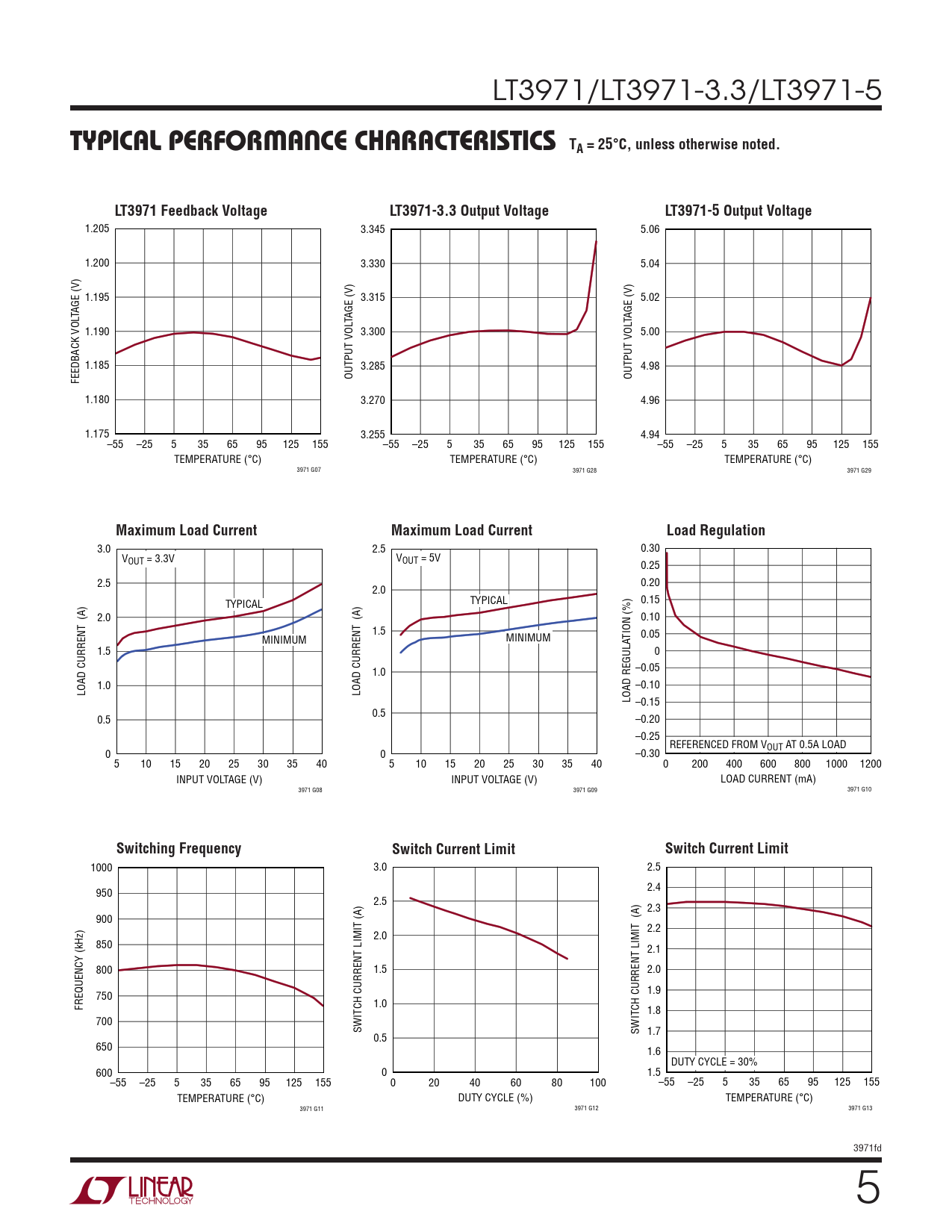

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. LT3971 Feedback Voltage. LT3971-3.3 Output Voltage
