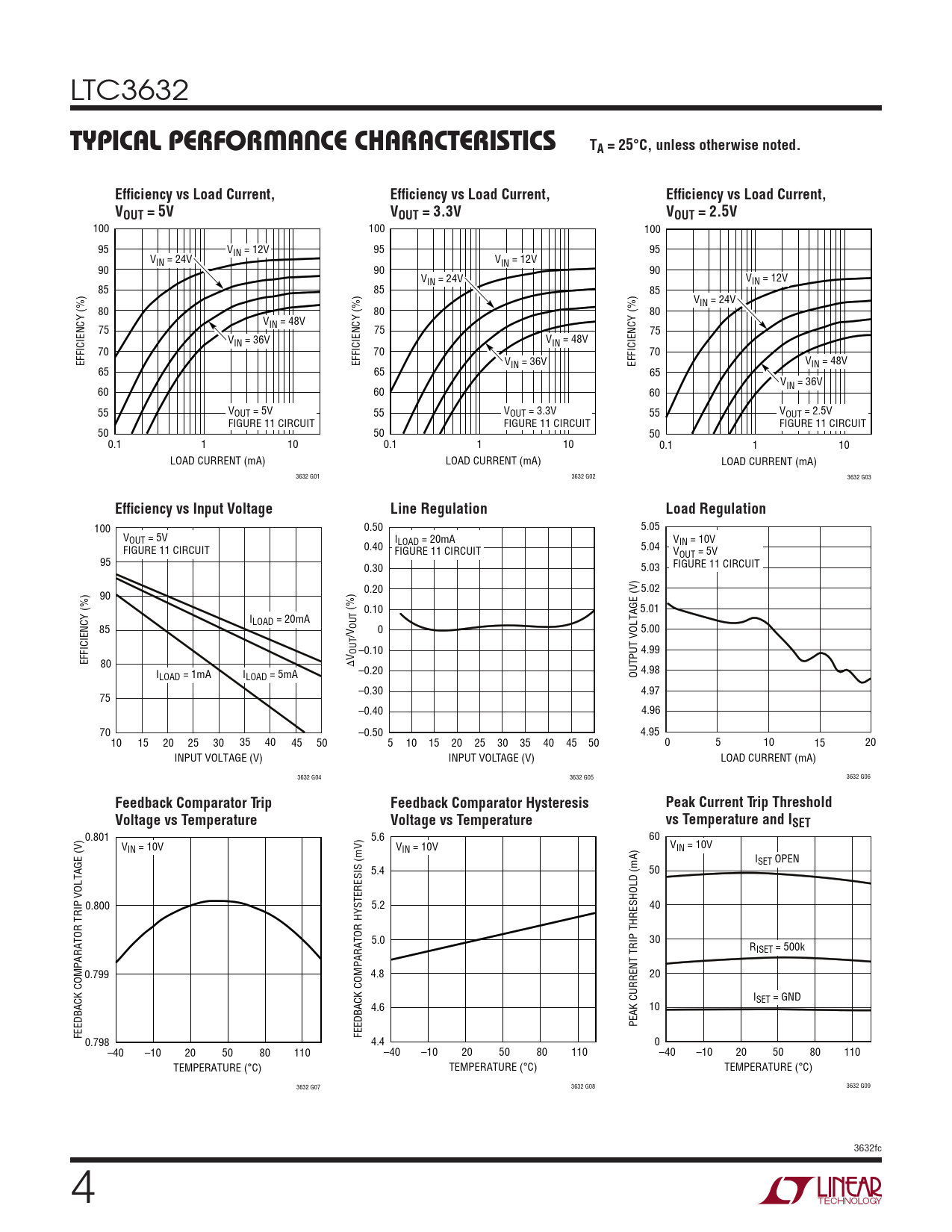

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Efficiency vs Load Current,. VOUT = 5V. VOUT = 3.3V
