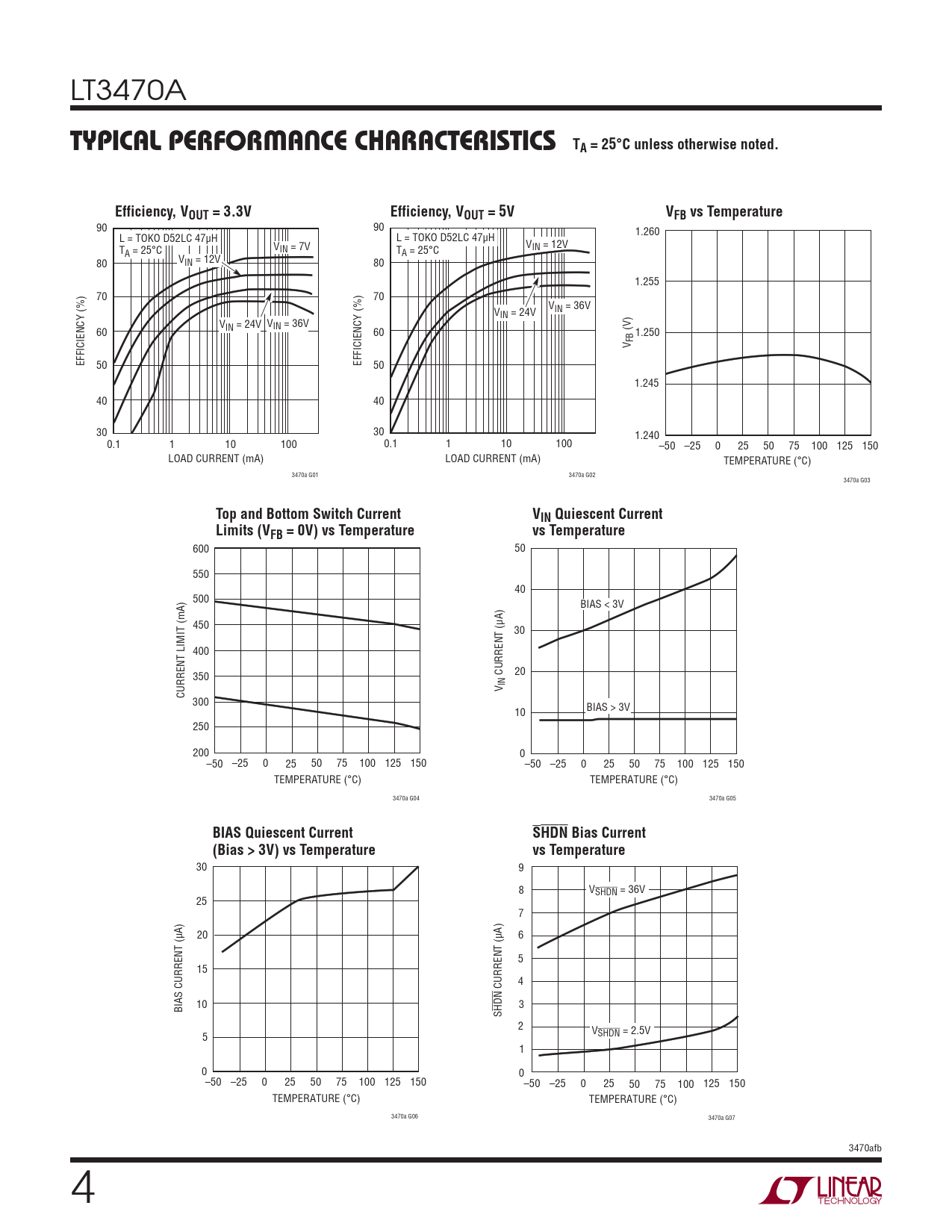

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C unless otherwise noted. Efficiency, VOUT = 3.3V. Efficiency, VOUT = 5V
