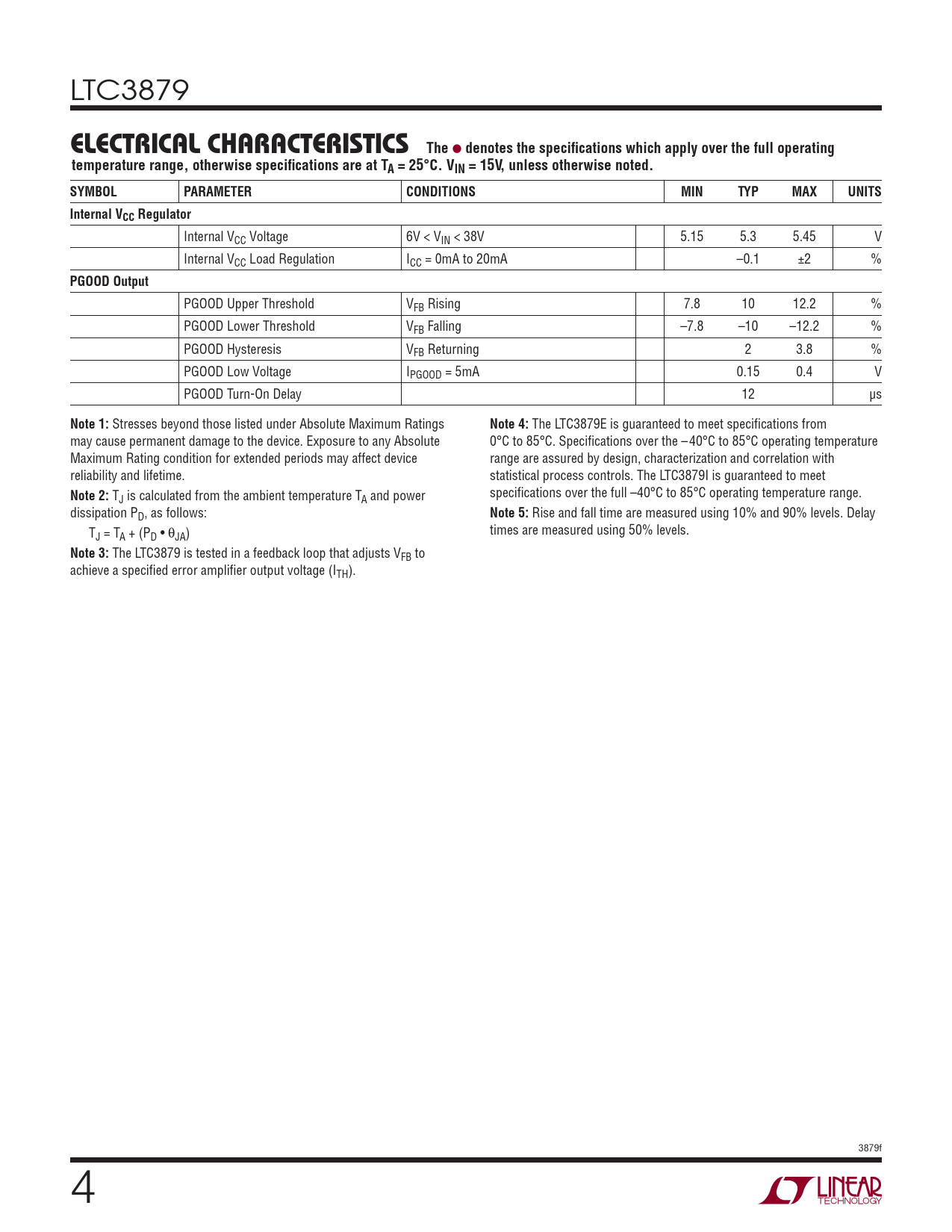

ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LTC3879
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VIN = 15V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Internal VCC Regulator
Internal VCC Voltage 6V < VIN < 38V 5.15 5.3 5.45 V Internal VCC Load Regulation ICC = 0mA to 20mA –0.1 ±2 %
PGOOD Output
PGOOD Upper Threshold VFB Rising 7.8 10 12.2 % PGOOD Lower Threshold VFB Falling –7.8 –10 –12.2 % PGOOD Hysteresis VFB Returning 2 3.8 % PGOOD Low Voltage IPGOOD = 5mA 0.15 0.4 V PGOOD Turn-On Delay 12 μs
