Datasheet LTC3810-5 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | 60V Current Mode Synchronous Switching Regulator Controller |
| Pages / Page | 38 / 8 — Typical perForMance characTerisTics. INTVCC Shutdown Current. SS/TRACK … |
| File Format / Size | PDF / 544 Kb |
| Document Language | English |

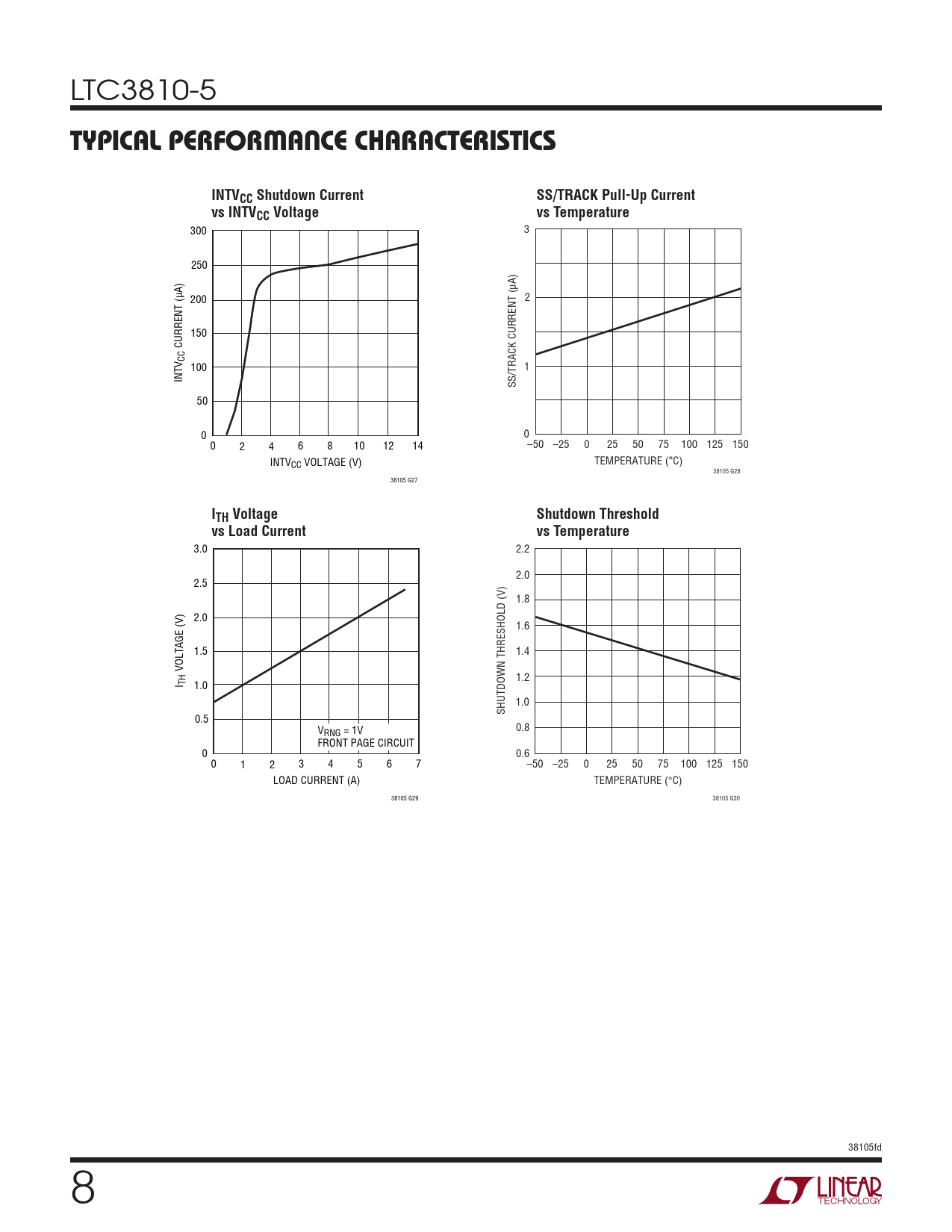

Typical perForMance characTerisTics. INTVCC Shutdown Current. SS/TRACK Pull-Up Current. vs INTVCC Voltage. vs Temperature
Model Line for this Datasheet
Text Version of Document
LTC3810-5
Typical perForMance characTerisTics INTVCC Shutdown Current SS/TRACK Pull-Up Current vs INTVCC Voltage vs Temperature
300 3 250 200 2 150 CURRENT (µA) CC 100 1 INTV SS/TRACK CURRENT (µA) 50 0 0 0 2 4 6 8 10 12 14 –50 –25 0 25 50 75 100 125 150 INTVCC VOLTAGE (V) TEMPERATURE (°C) 38105 G28 38105 G27
ITH Voltage Shutdown Threshold vs Load Current vs Temperature
3.0 2.2 2.0 2.5 1.8 2.0 1.6 1.5 1.4 VOLTAGE (V) 1.2 I TH 1.0 1.0 SHUTDOWN THRESHOLD (V) 0.5 V 0.8 RNG = 1V FRONT PAGE CIRCUIT 0 0.6 0 1 2 3 4 5 6 7 –50 –25 0 25 50 75 100 125 150 LOAD CURRENT (A) TEMPERATURE (°C) 38105 G29 38105 G30 38105fd 8 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Functional Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
