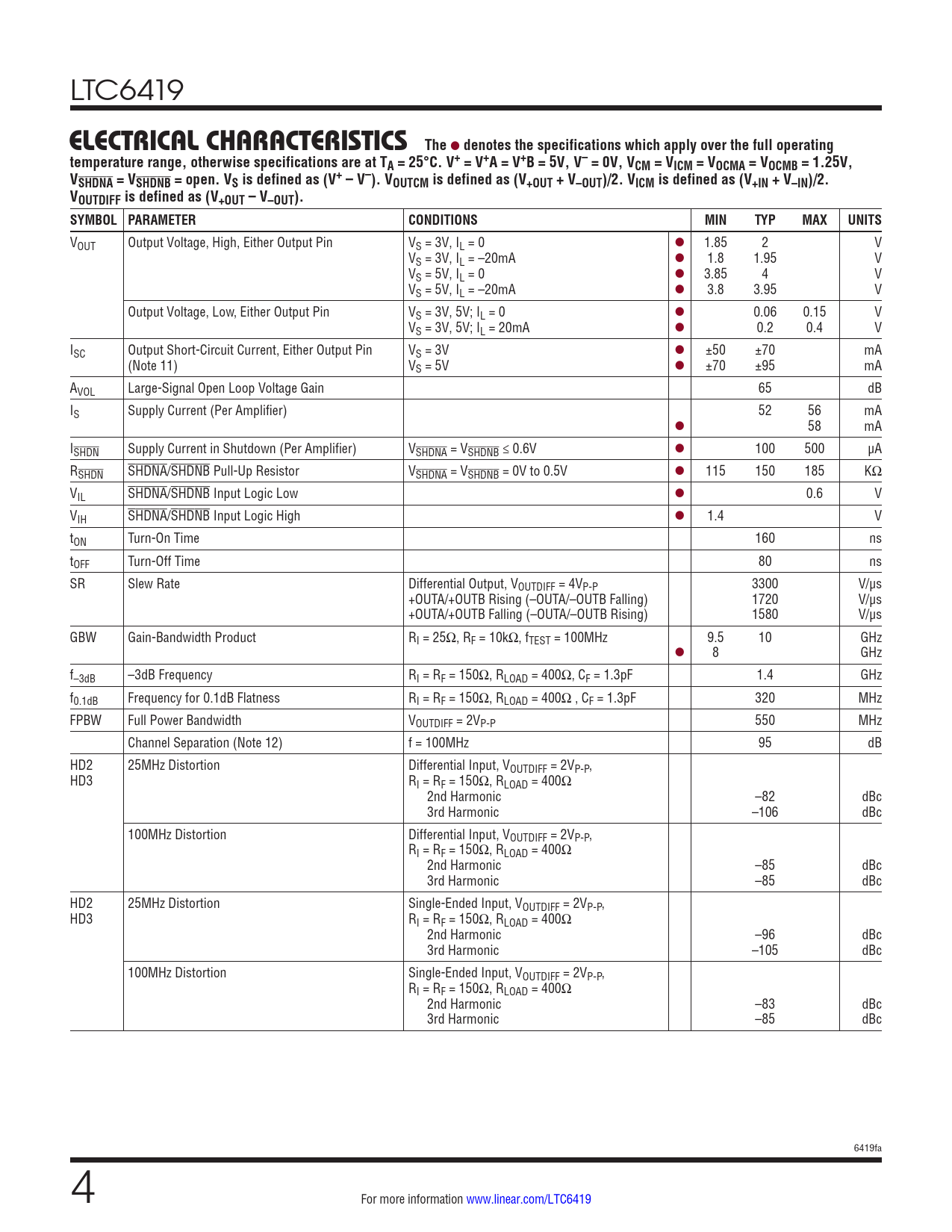

ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LTC6419
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. V+ = V+A = V+B = 5V, V– = 0V, VCM = VICM = VOCMA = VOCMB = 1.25V, VSHDNA = VSHDNB = open. VS is defined as (V+ – V–). VOUTCM is defined as (V+OUT + V–OUT)/2. VICM is defined as (V+IN + V–IN)/2. VOUTDIFF is defined as (V+OUT – V–OUT). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOUT Output Voltage, High, Either Output Pin VS = 3V, IL = 0 l 1.85 2 V VS = 3V, IL = –20mA l 1.8 1.95 V VS = 5V, IL = 0 l 3.85 4 V VS = 5V, IL = –20mA l 3.8 3.95 V Output Voltage, Low, Either Output Pin VS = 3V, 5V; IL = 0 l 0.06 0.15 V VS = 3V, 5V; IL = 20mA l 0.2 0.4 V ISC Output Short-Circuit Current, Either Output Pin VS = 3V l ±50 ±70 mA (Note 11) VS = 5V l ±70 ±95 mA AVOL Large-Signal Open Loop Voltage Gain 65 dB IS Supply Current (Per Amplifier) 52 56 mA l 58 mA ISHDN Supply Current in Shutdown (Per Amplifier) VSHDNA = VSHDNB ≤ 0.6V l 100 500 µA RSHDN SHDNA/SHDNB Pull-Up Resistor VSHDNA = VSHDNB = 0V to 0.5V l 115 150 185 KΩ VIL SHDNA/SHDNB Input Logic Low l 0.6 V VIH SHDNA/SHDNB Input Logic High l 1.4 V tON Turn-On Time 160 ns tOFF Turn-Off Time 80 ns SR Slew Rate Differential Output, VOUTDIFF = 4VP-P 3300 V/µs +OUTA/+OUTB Rising (–OUTA/–OUTB Falling) 1720 V/µs +OUTA/+OUTB Falling (–OUTA/–OUTB Rising) 1580 V/µs GBW Gain-Bandwidth Product RI = 25Ω, RF = 10kΩ, fTEST = 100MHz 9.5 10 GHz l 8 GHz f–3dB –3dB Frequency RI = RF = 150Ω, RLOAD = 400Ω, CF = 1.3pF 1.4 GHz f0.1dB Frequency for 0.1dB Flatness RI = RF = 150Ω, RLOAD = 400Ω , CF = 1.3pF 320 MHz FPBW Full Power Bandwidth VOUTDIFF = 2VP-P 550 MHz Channel Separation (Note 12) f = 100MHz 95 dB HD2 25MHz Distortion Differential Input, VOUTDIFF = 2VP-P, HD3 RI = RF = 150Ω, RLOAD = 400Ω 2nd Harmonic –82 dBc 3rd Harmonic –106 dBc 100MHz Distortion Differential Input, VOUTDIFF = 2VP-P, RI = RF = 150Ω, RLOAD = 400Ω 2nd Harmonic –85 dBc 3rd Harmonic –85 dBc HD2 25MHz Distortion Single-Ended Input, VOUTDIFF = 2VP-P, HD3 RI = RF = 150Ω, RLOAD = 400Ω 2nd Harmonic –96 dBc 3rd Harmonic –105 dBc 100MHz Distortion Single-Ended Input, VOUTDIFF = 2VP-P, RI = RF = 150Ω, RLOAD = 400Ω 2nd Harmonic –83 dBc 3rd Harmonic –85 dBc 6419fa 4 For more information www.linear.com/LTC6419 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Typical Performance Characteristics Pin Functions Applications Information Typical Applications Typical Applications Related Parts
