FeaTures. DescripTion. 50.0dBm OIP3 at 240MHz into a 100Ω Diff Load. NF = 3.0dB at 240MHz. 20MHz to 2000MHz Bandwidth
Model Line for this Datasheet
Text Version of Document

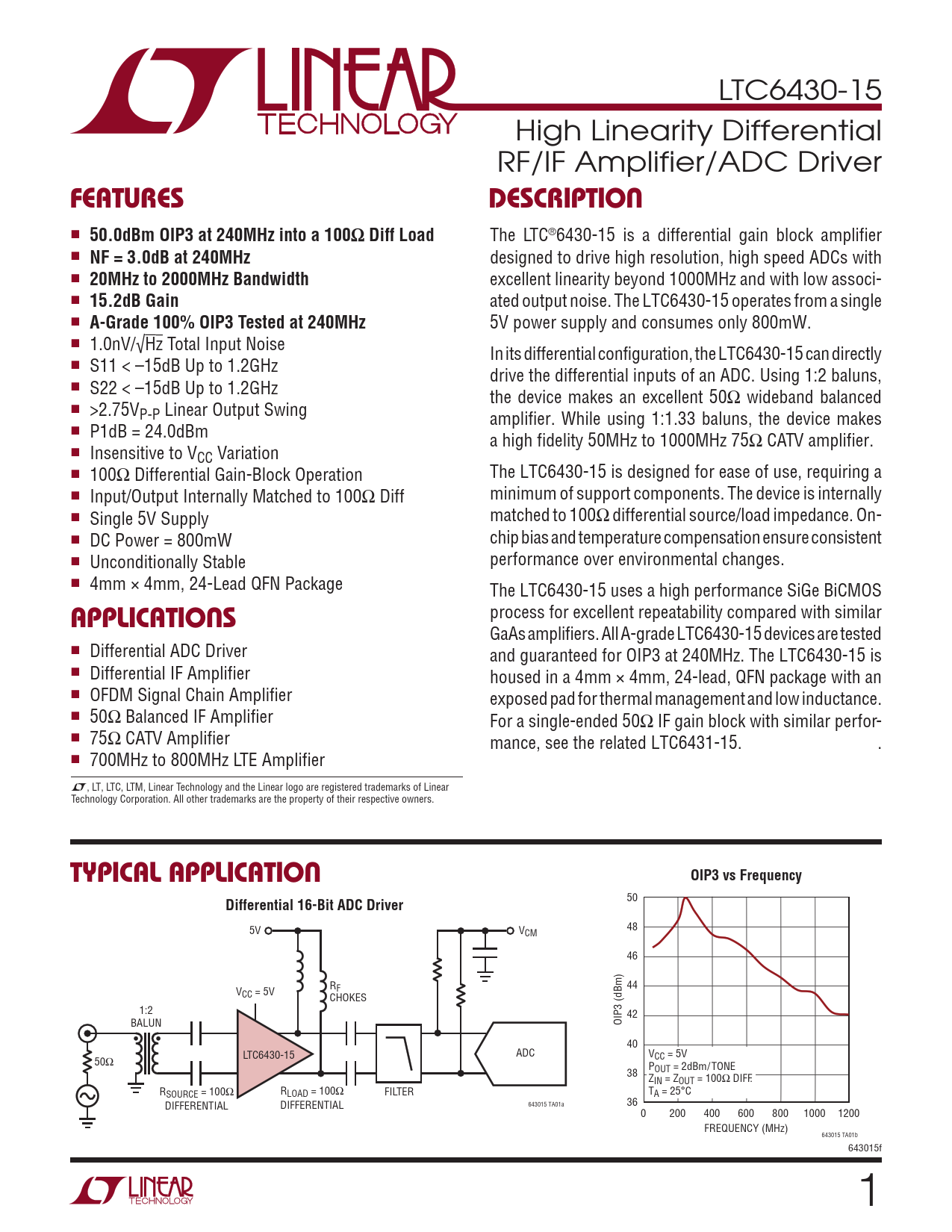

LTC6430-15 High Linearity Differential RF/IF Amplifier/ADC Driver
FeaTures DescripTion
n
50.0dBm OIP3 at 240MHz into a 100Ω Diff Load
The LTC®6430-15 is a differential gain block amplifier n
NF = 3.0dB at 240MHz
designed to drive high resolution, high speed ADCs with n
20MHz to 2000MHz Bandwidth
excellent linearity beyond 1000MHz and with low associ- n
15.2dB Gain
ated output noise. The LTC6430-15 operates from a single n
A-Grade 100% OIP3 Tested at 240MHz
5V power supply and consumes only 800mW. n 1.0nV/√Hz Total Input Noise In its differential configuration, the LTC6430-15 can directly n S11 < –15dB Up to 1.2GHz drive the differential inputs of an ADC. Using 1:2 baluns, n S22 < –15dB Up to 1.2GHz the device makes an excellent 50Ω wideband balanced n >2.75VP-P Linear Output Swing amplifier. While using 1:1.33 baluns, the device makes n P1dB = 24.0dBm a high fidelity 50MHz to 1000MHz 75Ω CATV amplifier. n Insensitive to VCC Variation n 100Ω Differential Gain-Block Operation The LTC6430-15 is designed for ease of use, requiring a n Input/Output Internally Matched to 100Ω Diff minimum of support components. The device is internally n Single 5V Supply matched to 100Ω differential source/load impedance. On- n DC Power = 800mW chip bias and temperature compensation ensure consistent n Unconditionally Stable performance over environmental changes. n 4mm × 4mm, 24-Lead QFN Package The LTC6430-15 uses a high performance SiGe BiCMOS process for excellent repeatability compared with similar
