Datasheet LTC6405 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | 2.7GHz, 5V, Low Noise, Rail-to-Rail Input Differential Amplifier/Driver |
| Pages / Page | 26 / 2 — absolute MaxiMuM ratings (Note 1). pin conFiguration. orDer inForMation. … |
| File Format / Size | PDF / 447 Kb |
| Document Language | English |

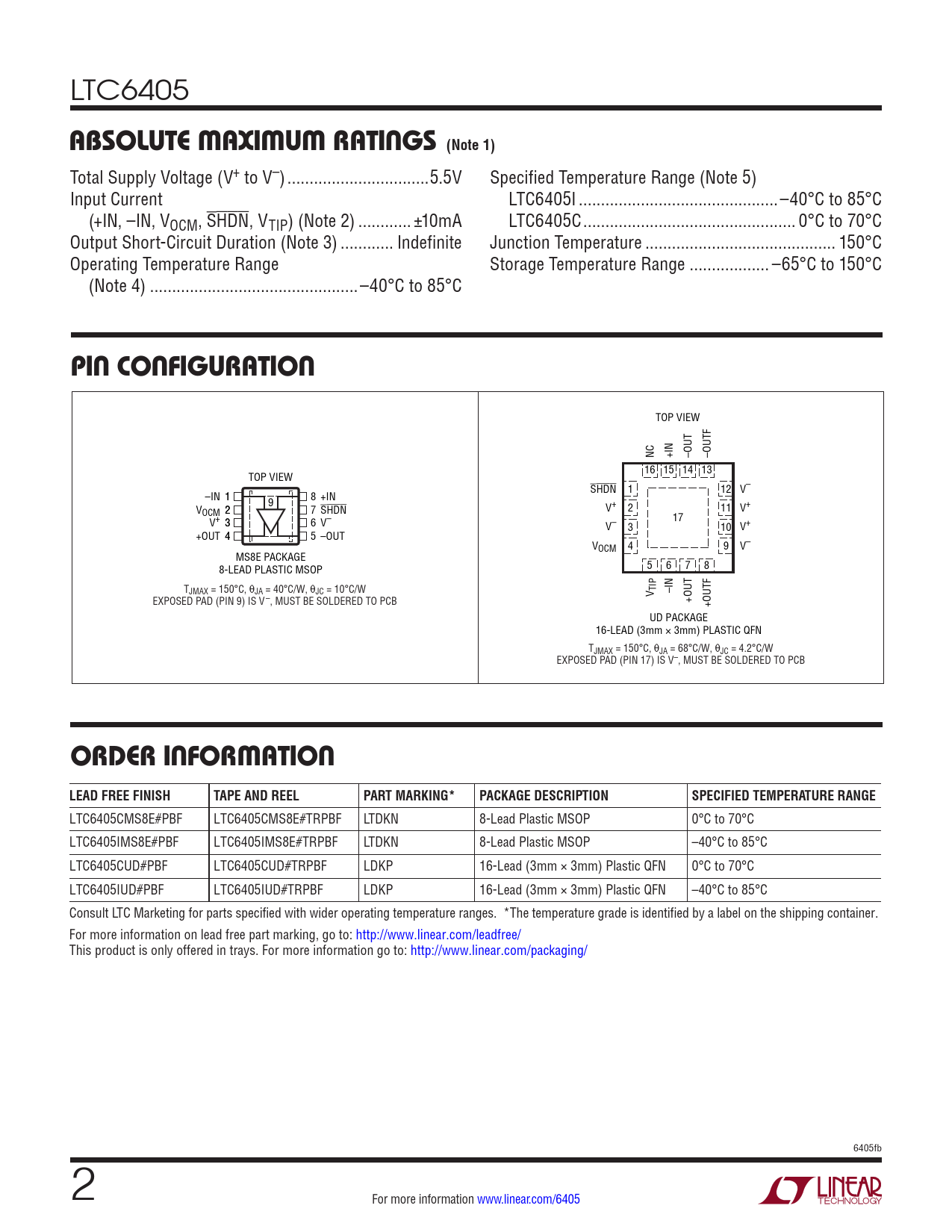

absolute MaxiMuM ratings (Note 1). pin conFiguration. orDer inForMation. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Model Line for this Datasheet
Text Version of Document
LTC6405
absolute MaxiMuM ratings (Note 1)
Total Supply Voltage (V+ to V–) ..5.5V Specified Temperature Range (Note 5) Input Current LTC6405I ...–40°C to 85°C (+IN, –IN, VOCM, SHDN, VTIP) (Note 2) ..±10mA LTC6405C .. 0°C to 70°C Output Short-Circuit Duration (Note 3) .. Indefinite Junction Temperature ... 150°C Operating Temperature Range Storage Temperature Range .. –65°C to 150°C (Note 4) ...–40°C to 85°C
pin conFiguration
TOP VIEW NC +IN –OUT –OUTF 16 15 14 13 TOP VIEW SHDN 1 12 V– –IN 1 8 +IN 9 VOCM 2 7 SHDN V+ 2 11 V+ V+ 3 6 V– 17 V– 3 10 V+ +OUT 4 5 –OUT VOCM 4 9 V– MS8E PACKAGE 8-LEAD PLASTIC MSOP 5 6 7 8 TJMAX = 150°C, θJA = 40°C/W, θJC = 10°C/W V TIP –IN EXPOSED PAD (PIN 9) IS V–, MUST BE SOLDERED TO PCB +OUT +OUTF UD PACKAGE 16-LEAD (3mm × 3mm) PLASTIC QFN TJMAX = 150°C, θJA = 68°C/W, θJC = 4.2°C/W EXPOSED PAD (PIN 17) IS V–, MUST BE SOLDERED TO PCB
orDer inForMation LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC6405CMS8E#PBF LTC6405CMS8E#TRPBF LTDKN 8-Lead Plastic MSOP 0°C to 70°C LTC6405IMS8E#PBF LTC6405IMS8E#TRPBF LTDKN 8-Lead Plastic MSOP –40°C to 85°C LTC6405CUD#PBF LTC6405CUD#TRPBF LDKP 16-Lead (3mm × 3mm) Plastic QFN 0°C to 70°C LTC6405IUD#PBF LTC6405IUD#TRPBF LDKP 16-Lead (3mm × 3mm) Plastic QFN –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ This product is only offered in trays. For more information go to: http://www.linear.com/packaging/ 6405fb 2 For more information www.linear.com/6405
