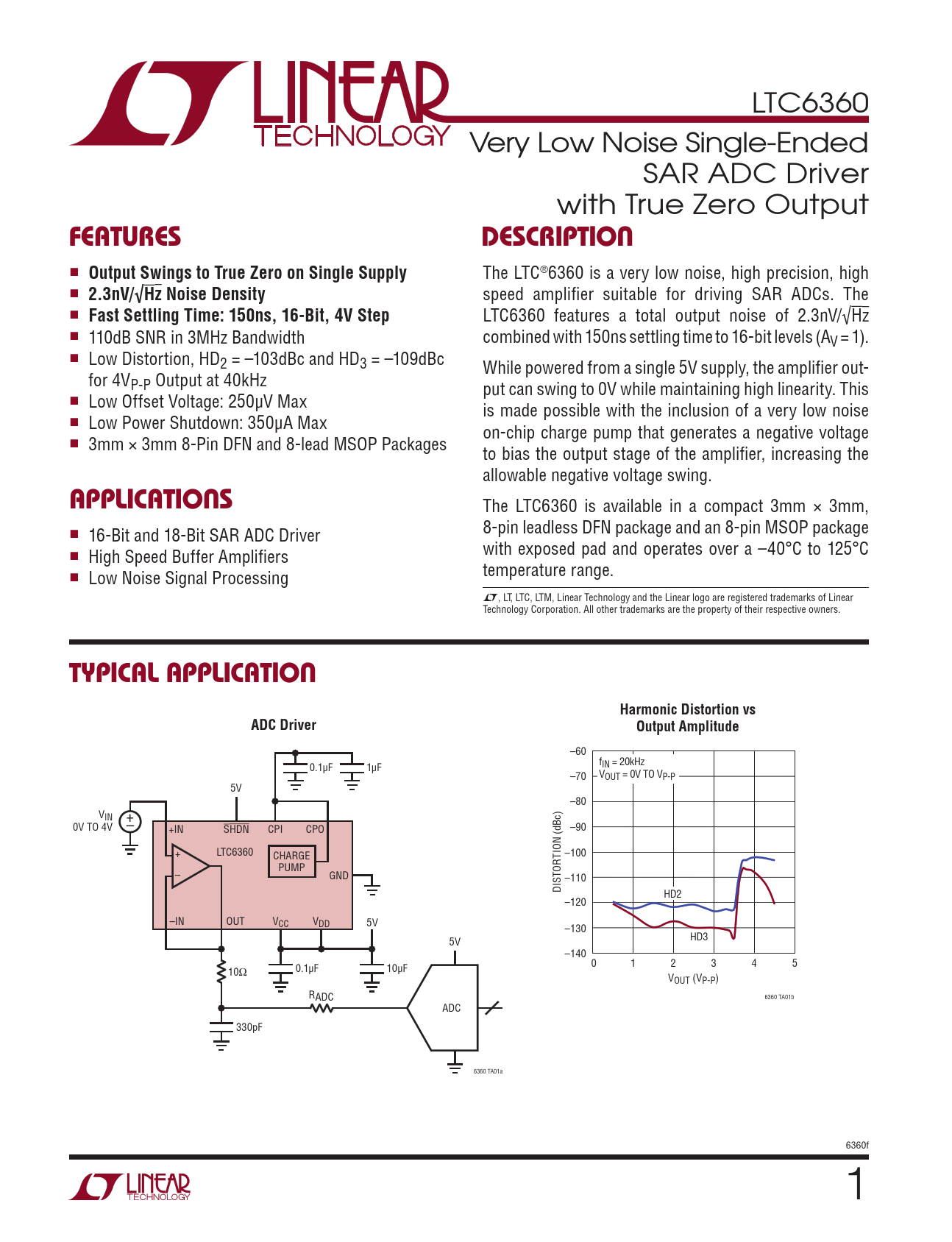

LTC6360 Very Low Noise Single-Ended SAR ADC Driver with True Zero Output
FeaTures DescripTion
n
Output Swings to True Zero on Single Supply
The LTC®6360 is a very low noise, high precision, high n
2.3nV/√Hz Noise Density
speed amplifier suitable for driving SAR ADCs. The n
Fast Settling Time: 150ns, 16-Bit, 4V Step
LTC6360 features a total output noise of 2.3nV/√Hz n 110dB SNR in 3MHz Bandwidth combined with 150ns settling time to 16-bit levels (AV = 1). n Low Distortion, HD2 = –103dBc and HD3 = –109dBc While powered from a single 5V supply, the amplifier out- for 4VP-P Output at 40kHz put can swing to 0V while maintaining high linearity. This n Low Offset Voltage: 250µV Max is made possible with the inclusion of a very low noise n Low Power Shutdown: 350µA Max on-chip charge pump that generates a negative voltage n 3mm × 3mm 8-Pin DFN and 8-lead MSOP Packages to bias the output stage of the amplifier, increasing the al owable negative voltage swing.
applicaTions
The LTC6360 is available in a compact 3mm × 3mm, 8-pin leadless DFN package and an 8-pin MSOP package n 16-Bit and 18-Bit SAR ADC Driver with exposed pad and operates over a –40°C to 125°C n High Speed Buffer Amplifiers temperature range. n Low Noise Signal Processing L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners.
Typical applicaTion Harmonic Distortion vs ADC Driver Output Amplitude
–60 fIN = 20kHz 0.1µF 1µF –70 VOUT = 0V TO VP-P 5V –80 VIN + 0V TO 4V – –90 +IN SHDN CPI CPO + LTC6360 –100 CHARGE PUMP – GND –110 DISTORTION (dBc) HD2 –120 –IN OUT VCC VDD 5V –130 HD3 5V –140 0 1 2 3 4 5 10Ω 0.1µF 10µF VOUT (VP-P) RADC 6360 TA01b ADC 330pF 6360 TA01a 6360f 1 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order InFormation Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuit Operation Applications Information Package Description Typical Application Related Parts
