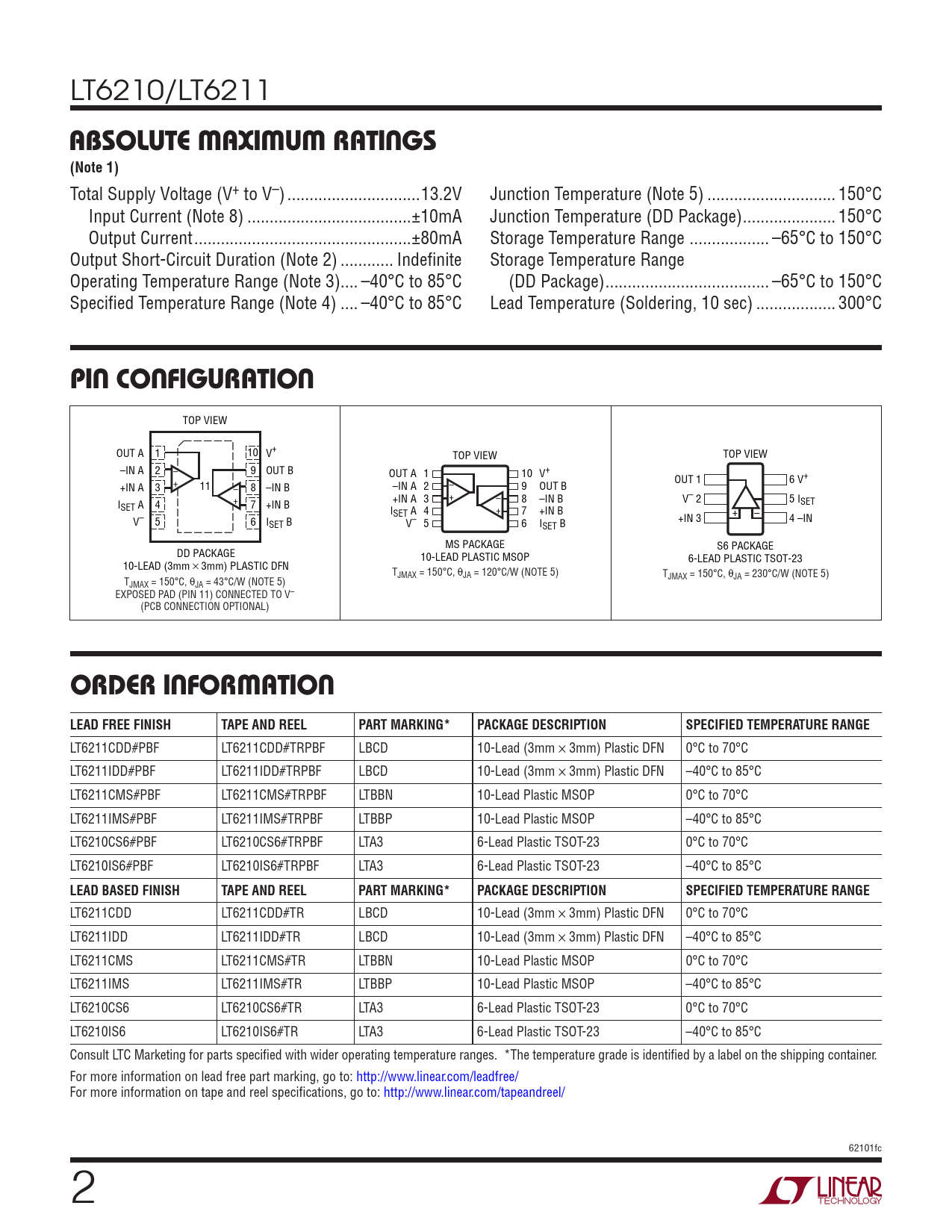

LT6210/LT6211
absoluTe MaxiMuM raTings (Note 1)
Total Supply Voltage (V+ to V–) ..13.2V Junction Temperature (Note 5) ... 150°C Input Current (Note 8) ...±10mA Junction Temperature (DD Package) ... 150°C Output Current ...±80mA Storage Temperature Range .. –65°C to 150°C Output Short-Circuit Duration (Note 2) .. Indefinite Storage Temperature Range Operating Temperature Range (Note 3).. –40°C to 85°C (DD Package) ... –65°C to 150°C Specified Temperature Range (Note 4) .. –40°C to 85°C Lead Temperature (Soldering, 10 sec) .. 300°C
pin conFiguraTion
TOP VIEW OUT A 1 10 V+ TOP VIEW TOP VIEW –IN A 2 – 9 OUT B OUT A 1 10 V+ OUT 1 6 V+ +IN A 3 + 11 – 8 –IN B –IN A 2 – 9 OUT B + I + +IN A 3 – 8 –IN B V– 2 5 ISET SET A 4 7 +IN B ISET A 4 + 7 +IN B + – V– 5 6 I +IN 3 4 –IN SET B V– 5 6 ISET B MS PACKAGE S6 PACKAGE DD PACKAGE 10-LEAD PLASTIC MSOP 6-LEAD PLASTIC TSOT-23 10-LEAD (3mm × 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 120°C/W (NOTE 5) T T JMAX = 150°C, θJA = 230°C/W (NOTE 5) JMAX = 150°C, θJA = 43°C/W (NOTE 5) EXPOSED PAD (PIN 11) CONNECTED TO V– (PCB CONNECTION OPTIONAL)
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6211CDD#PBF LT6211CDD#TRPBF LBCD 10-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LT6211IDD#PBF LT6211IDD#TRPBF LBCD 10-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LT6211CMS#PBF LT6211CMS#TRPBF LTBBN 10-Lead Plastic MSOP 0°C to 70°C LT6211IMS#PBF LT6211IMS#TRPBF LTBBP 10-Lead Plastic MSOP –40°C to 85°C LT6210CS6#PBF LT6210CS6#TRPBF LTA3 6-Lead Plastic TSOT-23 0°C to 70°C LT6210IS6#PBF LT6210IS6#TRPBF LTA3 6-Lead Plastic TSOT-23 –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6211CDD LT6211CDD#TR LBCD 10-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LT6211IDD LT6211IDD#TR LBCD 10-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LT6211CMS LT6211CMS#TR LTBBN 10-Lead Plastic MSOP 0°C to 70°C LT6211IMS LT6211IMS#TR LTBBP 10-Lead Plastic MSOP –40°C to 85°C LT6210CS6 LT6210CS6#TR LTA3 6-Lead Plastic TSOT-23 0°C to 70°C LT6210IS6 LT6210IS6#TR LTA3 6-Lead Plastic TSOT-23 –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 62101fc 2 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical AC Performance Typical Performance Characteristics Applications Information Typical Applications Simplified Schematic Package Description Revision History Typical Application Related Parts
