Datasheet LTC6252, LTC6253, LTC6254 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 720MHz, 3.5mA Quad Power Efficient Rail-to-Rail I/O Op Amps |
| Pages / Page | 26 / 4 — ELECTRICAL CHARACTERISTICS. (VS = 5V) The. denotes the specifications … |
| File Format / Size | PDF / 968 Kb |
| Document Language | English |

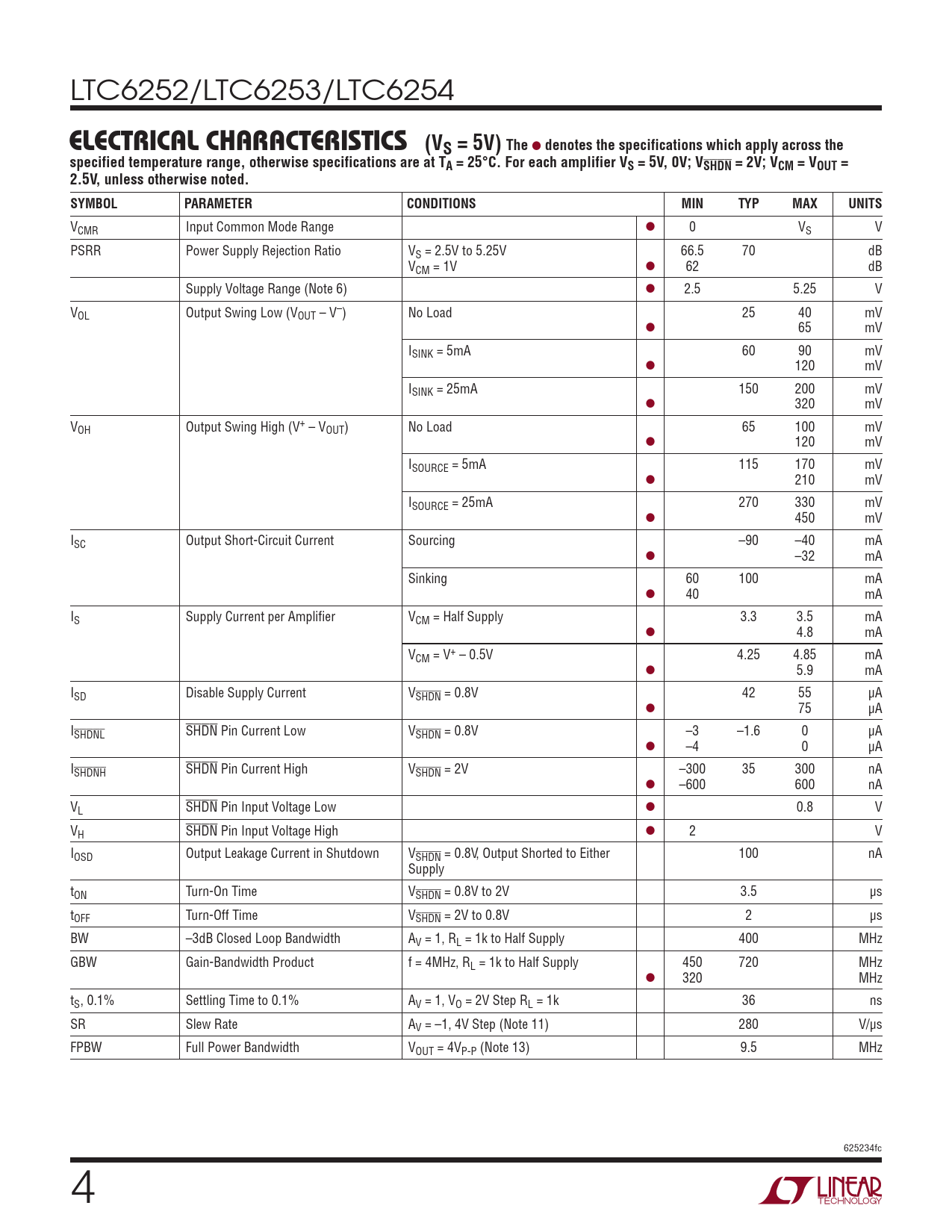

ELECTRICAL CHARACTERISTICS. (VS = 5V) The. denotes the specifications which apply across the
Model Line for this Datasheet
- LTC6252CS6#PBF LTC6252CS6#TRMPBF LTC6252CS6#TRPBF LTC6252HS6#PBF LTC6252HS6#TRMPBF LTC6252HS6#TRPBF LTC6252IS6#PBF LTC6252IS6#TRMPBF LTC6252IS6#TRPBF
- LTC6253CDC#PBF LTC6253CDC#TRMPBF LTC6253CDC#TRPBF LTC6253CMS#PBF LTC6253CMS#TRPBF LTC6253CMS8#PBF LTC6253CMS8#TRPBF LTC6253CTS8#PBF LTC6253CTS8#TRMPBF LTC6253CTS8#TRPBF LTC6253HMS-7#TRPBF LTC6253HMS8#PBF LTC6253HMS8#TRPBF LTC6253HTS8#PBF LTC6253HTS8#TRMPBF LTC6253HTS8#TRPBF LTC6253IDC#PBF LTC6253IDC#TRMPBF LTC6253IDC#TRPBF LTC6253IMS#PBF LTC6253IMS#TRPBF LTC6253IMS-7#TRPBF LTC6253IMS8#PBF LTC6253IMS8#TRPBF LTC6253ITS8#PBF LTC6253ITS8#TRMPBF LTC6253ITS8#TRPBF
Text Version of Document
LTC6252/LTC6253/LTC6254
ELECTRICAL CHARACTERISTICS (VS = 5V) The
l
denotes the specifications which apply across the specified temperature range, otherwise specifications are at TA = 25°C. For each amplifier VS = 5V, 0V; VSHDN = 2V; VCM = VOUT = 2.5V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VCMR Input Common Mode Range l 0 VS V PSRR Power Supply Rejection Ratio VS = 2.5V to 5.25V 66.5 70 dB VCM = 1V l 62 dB Supply Voltage Range (Note 6) l 2.5 5.25 V VOL Output Swing Low (VOUT – V–) No Load 25 40 mV l 65 mV ISINK = 5mA 60 90 mV l 120 mV ISINK = 25mA 150 200 mV l 320 mV VOH Output Swing High (V+ – VOUT) No Load 65 100 mV l 120 mV ISOURCE = 5mA 115 170 mV l 210 mV ISOURCE = 25mA 270 330 mV l 450 mV ISC Output Short-Circuit Current Sourcing –90 –40 mA l –32 mA Sinking 60 100 mA l 40 mA IS Supply Current per Amplifier VCM = Half Supply 3.3 3.5 mA l 4.8 mA VCM = V+ – 0.5V 4.25 4.85 mA l 5.9 mA ISD Disable Supply Current VSHDN = 0.8V 42 55 µA l 75 µA ISHDNL SHDN Pin Current Low VSHDN = 0.8V –3 –1.6 0 µA l –4 0 µA ISHDNH SHDN Pin Current High VSHDN = 2V –300 35 300 nA l –600 600 nA VL SHDN Pin Input Voltage Low l 0.8 V VH SHDN Pin Input Voltage High l 2 V IOSD Output Leakage Current in Shutdown VSHDN = 0.8V, Output Shorted to Either 100 nA Supply tON Turn-On Time VSHDN = 0.8V to 2V 3.5 µs tOFF Turn-Off Time VSHDN = 2V to 0.8V 2 µs BW –3dB Closed Loop Bandwidth AV = 1, RL = 1k to Half Supply 400 MHz GBW Gain-Bandwidth Product f = 4MHz, RL = 1k to Half Supply 450 720 MHz l 320 MHz tS, 0.1% Settling Time to 0.1% AV = 1, VO = 2V Step RL = 1k 36 ns SR Slew Rate AV = –1, 4V Step (Note 11) 280 V/µs FPBW Full Power Bandwidth VOUT = 4VP-P (Note 13) 9.5 MHz 625234fc 4 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
