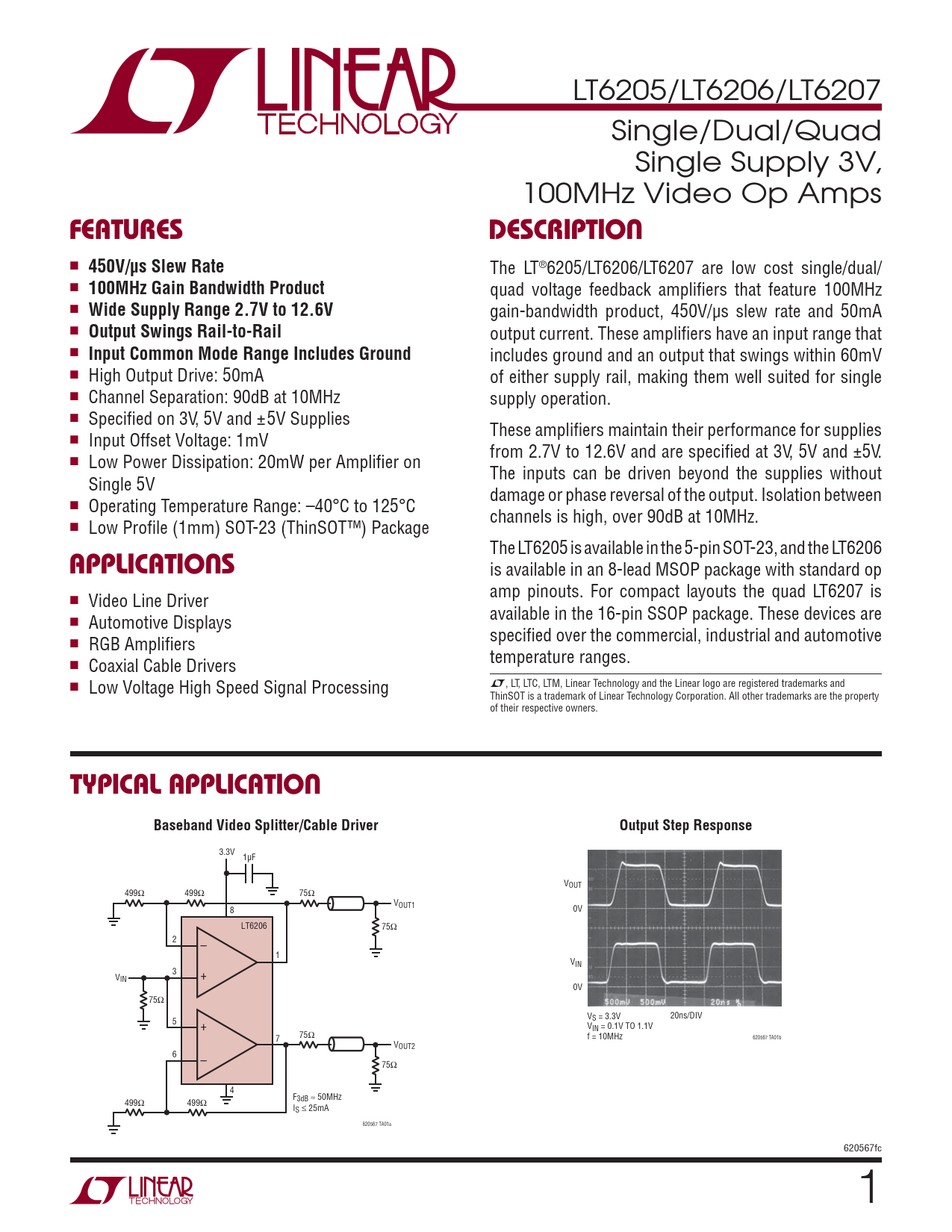

LT6205/LT6206/LT6207 Single/Dual/Quad Single Supply 3V, 100MHz Video Op Amps
FEATURES DESCRIPTION
n
450V/μs Slew Rate
The LT®6205/LT6206/LT6207 are low cost single/dual/ n
100MHz Gain Bandwidth Product
quad voltage feedback amplifi ers that feature 100MHz n
Wide Supply Range 2.7V to 12.6V
gain-bandwidth product, 450V/μs slew rate and 50mA n
Output Swings Rail-to-Rail
output current. These amplifi ers have an input range that n
Input Common Mode Range Includes Ground
includes ground and an output that swings within 60mV n High Output Drive: 50mA of either supply rail, making them well suited for single n Channel Separation: 90dB at 10MHz supply operation. n Specifi ed on 3V, 5V and ±5V Supplies These amplifi ers maintain their performance for supplies n Input Offset Voltage: 1mV from 2.7V to 12.6V and are specifi ed at 3V, 5V and ±5V. n Low Power Dissipation: 20mW per Amplifi er on The inputs can be driven beyond the supplies without Single 5V damage or phase reversal of the output. Isolation between n Operating Temperature Range: –40°C to 125°C channels is high, over 90dB at 10MHz. n Low Profi le (1mm) SOT-23 (ThinSOT™) Package The LT6205 is available in the 5-pin SOT-23, and the LT6206
APPLICATIONS
is available in an 8-lead MSOP package with standard op amp pinouts. For compact layouts the quad LT6207 is n Video Line Driver available in the 16-pin SSOP package. These devices are n Automotive Displays specifi ed over the commercial, industrial and automotive n RGB Amplifi ers temperature ranges. n Coaxial Cable Drivers n Low Voltage High Speed Signal Processing L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and ThinSOT is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.
TYPICAL APPLICATION Baseband Video Splitter/Cable Driver Output Step Response
3.3V 1μF VOUT 499Ω 499Ω 75Ω VOUT1 8 0V LT6206 75Ω 2 – 1 VIN 3 VIN + 0V 75Ω V 20ns/DIV 5 S = 3.3V + VIN = 0.1V TO 1.1V 75Ω 7 f = 10MHz 620567 TA01b VOUT2 6 – 75Ω 4 F 499Ω 499Ω 3dB z 50MHz IS b 25mA 620567 TA01a 620567fc 1 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION TYPICAL APPLICATION PACKAGE DESCRIPTION REVISION HISTORY TYPICAL APPLICATION RELATED PARTS
