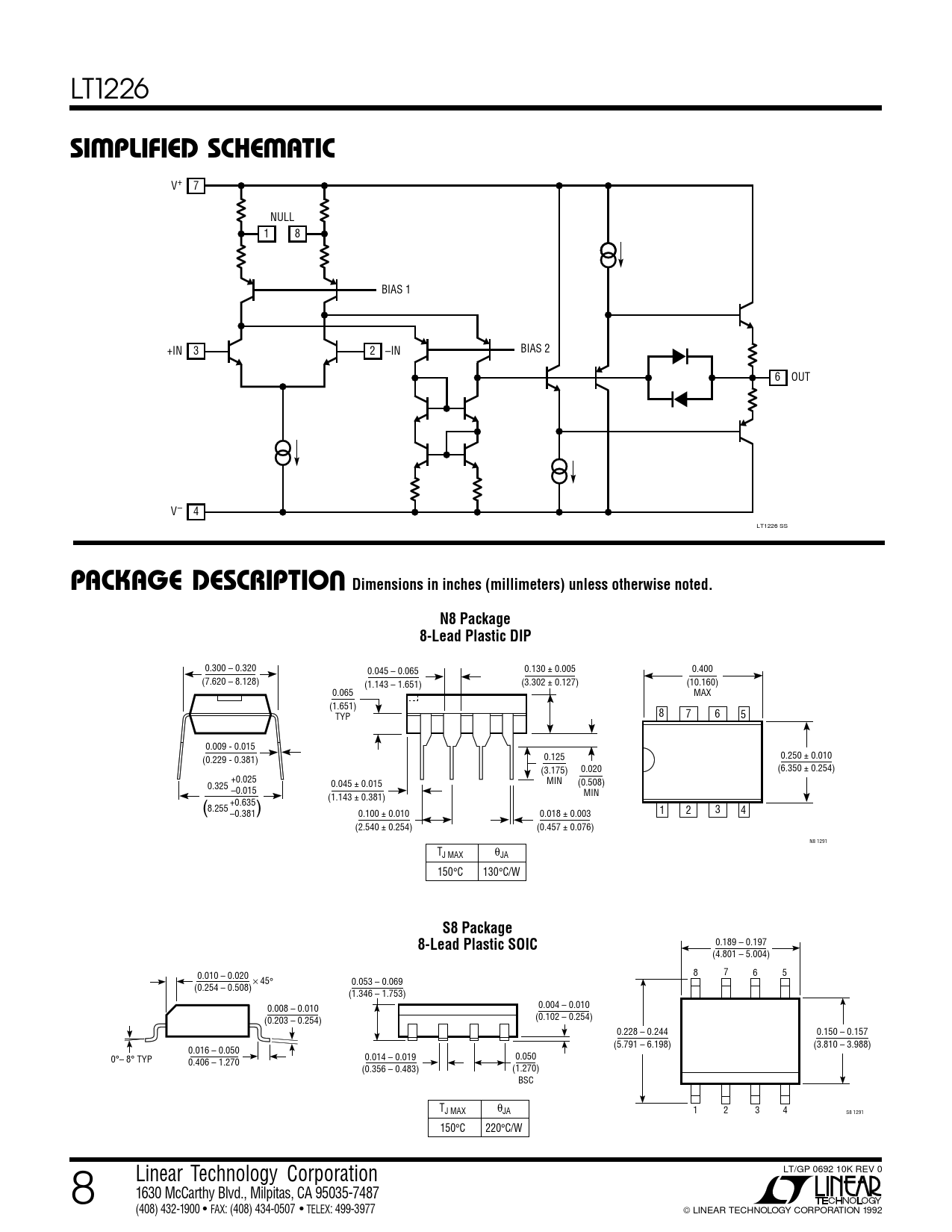

LT1226
W W I S PLI I F ED SCHE ATIC
V+ 7 NULL 1 8 BIAS 1 +IN 3 2 –IN BIAS 2 6 OUT V– 4 LT1226 SS
U PACKAGE DESCRIPTIO Dimensions in inches (millimeters) unless otherwise noted. N8 Package 8-Lead Plastic DIP
0.300 – 0.320 0.130 ± 0.005 0.400 0.045 – 0.065 (7.620 – 8.128) (3.302 ± 0.127) (10.160) (1.143 – 1.651) 0.065 MAX (1.651) 8 7 6 TYP 5 0.009 - 0.015 0.125 0.250 ± 0.010 (0.229 - 0.381) (3.175) 0.020 (6.350 ± 0.254) +0.025 MIN 0.325 0.045 ± 0.015 (0.508) –0.015 MIN (1.143 ± 0.381) +0.635 8.255 ( ) 1 2 3 4 –0.381 0.100 ± 0.010 0.018 ± 0.003 (2.540 ± 0.254) (0.457 ± 0.076) N8 1291 TJ MAX θJA 150°C 130°C/W
S8 Package 8-Lead Plastic SOIC
0.189 – 0.197 (4.801 – 5.004) 8 7 6 5 0.010 – 0.020 × 45° 0.053 – 0.069 (0.254 – 0.508) (1.346 – 1.753) 0.008 – 0.010 0.004 – 0.010 (0.203 – 0.254) (0.102 – 0.254) 0.228 – 0.244 0.150 – 0.157 (5.791 – 6.198) (3.810 – 3.988) 0.016 – 0.050 0°– 8° TYP 0.014 – 0.019 0.050 0.406 – 1.270 (0.356 – 0.483) (1.270) BSC TJ MAX θJA 1 2 3 4 S8 1291 150°C 220°C/W LT/GP 0692 10K REV 0 8 Linear Technology Corporation 1630 McCarthy Blvd., Milpitas, CA 95035-7487 (408) 432-1900 ● FAX: (408) 434-0507 ● TELEX: 499-3977 LINEAR TECHNOLOGY CORPORATION 1992
