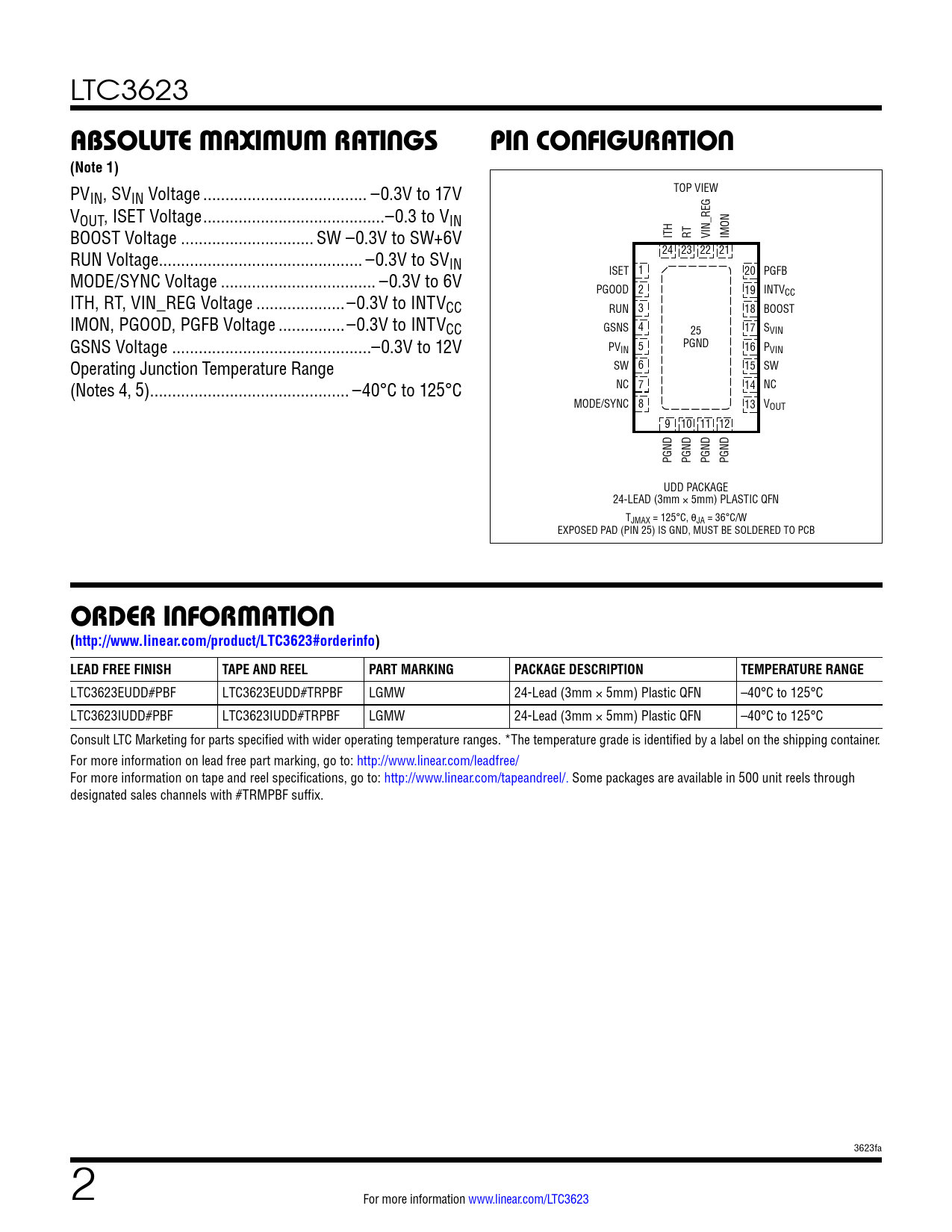

LTC3623
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
PV TOP VIEW IN, SVIN Voltage ... –0.3V to 17V VOUT, ISET Voltage ...–0.3 to VIN BOOST Voltage .. SW –0.3V to SW+6V ITH RT VIN_REG IMON RUN Voltage.. –0.3V to SV 24 23 22 21 IN MODE/SYNC Voltage ... –0.3V to 6V ISET 1 20 PGFB PGOOD 2 19 INTV ITH, RT, VIN_REG Voltage ..–0.3V to INTV CC CC RUN 3 18 BOOST IMON, PGOOD, PGFB Voltage ...–0.3V to INTVCC GSNS 4 25 17 SVIN GSNS Voltage ...–0.3V to 12V PGND PVIN 5 16 PVIN Operating Junction Temperature Range SW 6 15 SW (Notes 4, 5) ... –40°C to 125°C NC 7 14 NC MODE/SYNC 8 13 VOUT 9 10 11 12 PGND PGND PGND PGND UDD PACKAGE 24-LEAD (3mm × 5mm) PLASTIC QFN TJMAX = 125°C, θJA = 36°C/W EXPOSED PAD (PIN 25) IS GND, MUST BE SOLDERED TO PCB
orDer inForMaTion (http://www.linear.com/product/LTC3623#orderinfo) LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3623EUDD#PBF LTC3623EUDD#TRPBF LGMW 24-Lead (3mm × 5mm) Plastic QFN –40°C to 125°C LTC3623IUDD#PBF LTC3623IUDD#TRPBF LGMW 24-Lead (3mm × 5mm) Plastic QFN –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 3623fa 2 For more information www.linear.com/LTC3623
