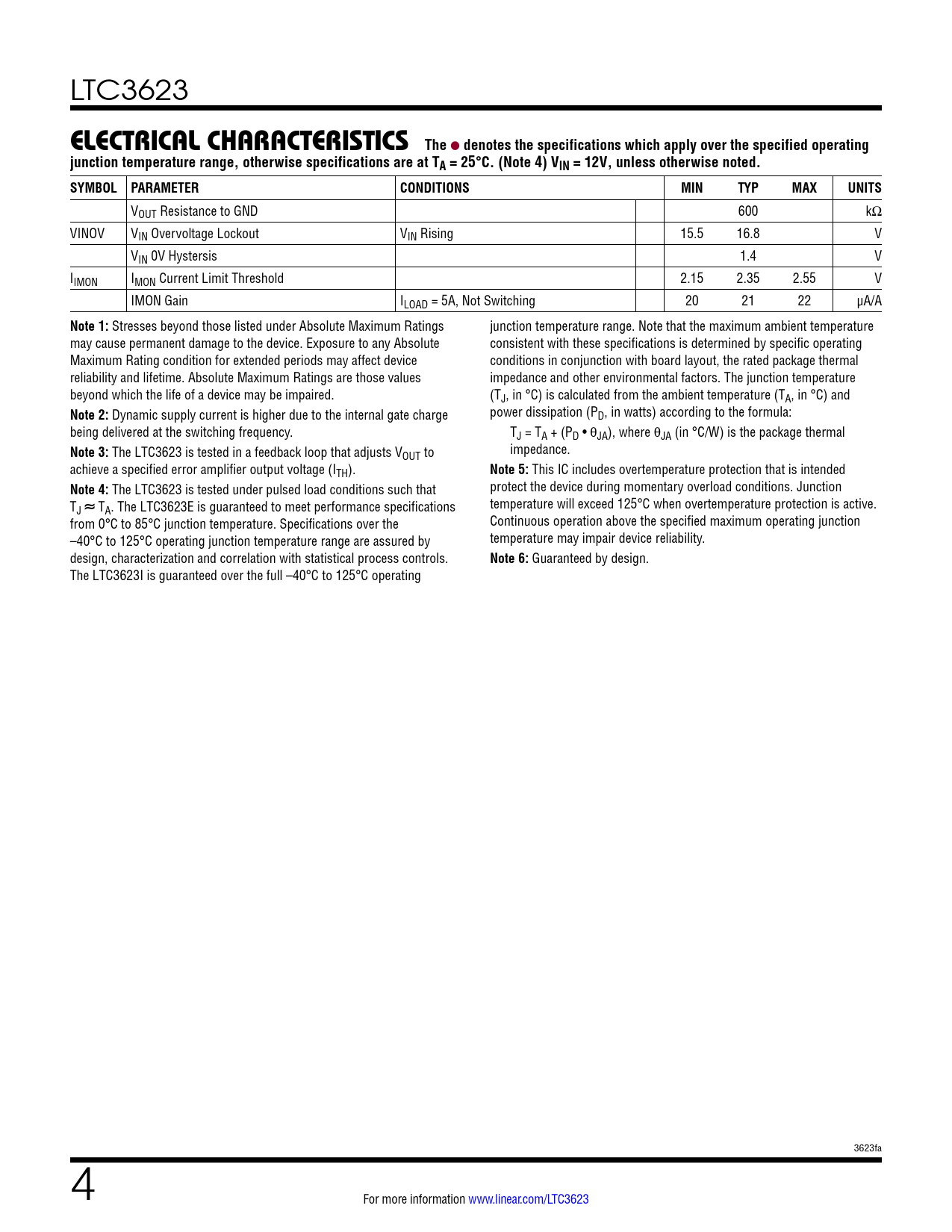

LTC3623
elecTrical characTerisTics The
l
denotes the specifications which apply over the specified operating junction temperature range, otherwise specifications are at TA = 25°C. (Note 4) VIN = 12V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOUT Resistance to GND 600 kΩ VINOV VIN Overvoltage Lockout VIN Rising 15.5 16.8 V VIN 0V Hystersis 1.4 V IIMON IMON Current Limit Threshold 2.15 2.35 2.55 V IMON Gain ILOAD = 5A, Not Switching 20 21 22 µA/A
